Xerox DocuColor 12/DCCS50

1/05
4-97
DocuColor 12/DCCS50
REP 6.7.2
Repairs and Adjustments
Reissue

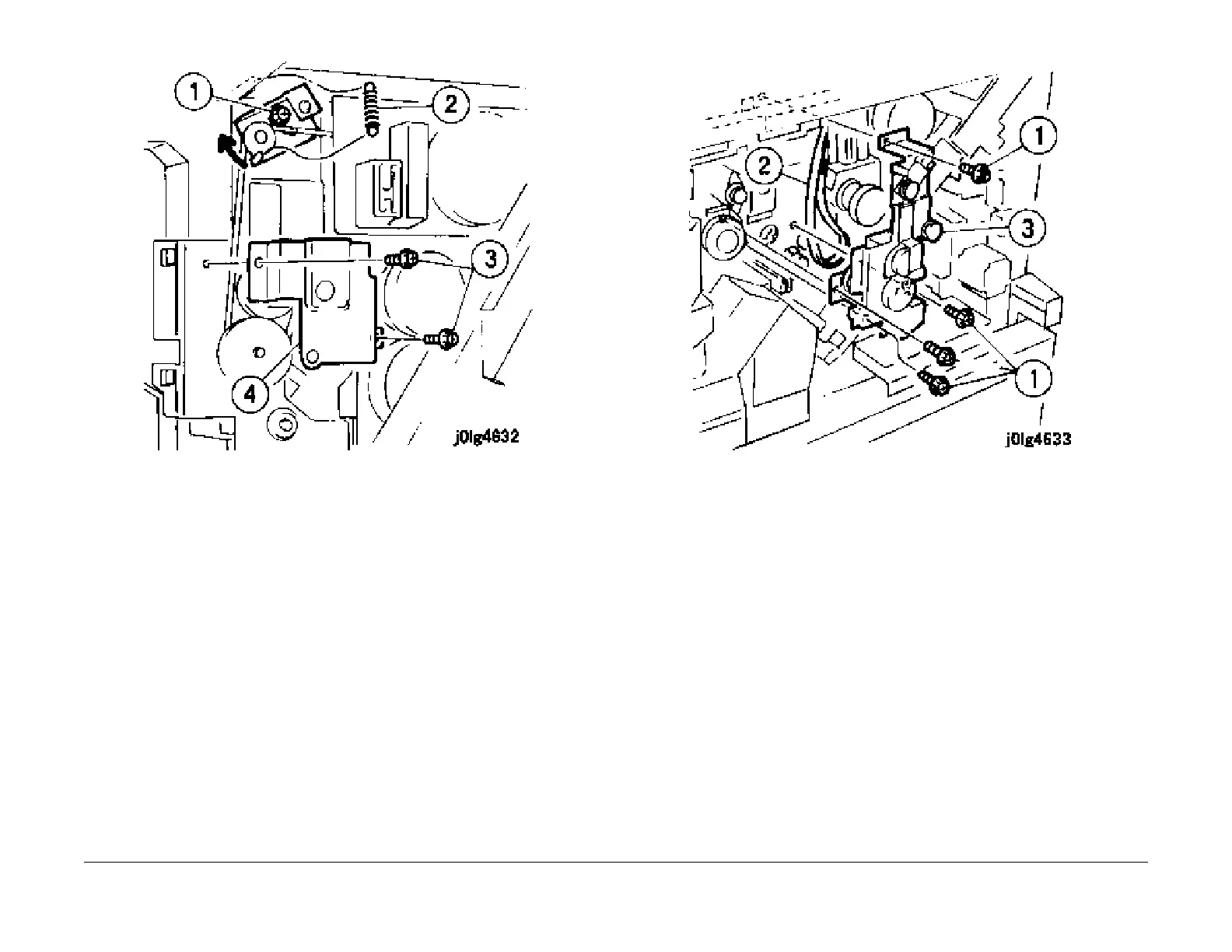

Figure 3 Remove the Bracket
7. Remove the Development/BP0 Drive and IBT Cleaner Retract (Figure 4
).
1. Remove the screws (4).
2. Remove the belt.
3. Remove the Development/BP0 Drive and IBT Cleaner Retract.
Figure 4 Remove the Drives
8. Remove the Trickle Auger (F
igure 5).
1. Remove the Trickle Auger.
