1/05
5-230
DocuColor 12/DCCS50
PL 1.4
Reissue
Parts Lists

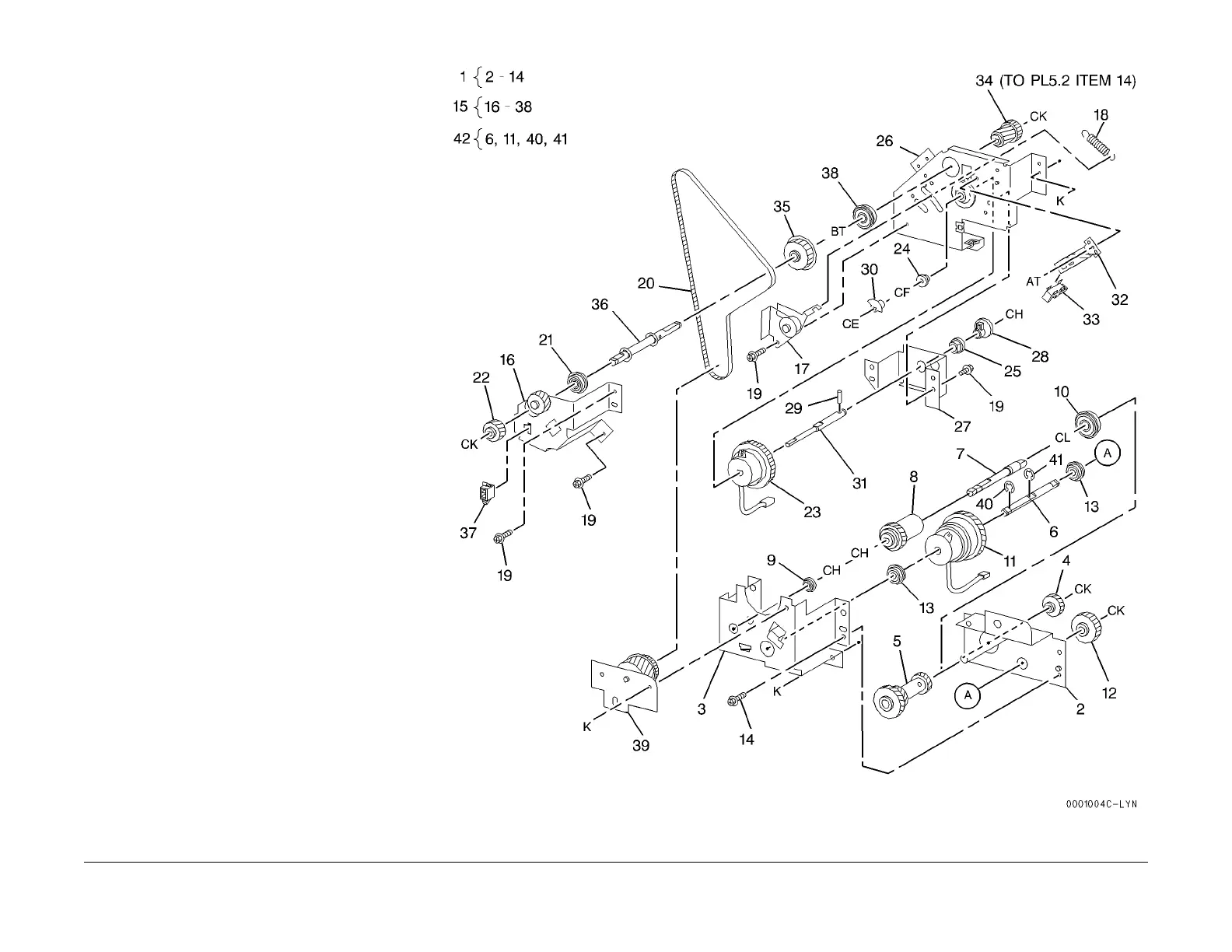

PL 1.4 2nd BTR/Oil Roll/Auger Drive
Item Part Description
1 600K85872 2nd BTR Drive Assembly (W/TAG
P33)
2 – Bracket (P/O PL 1.4 Item 1)
3 – Bracket (P/O PL 1.4 Item 1)
4 007E57660 Gear (16 ) (2nd BTR Roll )
5 007K84160 Gear
6 – Shaft (P/O PL 1.4 Item 42)
7 – Shaft (P/O PL 1.4 Item 1)
8 – Truque Limiter (P/O PL 1.4 Item 1)
9 – Bearing (P/O PL 1.4 Item 1)
10 – Bearing (P/O PL 1.4 Item 1)
11 – 2nd BTR Retract Clutch Assembly
(P/
O P
L 1.4 Item 42)
12 – Gear (28) (2nd BTR Retract)
13 – Bearing (P/O PL 1.4 Item 1)
14 – Screw (P/O PL 1.4 Item 1)
15 007K84265 Oil Roll/Auger Drive Assembly
16 007K84231 Auger Drive (23T) (Includes gear
and b
racket
)
17 007K84240 Tension Roll
18 – Spring (P/O PL 1.4 Item 15)
19 – Screw (P/O PL 1.4 Item 15)
20 423W57554 Belt (2nd BTR, Auger) (REP 1.4.1 )
21 – Bearing (P/O PL 1.4 Item 15)
22 007E49950 Gear
23 – Oil Roll Clutch (P/O PL 1.4 Item
15)
24 – Bearing (P/O PL 1.4 Item 15)
25 – Bearing (P/O PL 1.4 Item 15)
26 – Bracket (P/O PL 1.4 Item 15)
27 – Sensor Bracket (P/O PL 1.4 Item
15)
28 – Cam (P/O PL 1.4 Item 15)
29 – Pin (P/O PL 1.4 Item 15)
30 – Wheel (P/O PL 1.4 Item 15)
31 – Shaft (P/O PL 1.4 Item 15)
32 – Bracket (P/O PL 1.4 Item 15)
33 130E82190 Oil Roll Home Position Sensor
34 007E49940 Gear (Waste Toner Bottle Auger)
35 – Pulley (P/O PL 1.4 Item 15)
36 – Shaft (P/O PL 1.4 Item 15)
37 – Connector (P/O PL 1.4 Item 15)
38 – Bearing (P/O PL 1.4 Item 15)
39 007K84251 Gear Pulley
40 – E-Ring (P/O PL 1.4 Item 42)
41 – E-Ring (P/O PL 1.4 Item 42)
42 604K14830 2BTR Clutch Kit
