1/05
5-325
DocuColor 12/DCCS50
PL 13.7
Parts Lists
Reissue

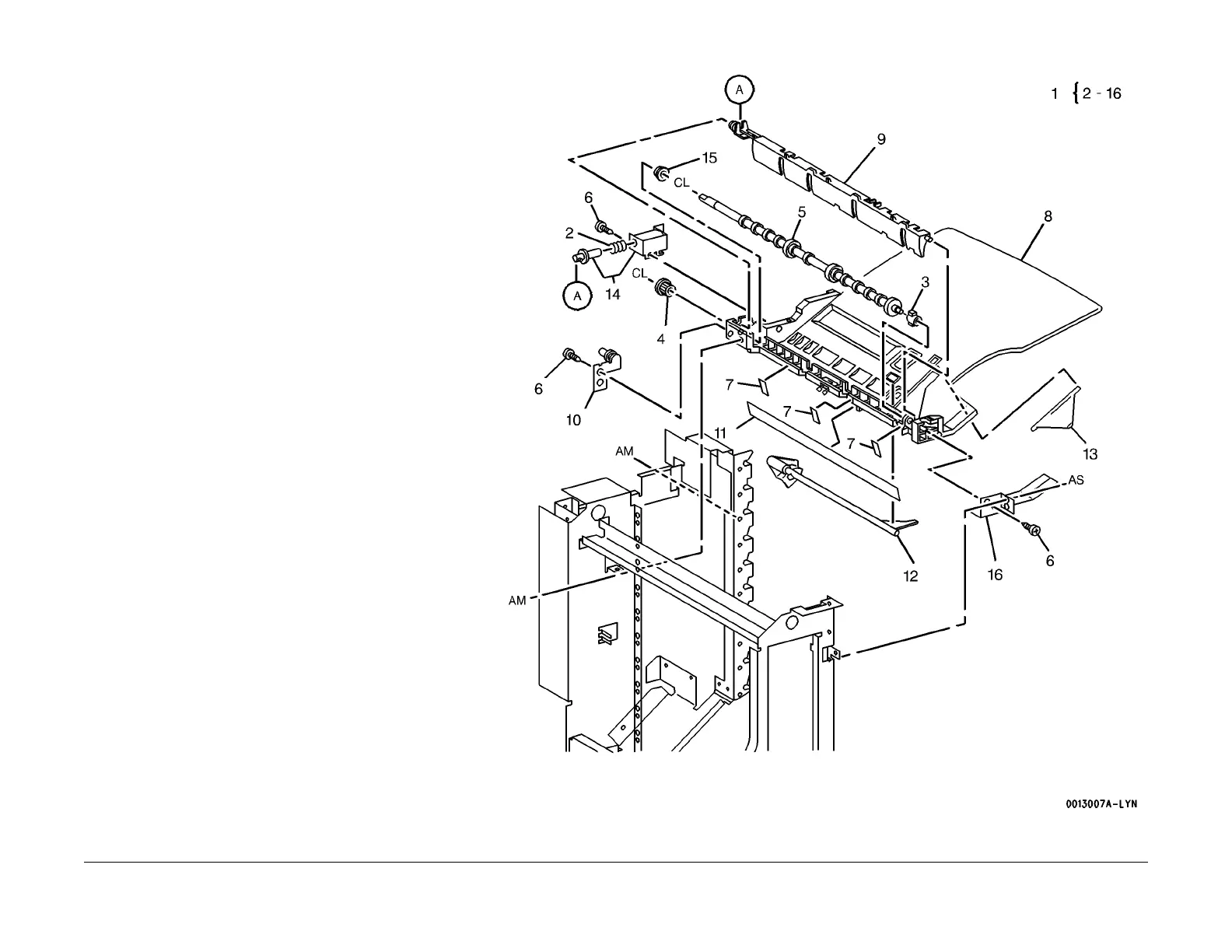

PL 13.7 Bin Tray 3/5/7/9
Item Part Description
1 050K36812 Bin Tray 3/5/7/9 Assembly (REP
13.6.1 )
2 009E641
40 Spring
3 013E89540 Bearing
4 020E21490 Pulley
5 022E83451 Roll
6 – Tapping Screw (M3 X 8) (P/O PL
13.
7 It
em 1)
7 038E88980 Paper Guide
8 050E88781 Bin Tray
9 050K33220 Gate
10 059K13261 Idler Roll
11 105E98450 Eliminator
12 120E13130 Actuator
13 120E17020 Actuator
14 121E83120 Gate Solenoid
15 413W77559 Bearing
16 830E32600 Support
