Xerox DocuColor 12/DCCS50 User Manual

1/05
8a-16
DocuColor 12/DCCS50
REP 2.7.5, REP 2.7.6
Reissue
High Capacity Feeder
Replacement
1. Reverse the above procedures to replace the HCF Assembly.
REP 2.7.6 HCF Elevator Motor
Parts List on PL 15.16
Removal
WARNING
To avoid electrical shock, switch-OFF the Main Power Switch and disconnect the Power
Cord.
1. Remove the HCF Rear Cover.
2. Remove the HCF Assembly (REP 2.7.
5).
3. Remove the HCF Elevator Motor (Figure 1).

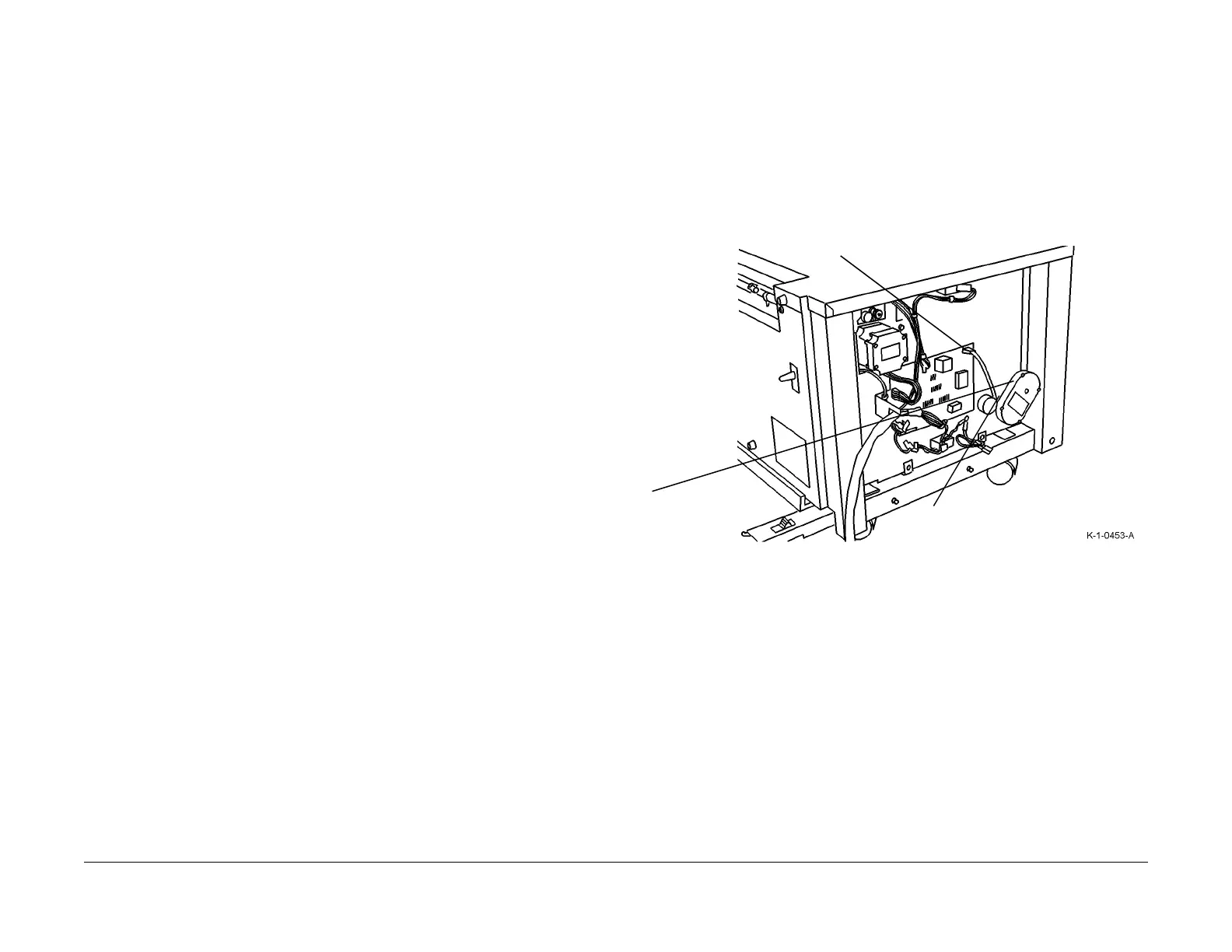

F
igure 1 Removing the HCF Elevator Motor
Replacement
1. Reverse the above procedures to replace the Elevator Motor.
3. Remove the
HCF Elevator
Motor
1. Disconnect P/J-845
2. Remove the Screws (2) from
the Motor.
