DocuColor 12/DCCS50
Edit Pad-to-IOT Mounting Kit Installation
Installation Instructions
Reissue
Edit Pad-to-IOT Mounting Kit Installation
These instructions provide the installation procedure for the optional Edit Pad-to-IOT Mounting
Kit, 98S4450.
Kit Contents
Procedure
1. Place the Edit Pad on a work surface with the bottom side facing up to allow for part
removal and installation.
2. Gently pry the Foot Pads loose from the Edit Pad (Figu
re 1).

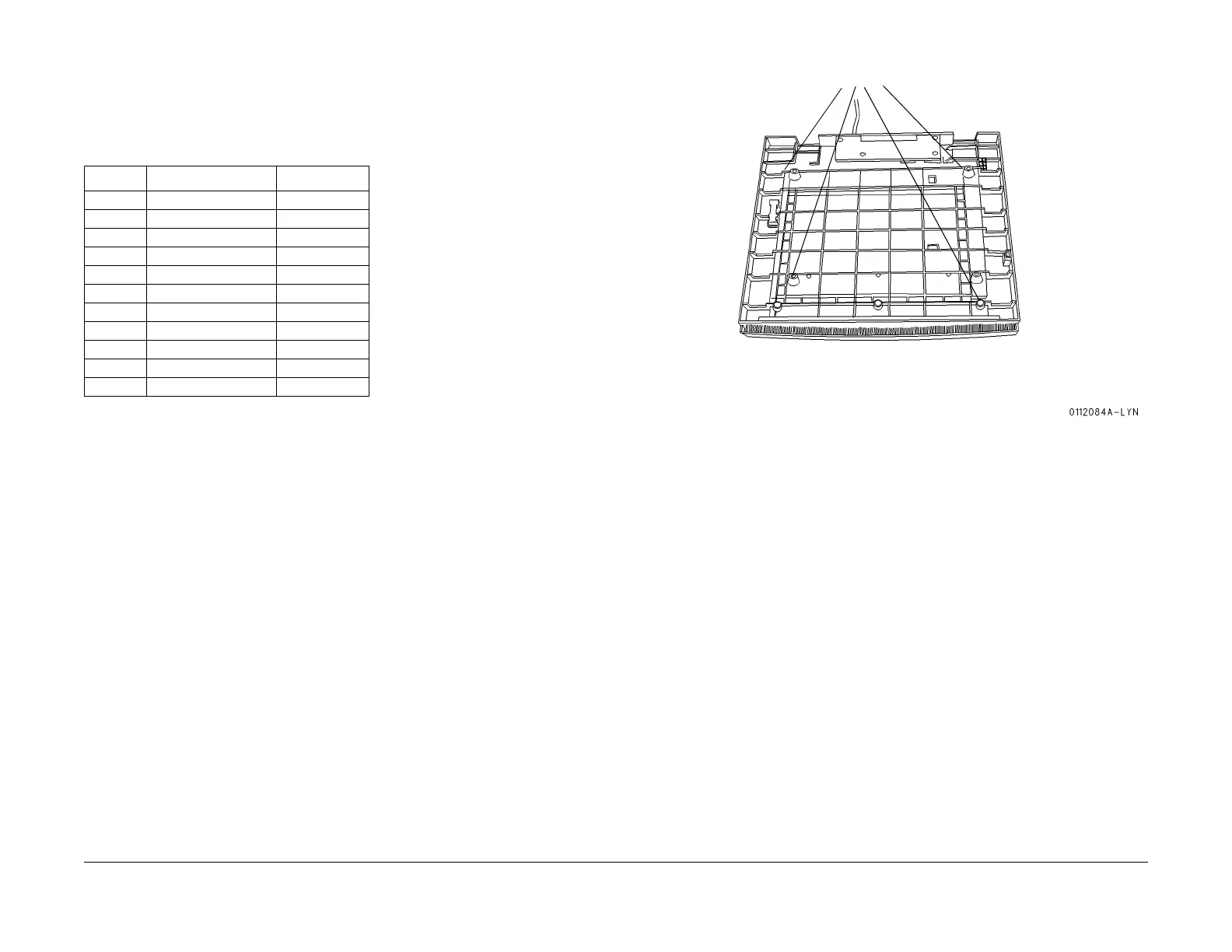

Figure 1 Remove Foot Pads
NOTE: The Cover has a post and the Actuator has a hole for proper orientation for installation.
3. Install the Actuator (F
igure 2
).
Table 1 Kit Contents
Quantity Description Part Number
1 Actuator 120K91660
2 Hinges 3E48130
1 Stopper 3K85090
1 Magnet 121E90620
1 Epoxy Adhesive 43P73
1 Blind Covers 48E66220
1 Platen Cushion 4E8250
2 M3 X 12 Screws 158W28255
2 Screws (for actuator) 26E14060
8 Screws (for hinges) 153W16055
1 Kit Instructions 602E74330
Remove Foot Pads (4)
To Next Page
