DocuColor 12/DCCS50
REP 12.4.1
Repairs and Adjustments
Reissue
REP 12.4.1 Feed Motor
Parts List on PL 12.4
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Rear Cover (PL 12.1)
2. Disconnect the connector (Figu
re 1).
1. Disconnect the connector.
2. Release the clamps (3) and remove the wire.

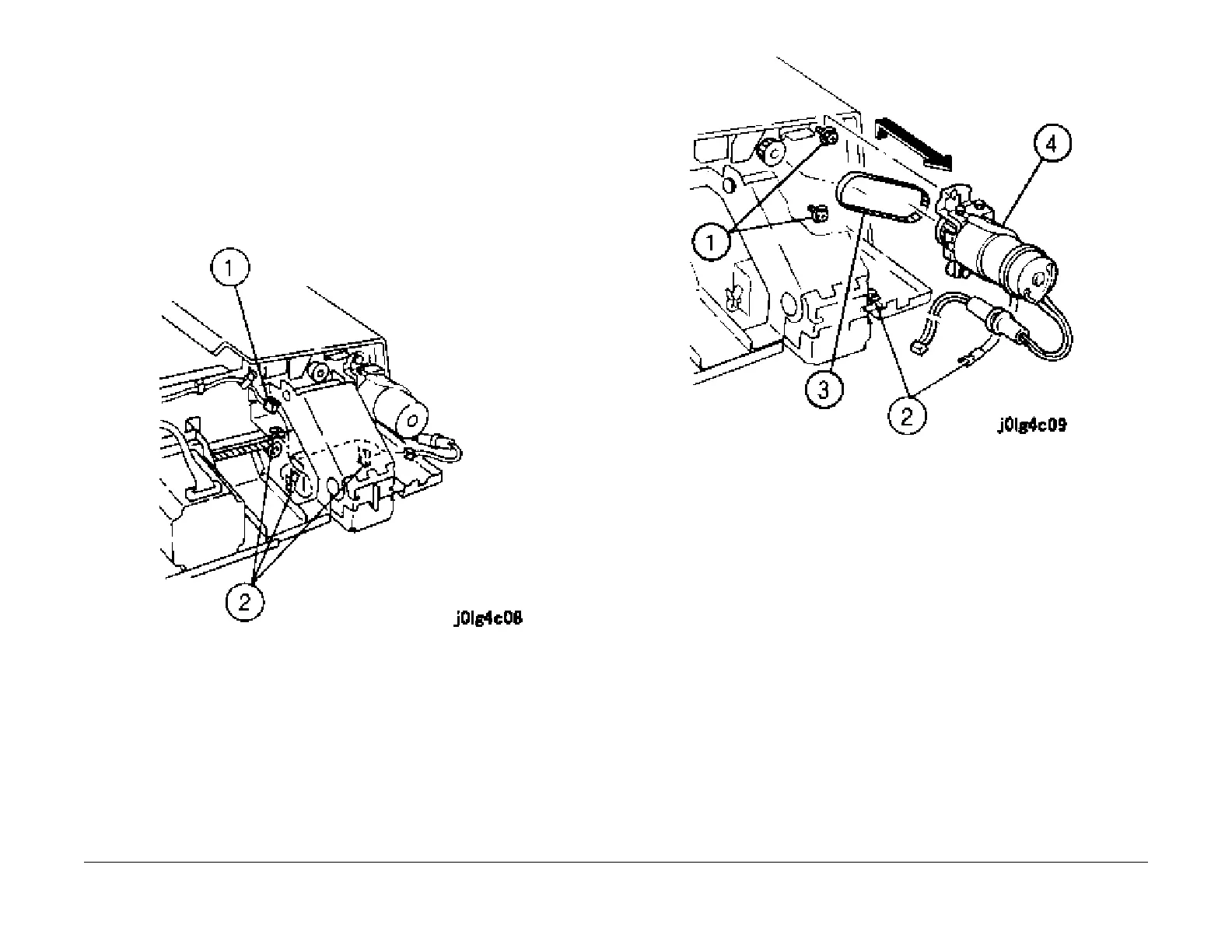

Figure 1 Disconnect the Connector
3. Remove the Feed Motor (Figu
re 2).
1. Loosen the screws (2).
2. Loosen the screws and remove the ground wire.
3. Remove the belt.
4. Remove the Feed Motor.
Figure 2 Remove the Feed Motor
Installation
1. Reinstall the parts in the reverse order of disassembly.
