Xerox DocuColor 12/DCCS50 User Manual

1/05
8a-24
DocuColor 12/DCCS50
REP 2.8.37, REP 2.8.38
Reissue
High Capacity Feeder
REP 2.8.37 HCF Feed Belt
Parts List on PL 15.10
Removal
WARNING
To avoid electrical shock, switch-OFF the Main Power Switch and disconnect the Power
Cord.
1. Remove the HCF Paper Tray Assembly (REP 2.7.
5).
2. Remove the HCF Rear Cover (PL 15.10
).
3. Remove the HCF Feed Belt (Figur
e 1).

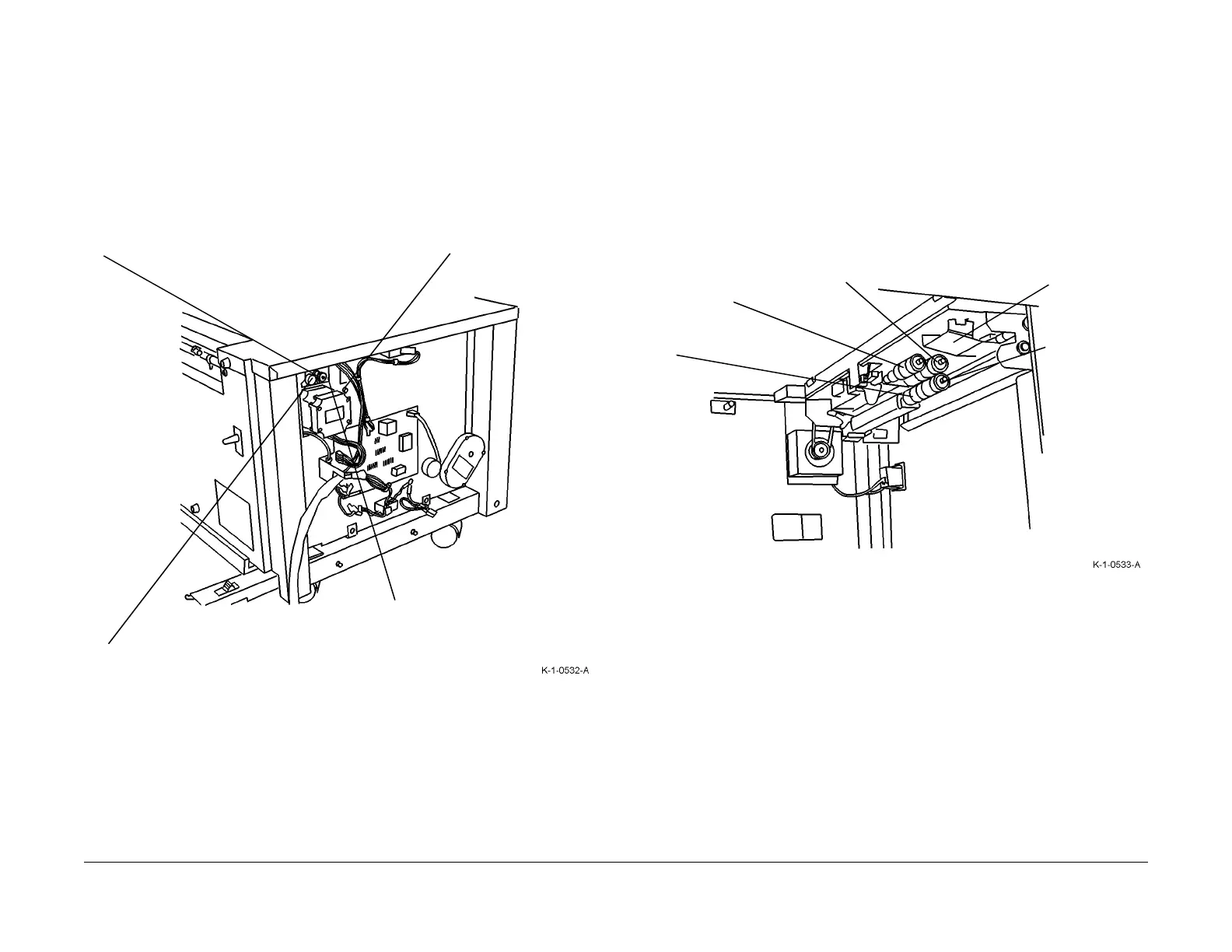

Figure 1 Removing the Feed Belt
Replacement
NOTE: Place the Feed Belt on the Pulley before replacing the Drive Motor.
NOTE: Do not over tension the Feed Belt. The tension produced by the spring is sufficient.
1. Reverse the above procedures to replace the Feed Belt.
REP 2.8.38 HCF Feed/Nudger/Retard Rolls
Parts List on PL 15.14
Removal
WARNING
To avoid electrical shock, switch-OFF the Main Power Switch and disconnect the Power
Cord.
1. Remove the HCF Paper Tray Assembly (REP 2.7.
5).
2. Remove the HCF Feed/Nudger/Retard Rolls (Figur
e 1).
NOTE: The Front Chute must be removed to allow clearance to remove the Feed Roll.
Rolls are ident
ical and interchangeable.
Figure 1 Removing the Feed/Nudger/Retard Rolls
Replacement
1. Reverse the above procedures to replace the Rolls.
3. Remove Drive Motor
and Mounting Bracket as
one (4 screws)
2. Remove KL-clip and Pulley
4. Remove Feed Belt
1. Remove the KL-clip and Feed Clutch
Feed Roll
Nudger Roll
Front Chute
Retard Roll
Push the Lock
Tab and slip Roll
off shaft (3)
