Xerox DocuColor 12/DCCS50 User Manual

1/05
5-330
DocuColor 12/DCCS50
PL 13.12
Reissue
Parts Lists

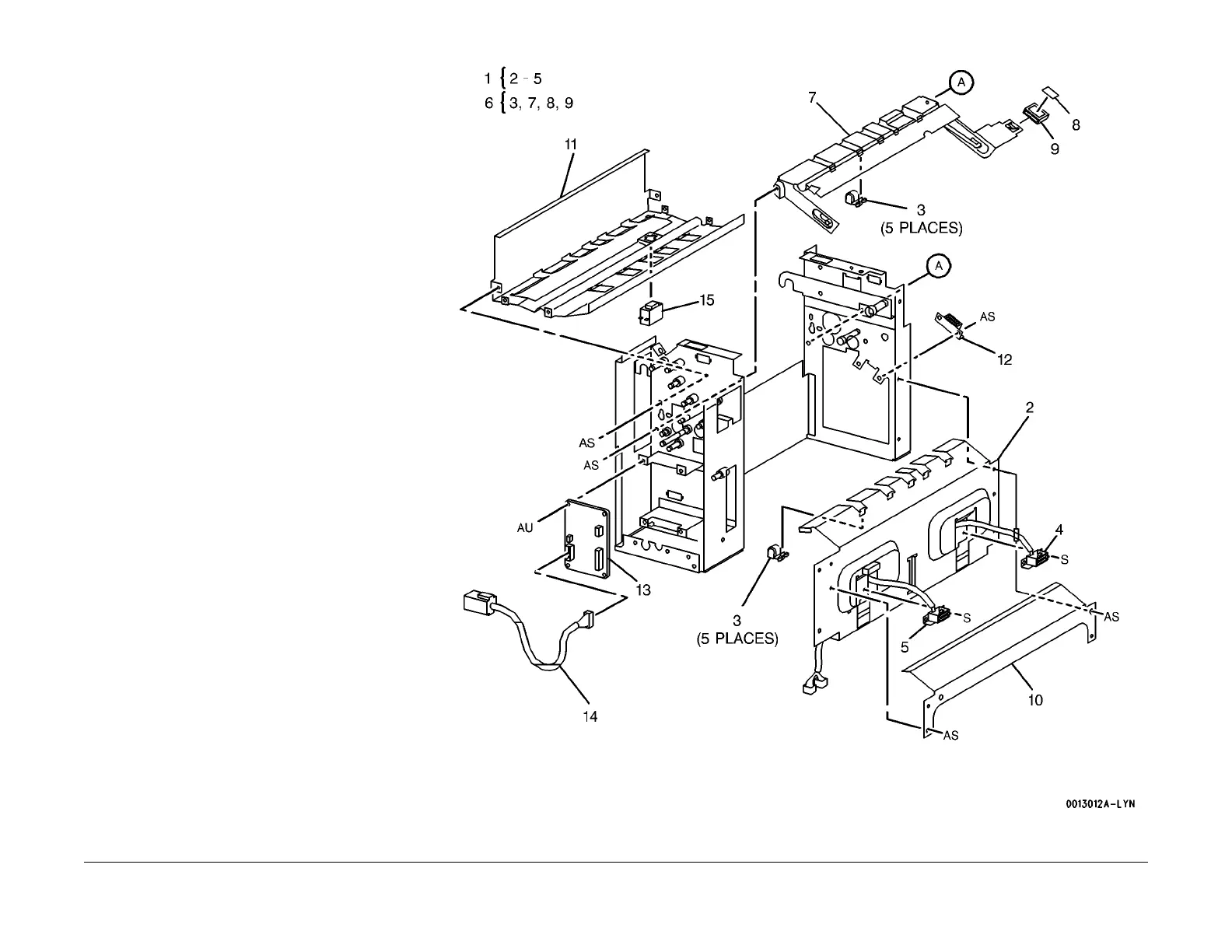

PL 13.12 Decurler Chute, PWB
Item Part Description
1 054K15550 Entrance Lower Chute Assembly
2 – Entrance Lower Chute (P/O PL
13.12 I
tem 1)
3 059K08590 Pinch Roll
4 110K91391 Mail Box Docking Interlock Switch
5 – Mail Box Docking Interlock Switch
(P/
O P
L 13.12 Item 1)
6 054K13920 Exit Lower Baffle Assembly
7 – Exit Lower Baffle (P/O PL 13.12
It
em
6)
8 – Label (P/O PL 13.12 Item 6)
9 003E36290 Knob
10 – Chute (Not Spared)
11 – Upper Chute (P/O PL 13.3 Item 2)
12 121E89780 Magnet Catch
13 160K52902 Decurler Control PWB
14 – Wire Harness (PWB-Mail Box) (P/O
PL 13.
3 I
tem 2)
15 130E82970 Decurler Exit Sensor
