DocuColor 12/DCCS50
PL 2.7B
Reissue
Parts Lists

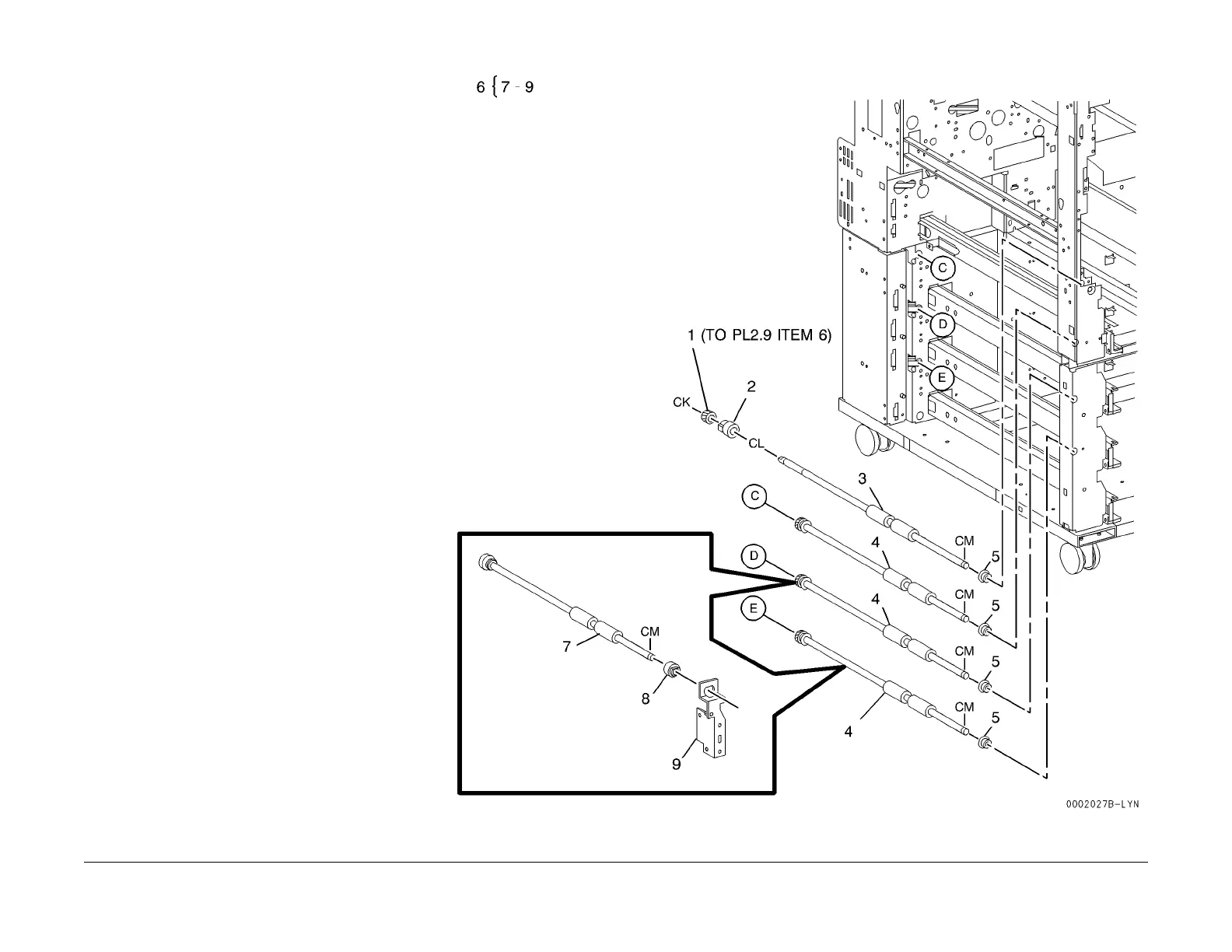

PL 2.7B Tray 2-4 Take Away Drive
(Part 2 of 2)
Item Part Description
1 – Gear (Teeth on both gears, pitch in
diffe
rent directions) (Not Spared)
2 005K82730 One Way Clutch
3 059K06831 T/A Roll 1
4 059K09930 T/A Roll 2, T/A Roll 3, T/A Roll 4
5 – Bearing (P/O PL 2.7A Item 1)
6 600K74790 Noise Impulse Kit
7 – T/A Roll 3, T/A Roll 4 (P/O PL 2.7B
It
em
6)
8 – One Way Clutch (P/O PL 2.7B Item
6)
9 – Bracket (P/O PL 2.7B Item 6)
