1/05
5-315
DocuColor 12/DCCS50
PL 12.8
Parts Lists
Reissue

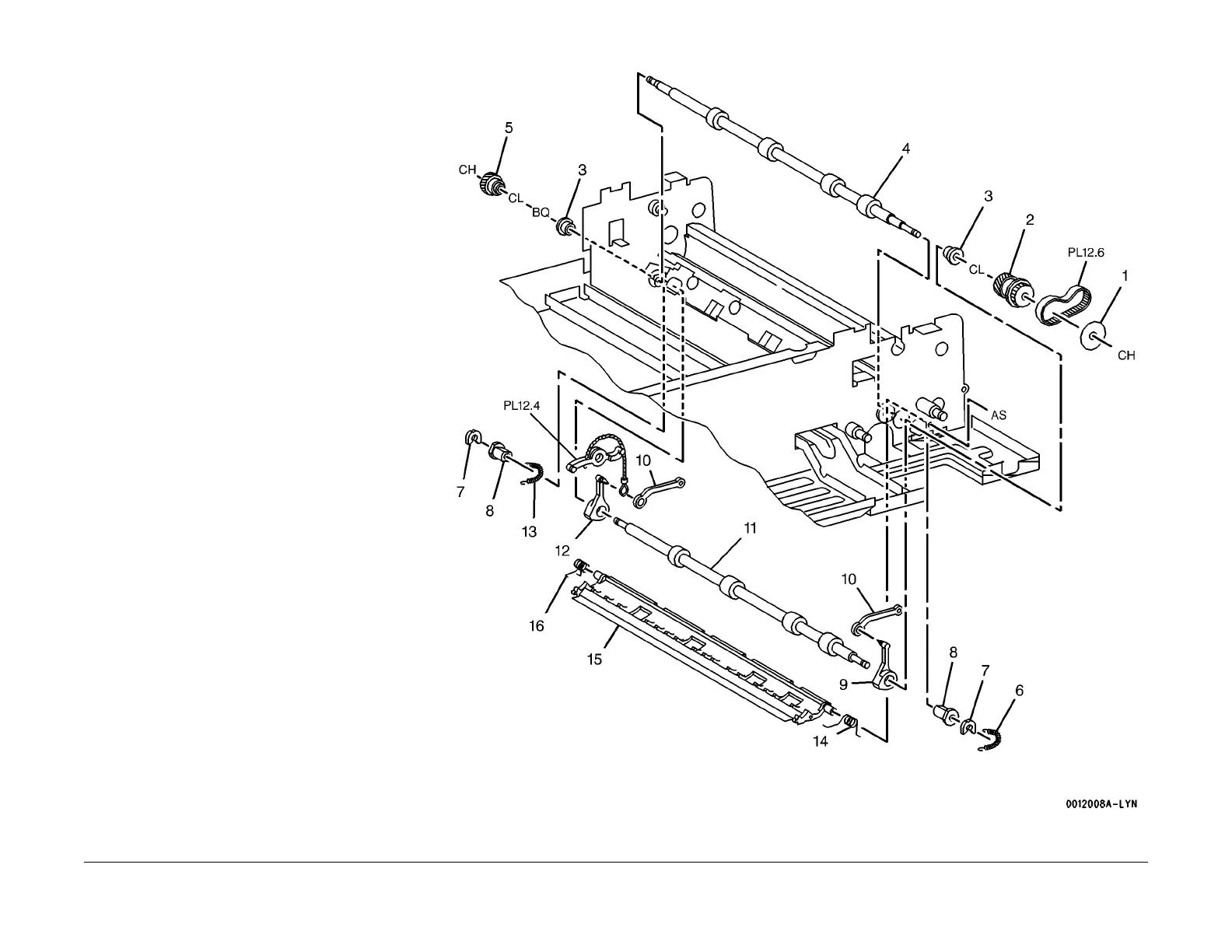

PL 12.8 Registration Roll
Item Part Description
1 – Spacer (Not Spared)
2 007K81120 Gear Pulley
3 – Bearing (Not Spared)
4 059K11830 Registration Roll
5 007K91860 Gear
6 009E28580 Spring (Rear)
7 – C-Clip (Not Spared)
8 013E94561 Bearing
9 – Cam (Rear) (Not Spared)
10 – Link (Not Spared)
11 022K38040 Registration Pinch Roll (REP
12.
8.1 )
12 – C
am (Front) (Not Spared)
13 009E39080 Spring (Front)
14 009E28570 Spring
15 050K43870 Gate
16 009E28560 Spring
