Xerox DocuColor 12/DCCS50 User Manual

1/05
5-331
DocuColor 12/DCCS50
PL 13.13
Parts Lists
Reissue

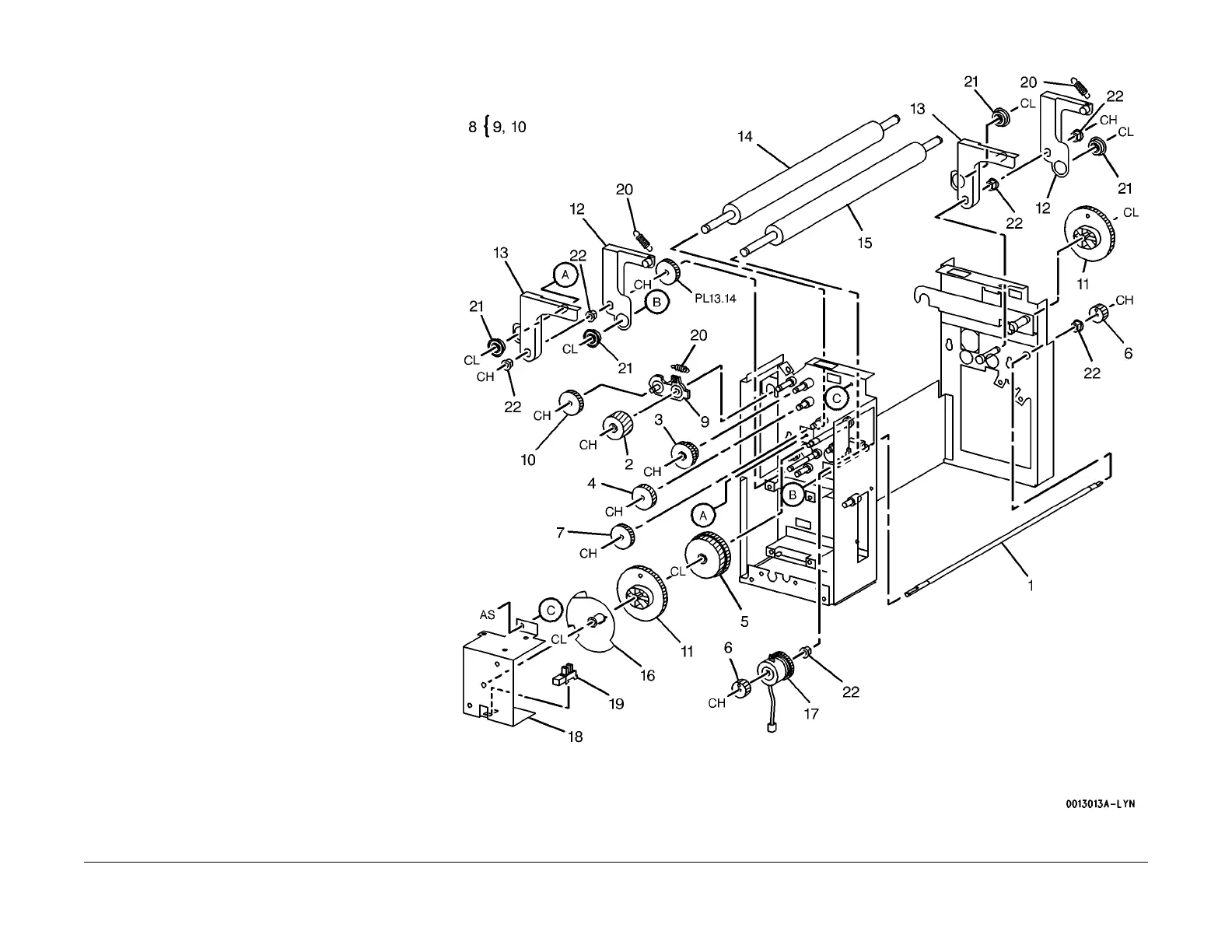

PL 13.13 Decurler Roll
Item Part Description
1 006E61320 Cam Drive Shaft
2 007E54990 Gear (32)
3 007E55010 Gear (28/33)
4 – Gear (32) (P/O PL 13.3 Item 2)
5 007E55030 Gear (52/56)
6 007E55040 Gear (20) (REP 13.13.2 )
7 – Gear (32) (P/O PL 13.3 Item 2)
8 015K28141 Idler Gear Assembly
9 – Bracket (P/O PL 13.13 Item 8)
10 007E45091 Gear
11 008E93390 Cam (REP 13.13.2 )
12 011K94401 Lever (Front)
13 011K94411 Lever (Rear)
14 022K57120 Decurler Roll 1 (Upper) (REP
13.
13.
1 )
15 022K57130 Decurler Roll 2 (Lower) (REP
13.
13.
1 )
16 062E98711 Reflector
17 121K83981 Decurler Clutch
18 – Sensor Bracket (P/O PL 13.3 Item
2)
19 130E82530 Decurler Cam Sensor
20 809E14570 Spring
21 413W08350 Bearing
22 413W75959 Bearing
