Xerox DocuColor 12/DCCS50 User Manual

1/05
4-14
DocuColor 12/DCCS50
REP 1.6.3
Reissue
Repairs and Adjustments

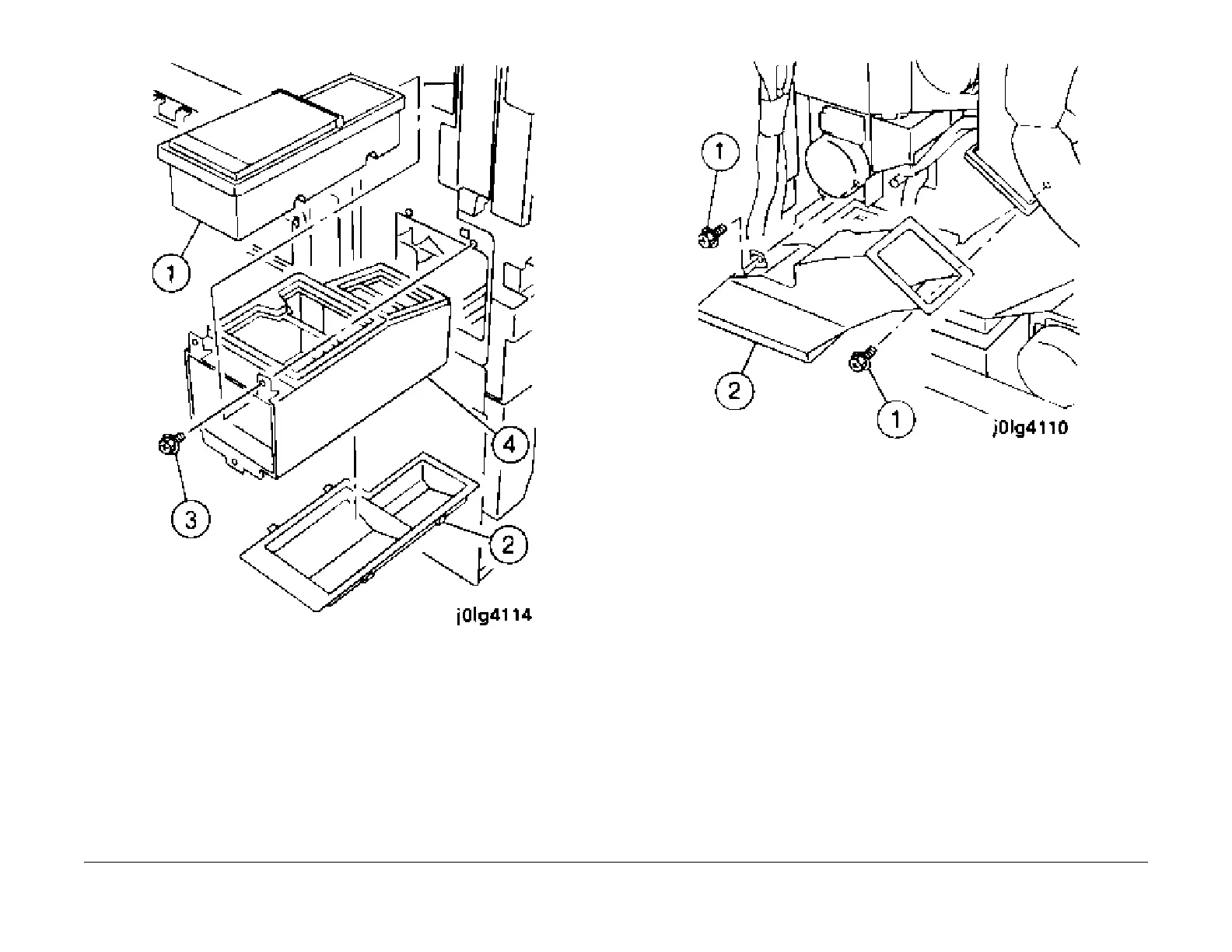

Figure 2 Removing the Filter Case
5. Lower the IOT Control PWB Chassis (REP 9.2.
1).
6. Remove the Filter Duct (PL 1
0.2 Item 2) (Figure 3)
1. Remove the screws (2).
2. Remove the duct.
Figure 3 Removing the Duct
7. Remove Inverter 2 (REP
2.23.
2).
8. Remove Inverter 1 (REP 2.23.
1).
NOTE: Exit/Fuser Nip Drive Assembly is mounted on the
rear frame at the top of the
inverter opening
9. Remove the Exit/Fuser Nip Drive Assembly (Figure 4 and F
igure 5).
