1/05
4-160
DocuColor 12/DCCS50
REP 12.4.2
Reissue
Repairs and Adjustments
REP 12.4.2 Nudger Roll
Parts List on PL 12.4
Removal
NOTE: After replacing the Nudger Roll, reset the HFSI counter. Enter the dC135 HFSI
Counters Diag. Screen (NVM 005-80).
NOTE: Replace the Nudger Rolls and the Feed Roll at the same time.
WARNING
Turn power off and disconnect the power plug.
1. Open the DADF Top Cover and remove the Inner Cover (Figur
e 1).
1. Open the Top Cover.
2. Loosen the screws (2).
3. Remove the Inner Cover.

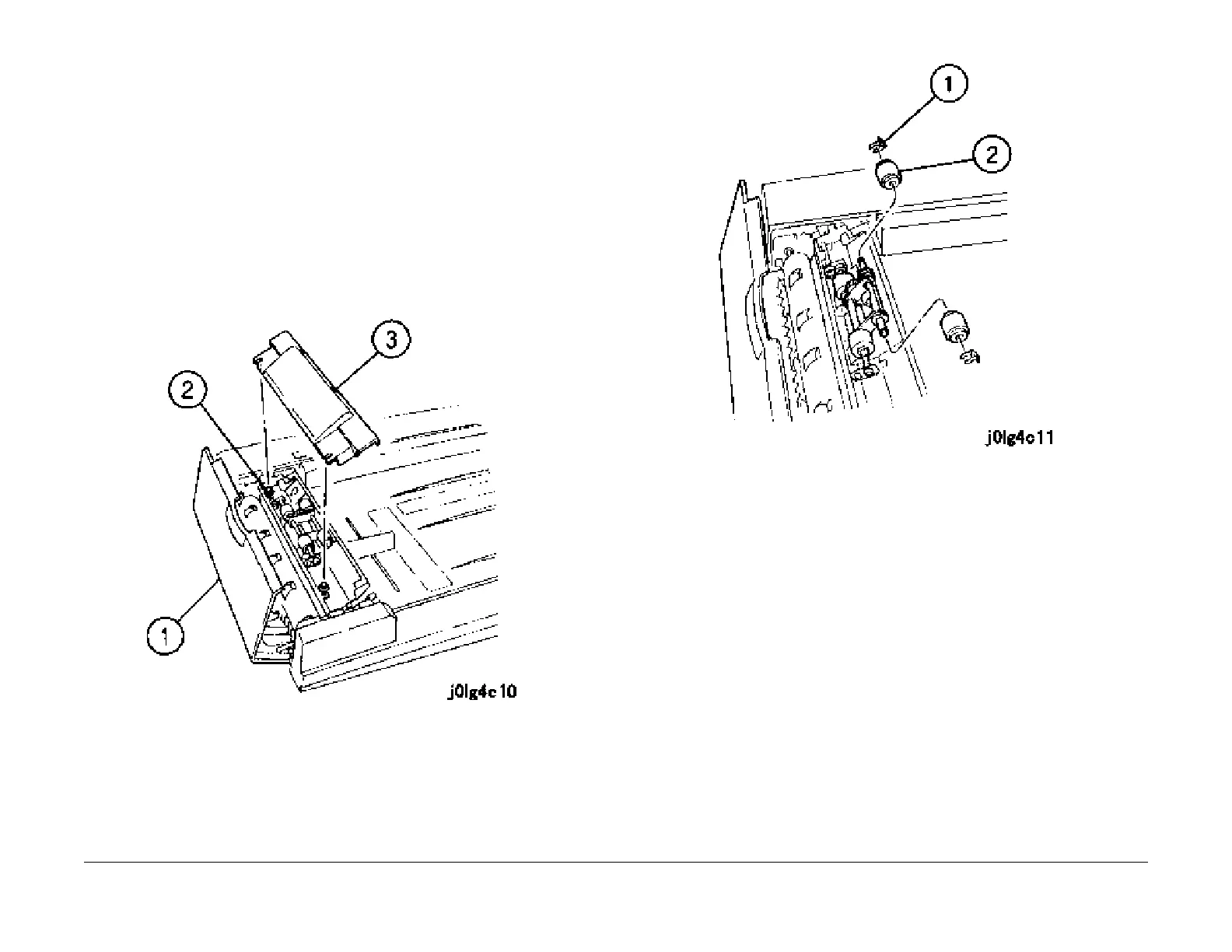

Figure 1 Remove the Inner Cover
2. Remove the Nudger Rolls (Figu
re 2).
1. Remove the KL-clips (2).
2. Remove the Nudger Rolls (2).
Figure 2 Remove the Nudger Rolls
Installation
NOTE: The Nudger Rolls have a one-way clutch structure. Install them so that they rotate
freely in the clockwise direction.
1. Reinstall the parts in the reverse order of disassembly.
