Finisher/Sorter
REP 15.3.28 Finisher PWB
Parts List on PL 18.4
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Roll the Finisher away from the printer until it stops.
3. Remove the Left Lower Cover (REP 15.3.
6).
NOTE: Observe the ESD procedures while removing the Finisher PWB.
4. Remove the Finisher PWB (Figure 1).
1.
Remove the Finisher PWB Cover.
2. Disconnect the 18 connectors from the Finisher PWB. Remove the harness from the
harness holder and
move the harness lines away.
3. Remove eight screws securing the Finisher PWB.
4. Grasp the PWB at the bottom and move the bottom away first to remove the Finisher
PWB.
Replacement
1. Reinstall the Finisher PWB in the reverse order of removal.

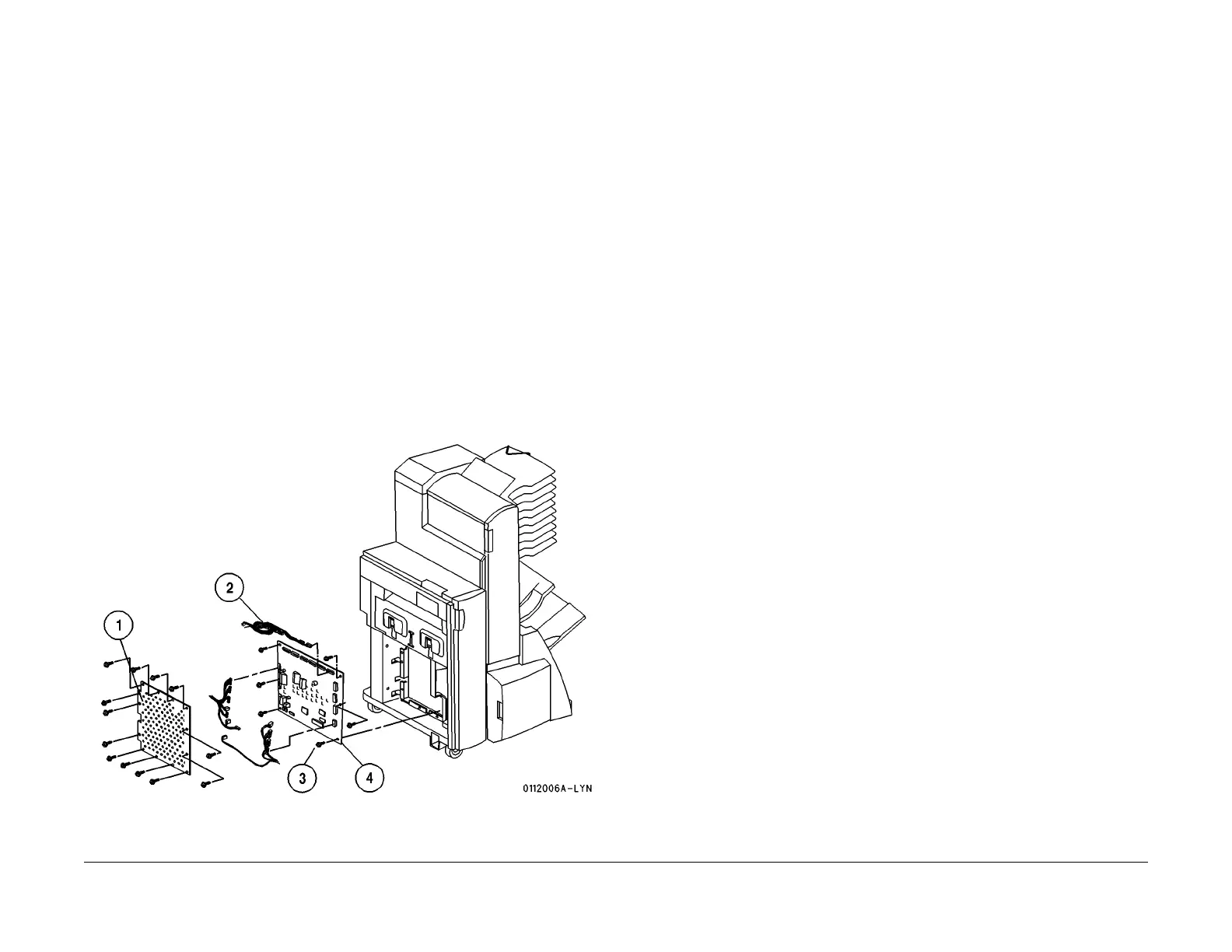

Figure 1 Remove the Finisher PWB
REP 15.3.29 Finisher PWB EPROM
Parts List on PL 18.4
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Observe the ESD procedures.
3. Remove the Finisher PWB (REP 15.3.
28).
4. Remove the EPROM.
Replacement
1. Reinstall the EPROM in the reverse order of removal.
