High Capacity Feeder
REP 2.8.41 HCF Feed Clutch
Parts List on PL 15.13
Removal
WARNING
To avoid electrical shock, switch-OFF the Main Power Switch and disconnect the Power
Cord.
1. Remove the HCF Rear Cover (PL 15.10
)
2. Remove the Feed Clutch (Figu
re 1).

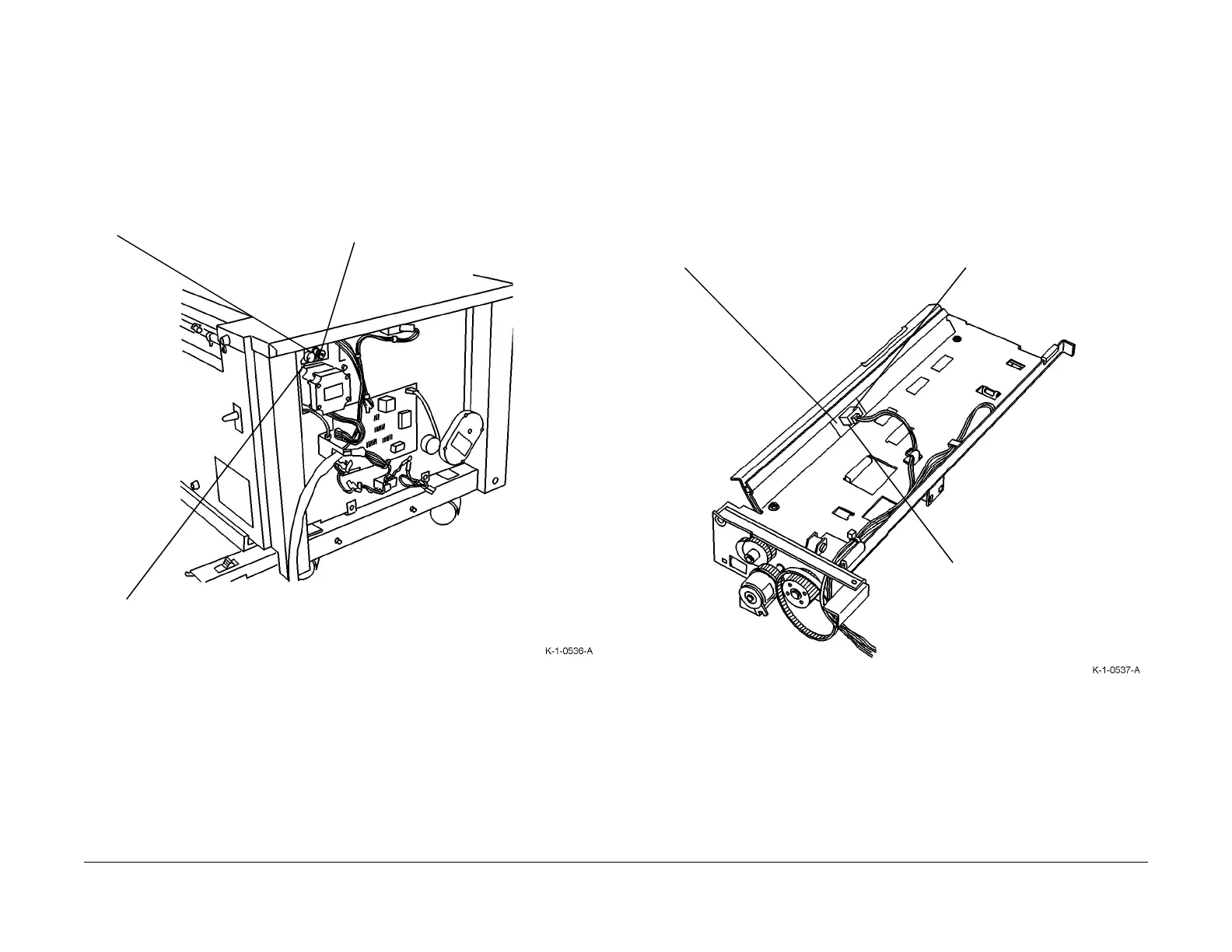

Figure 1 Removing the Feed Clutch
Replacement
1. Reverse the above procedures to replace the Feed Clutch
REP 2.8.42 HCF TAR Sensor
Parts List on PL 15.11
Removal
WARNING
To avoid electrical shock, switch-OFF the Main Power Switch and disconnect the Power
Cord.
1. Remove the HCF Assembly (REP 2.7.
5).
2. Remove the HCF Feeder Assembly (REP 2.8.
27).
3. Remove the Feed Sensor (Figur
e 1).
Figure 1 Removing the Feed Sensor
Replacement
1. Reverse the above procedures to replace the Feed Sensor.
2. Disconnect P/J851
1.Remove the KL-clip
3. Remove the Feed Clutch
3. Remove the Sensor
2. Remove Screws (2) and Bracket
1. Disconnect P/J-853
