Xerox DocuColor 12/DCCS50 User Manual

1/05
4-39
DocuColor 12/DCCS50
REP 2.16.2, REP 2.17.1
Repairs and Adjustments
Reissue

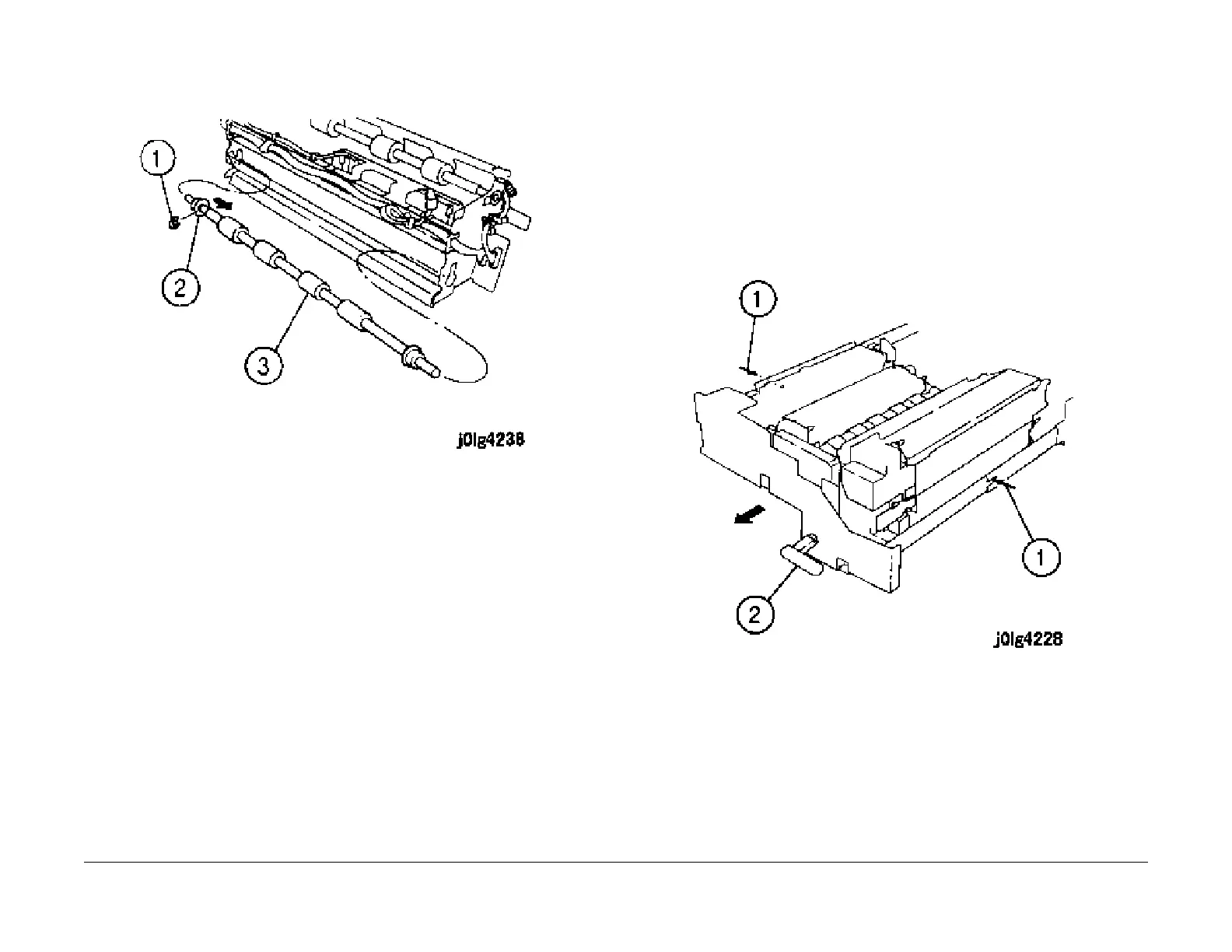

Figure 2 Removing the Pre-Regi. Roll
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 2.17.1 Vacuum Transport
Parts List on PL 2.17
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open the Front Door.
2. Push the lever down and pull out the drawer assembly.
3. Pull the drawer assembly out to a maintenance position (Figur
e 1).
1. Push the stoppers on both sides.
2. Pull out the Drawer Assembly.
Figure 1 Opening the Drawer
4. Remove the Vacuum Transport (Figure 2).
1.
Remove the screws (3).
2. Remove the Vacuum Transport.
