1/05
4-55
DocuColor 12/DCCS50
REP 3.2.1, REP 3.3.1
Repairs and Adjustments
Reissue

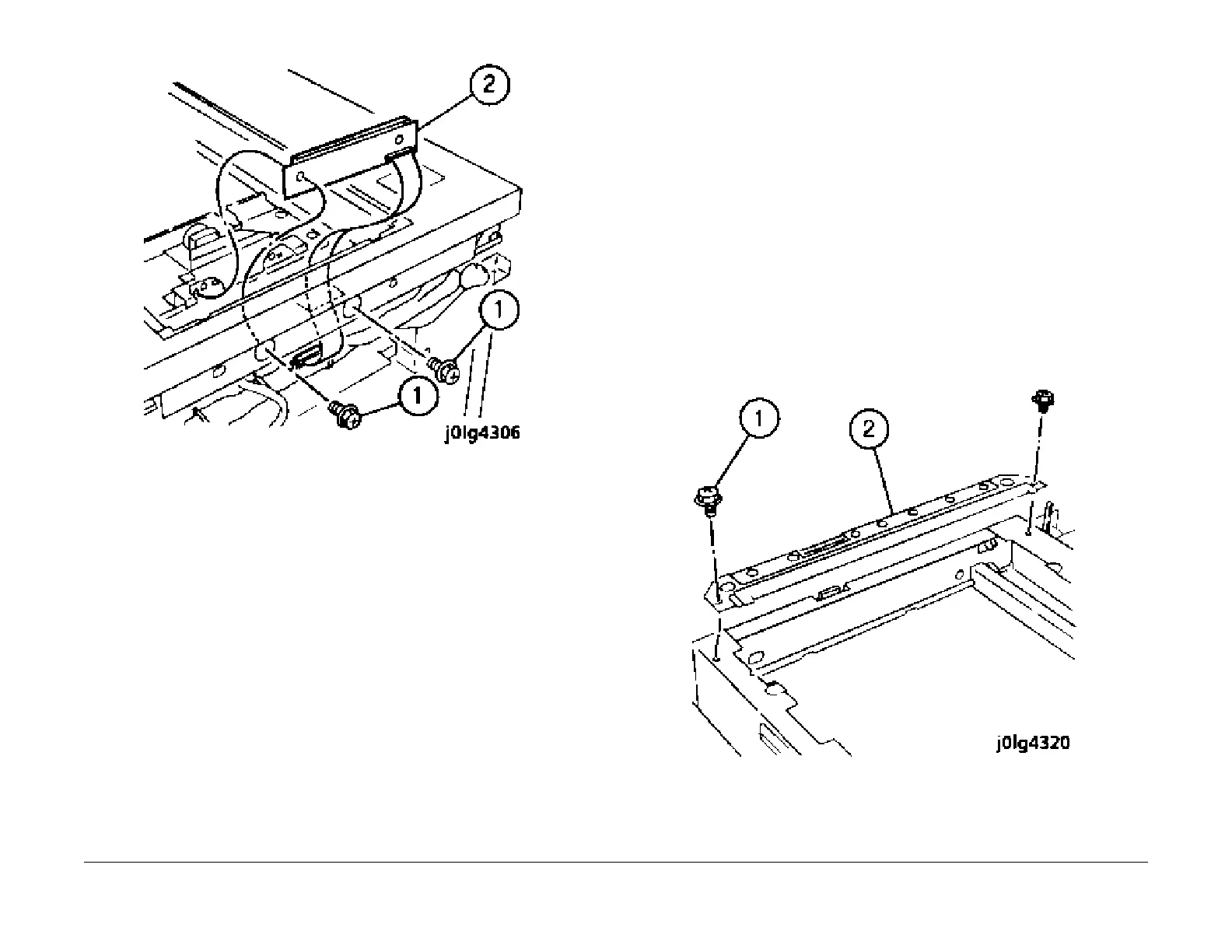

Figure 3 Removing the CCD PWB
Installation
NOTE: Ensure that the two locating holes line up with the semi-perf locating pin.
1. Reinstall the parts in the reverse order of disassembly.
REP 3.3.1 Carriage Cables
Parts List on PL 3.3
Removal
NOTE: This page describes how to remove the Rear Carriage Cable.
WARNING
Turn power off disconnect the power plug.
NOTE: Do not replace both cables at the same time. Remove the front and rear cables sepa-
rately.
1. Remove the Platen Cover or DADF (REP 12.1.
1).
2. Remove the Platen Glass (REP 3.1.
1).
3. Platen machines: Remove the Blind Cover (PL 1
1.1 Item 7).
4. Remove the Top Cover (PL
11.1 Item 1).
5. Platen machines: Remove the Registration Guide (Figur
e 1).
1. Remove the screws (2).
2. Remove the Registration Guide.
Figure 1 Removing the Registration Guide
6. DADF machines: Remove the registration gate and plate (Figur
e 2).
To Next Page
