DocuColor 12/DCCS50
REP 3.3.1
Reissue
Repairs and Adjustments
1. Remove the screws (2).
2. Remove the Registration Gate.
3. Remove the screws (2).
4. Remove the plate.

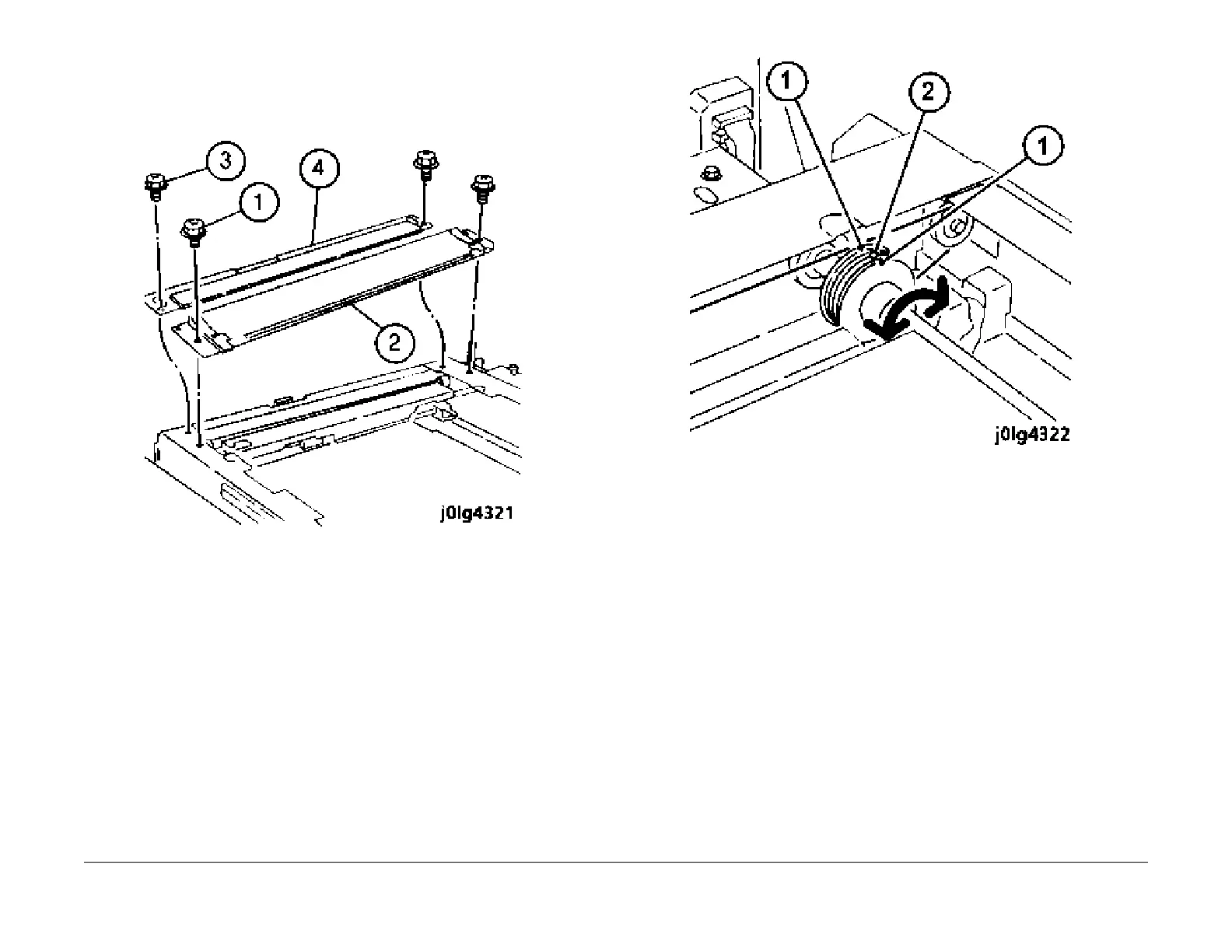

Figure 2 Removing the Registration Gate and Plate
7. Remove the Full Rate Carriage from the IIT Frame (REP 3.4.
2). Keep the lamp wire har-
ness connector connected.
8. Move the Half Rate Carriage so that the position of the Carriage Cable Ball on the Cap-
stan is one of the following: (Fi
gu
re 3)
1. Two Carriage Cable Rolls in front and rear.
2. The Carriage Cable Ball is directly above.
Figure 3 Positioning the Half Rate Carriage
9. Remove the Carriage Cable (F
igure 4).
1. Remove the spring.
2. Separate the spring and the cable.
3. Pull out the ball from the hole.
4. Remove the cable.
