1/05

5-278

DocuColor 12/DCCS50

PL 7.1

Reissue

Parts Lists

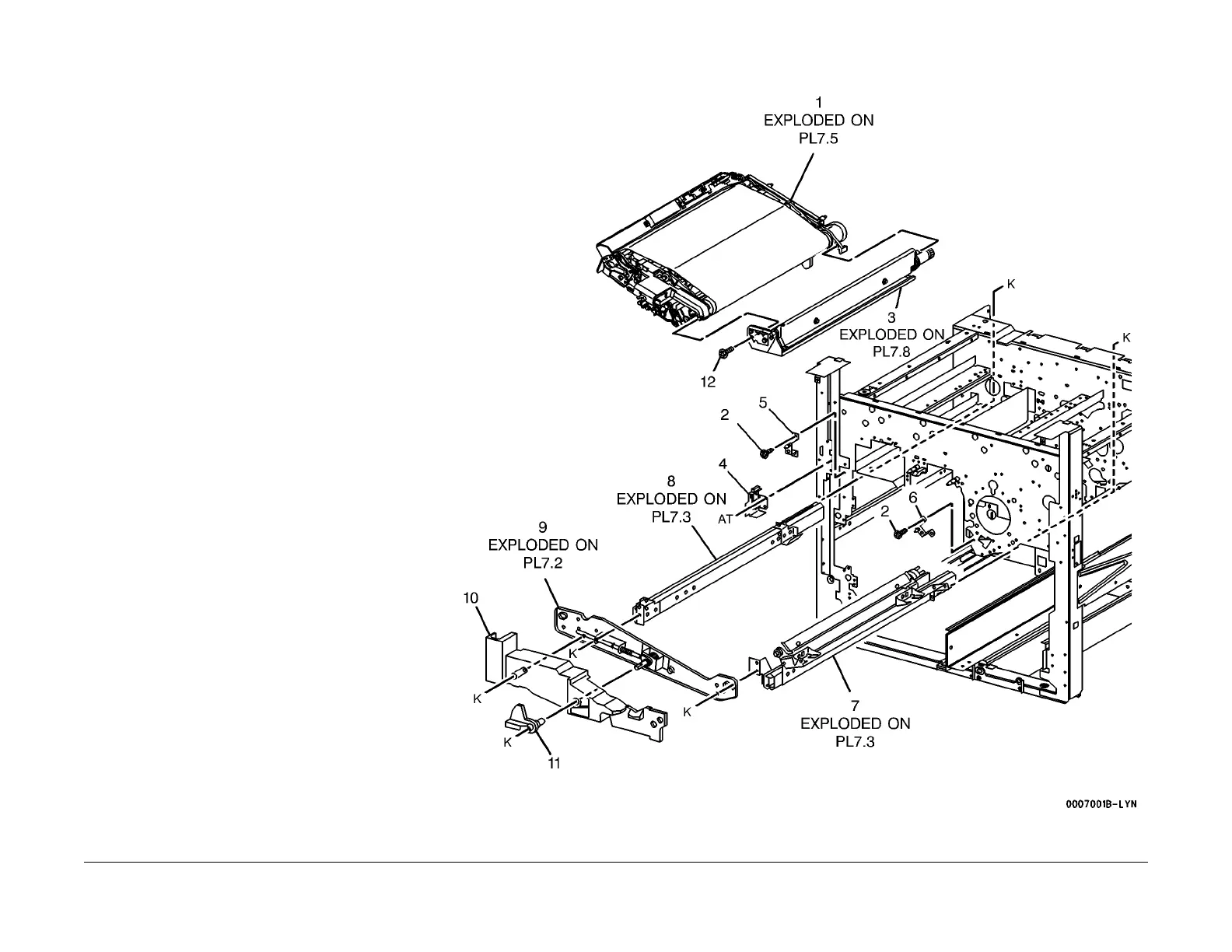

PL 7.1 IBT System Component

Item Part Description

1 600K86096 IBT Assembly (REP 7.1.1 )

2 – Screw (M3 X 4) (Not Spared)

3 042K91906 IBT Cleaner Assembly (W/TAG P1)

(RE

P 7.

1.2 )

4 130K57690 Temp Humidity Sensor

5 – Bracket (Not Spared)

6 – Bracket (Not Spared)

7 015K36962 Right Rail Assembly

8 015K36972 Left Rail Assembly

9 015K29634 Rail Front Plate Assembly

10 048K77264 IBT Inner Cover

11 011E07092 Lever (Yellow Color)

12 – Screw (M3 X 12) (Not Spared)
