1/05
8d-113
DocuColor 12/DCCS50
REP 15.3.5, REP 15.3.6
Finisher/Sorter
Reissue
REP 15.3.5 Mailbox Door Assembly
Parts List on PL 18.2
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Remove the Mailbox Door Assembly (Figu
re 1).
1. Open the Mailbox Door Assembly.
2. Remove the C-clip securing the top hinge.
3. Lift and remove the Mailbox Door Assembly.
Replacement
1. Reinstall the Mailbox Door Assembly in the reverse order of removal.

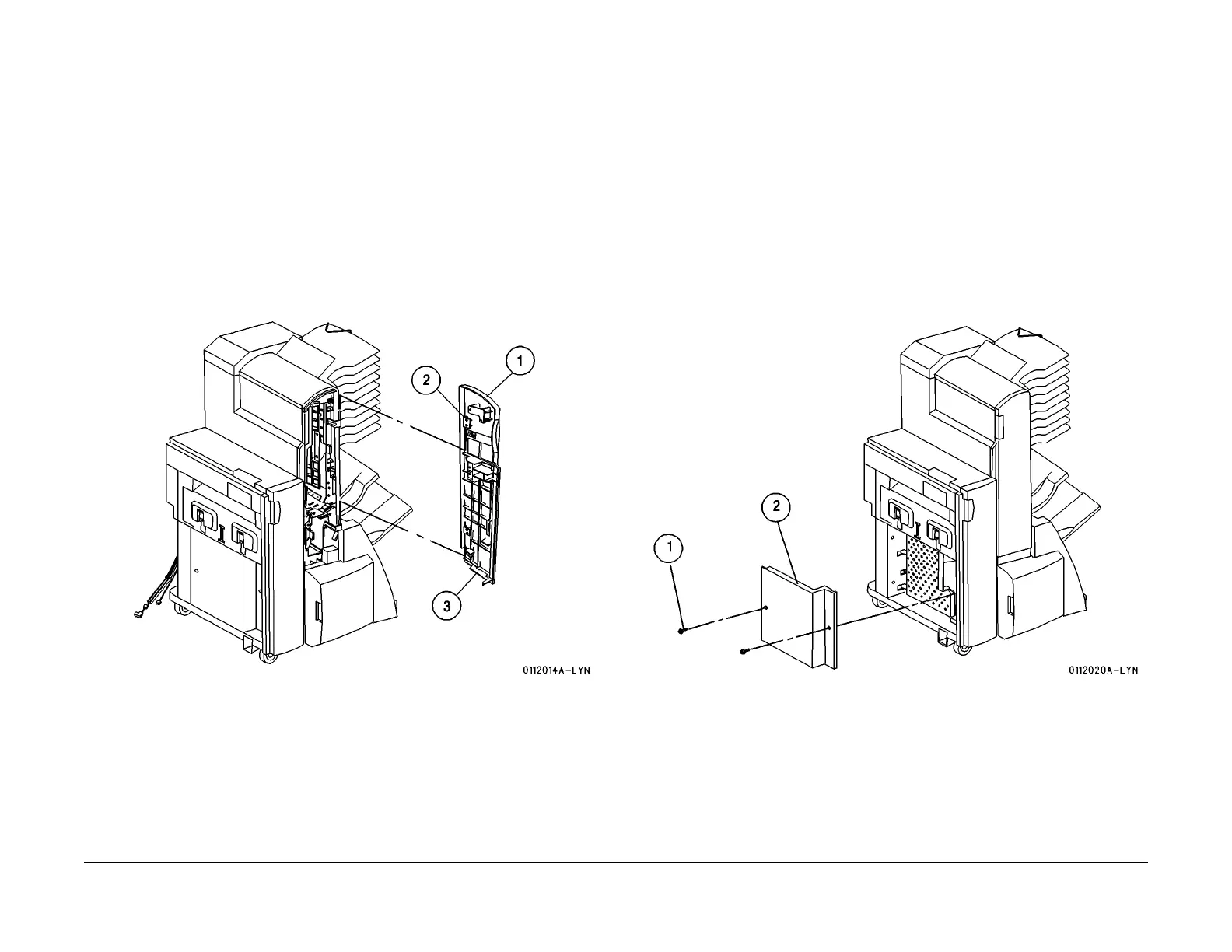

Figure 1 Remove the Mailbox Door Assembly
REP 15.3.6 Left Lower Cover
Parts List on 18.2
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Roll the Finisher away from the printer
until the Finisher stops.
3. Remove the Left Lower Cover (Figur
e 1).
1. Remove the two screws securing the Left Lower Cover.
2. Remove the Left Lower Cover.
Replacement
1. Replace the Left Lower Cover in the reverse order of removal.
Figure 1 Remove the Left Lower Cover
