DocuColor 12/DCCS50

PL 2.7A

Parts Lists

Reissue

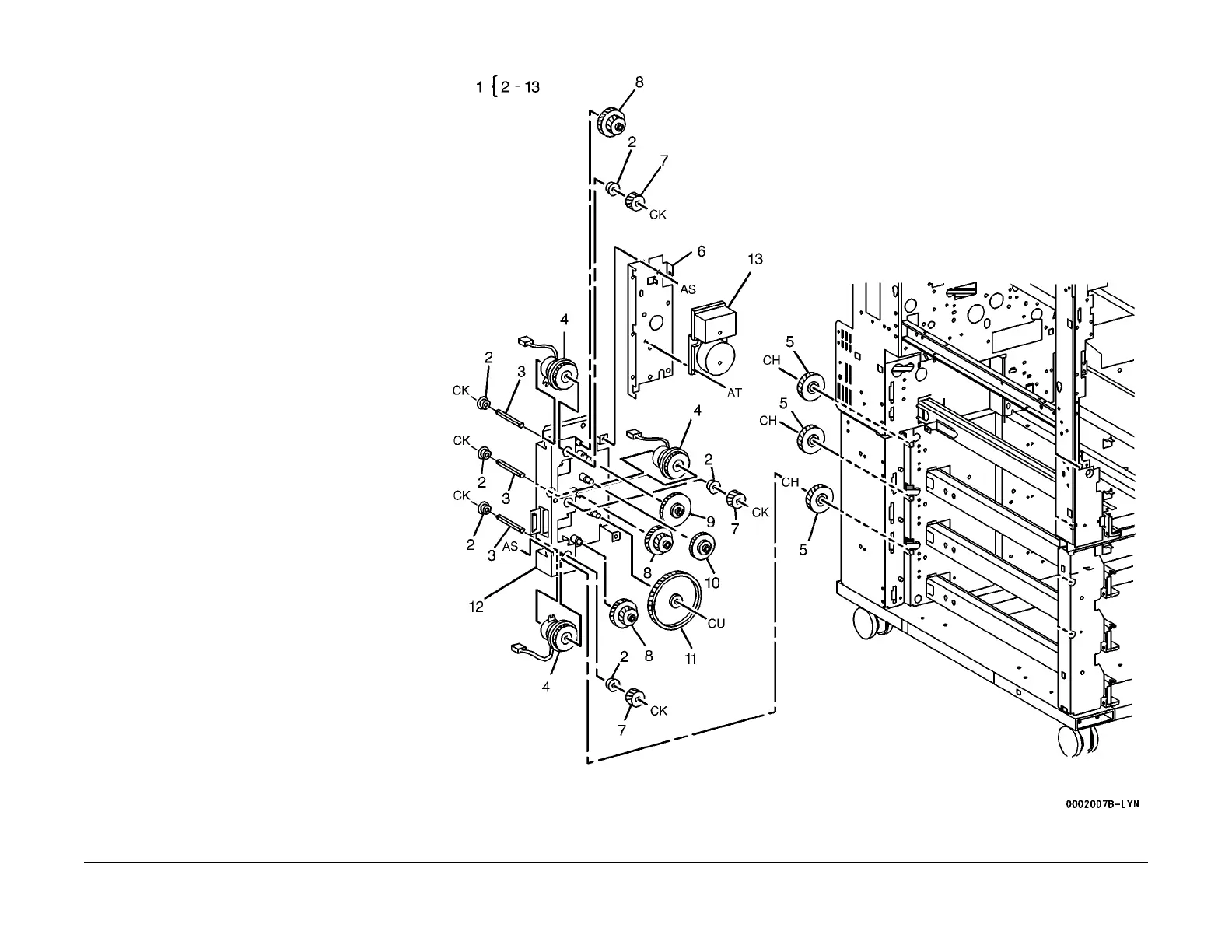

PL 2.7A Tray 2-4 Take Away Drive

(Part 1 of 2)

Item Part Description

1 007K84415 Tray 2-4 Take Away Drive (REP

2.7.1 )

2 – B

earing (P/O PL 2.7A Item 1)

3 – Shaft (P/O PL 2.7A Item 1)

4 121K30050 Tray 2 T/A Feed Clutch, Tray 3 T/A

eed Clutc

h, Tray 4 T/A Feed

Clutch (REP 2.7.2 )

5 007K84422 Gear (43)

6 – Motor Plate (P/O PL 2.7A Item 1)

7 007E51580 Gear (22)

8 007K84731 Gear (23/45)

9 007E56020 Gear (56)

10 007E56030 Gear (45)

11 007E56010 Gear (100)

12 – Bracket (P/O PL 2.7A Item 1)

13 127K23051 T/A Motor (REP 2.7.3 )
