DocuColor 12/DCCS50
REP 7.1.2
Repairs and Adjustments
Reissue
REP 7.1.2 IBT Cleaner
Parts List on PL 7.1
Removal
NOTE: After replacing the IBT Cleaner, clear the HFSI counter. Enter thedC135 HFSI Counter
List Diag. Screen NVM 009-836.
WARNING
Turn power off and disconnect the power plug.
WARNING
Do not put the IBT Cleaner into a fire. If the IBT Cleaner is placed into a fire, it may
explode and cause injury.
NOTE: When removing the IBT, make sure that the IBT Belt does not touch any other part.
NOTE: Carefully place the removed IBT on a flat surface (covered with a sheet of paper).
NOTE: Place the removed IBT Cleaner on the floor, protected by a sheet of paper.
1. Open the Front Door.
2. Remove the IBT (REP
7.1.
1).
3. Remove the IBT Cleaner (Figur
e 1).
1. Remove the screw.
2. Remove the IBT Cleaner.

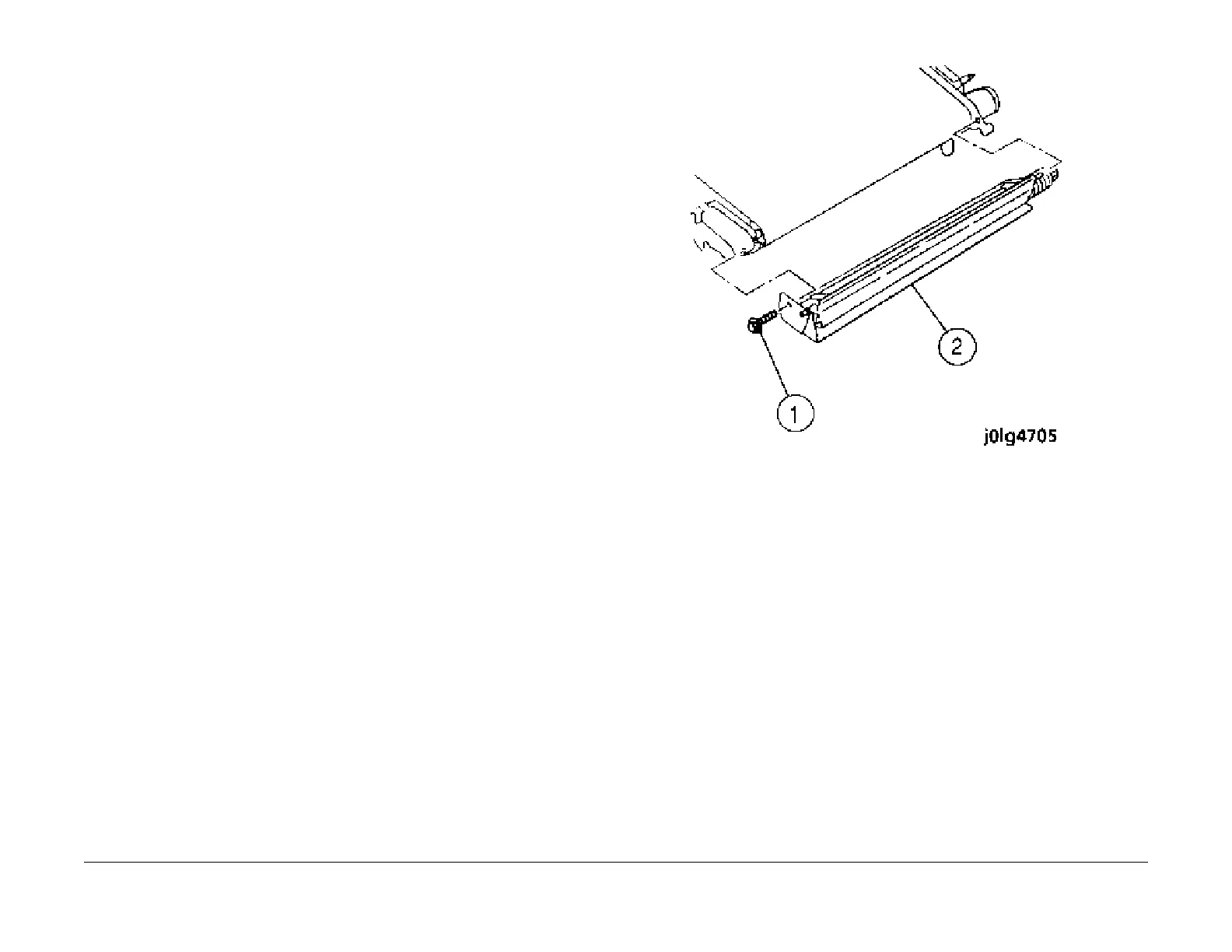

Figure 1 Remove the IBT Cleaner
Installation
NOTE: Ensure that the inboard side of the IBT Cleaner is fully seated.
1. Reinstall the parts in the reverse order of disassembly.
