DocuColor 12/DCCS50
PL 2.25
Reissue
Parts Lists

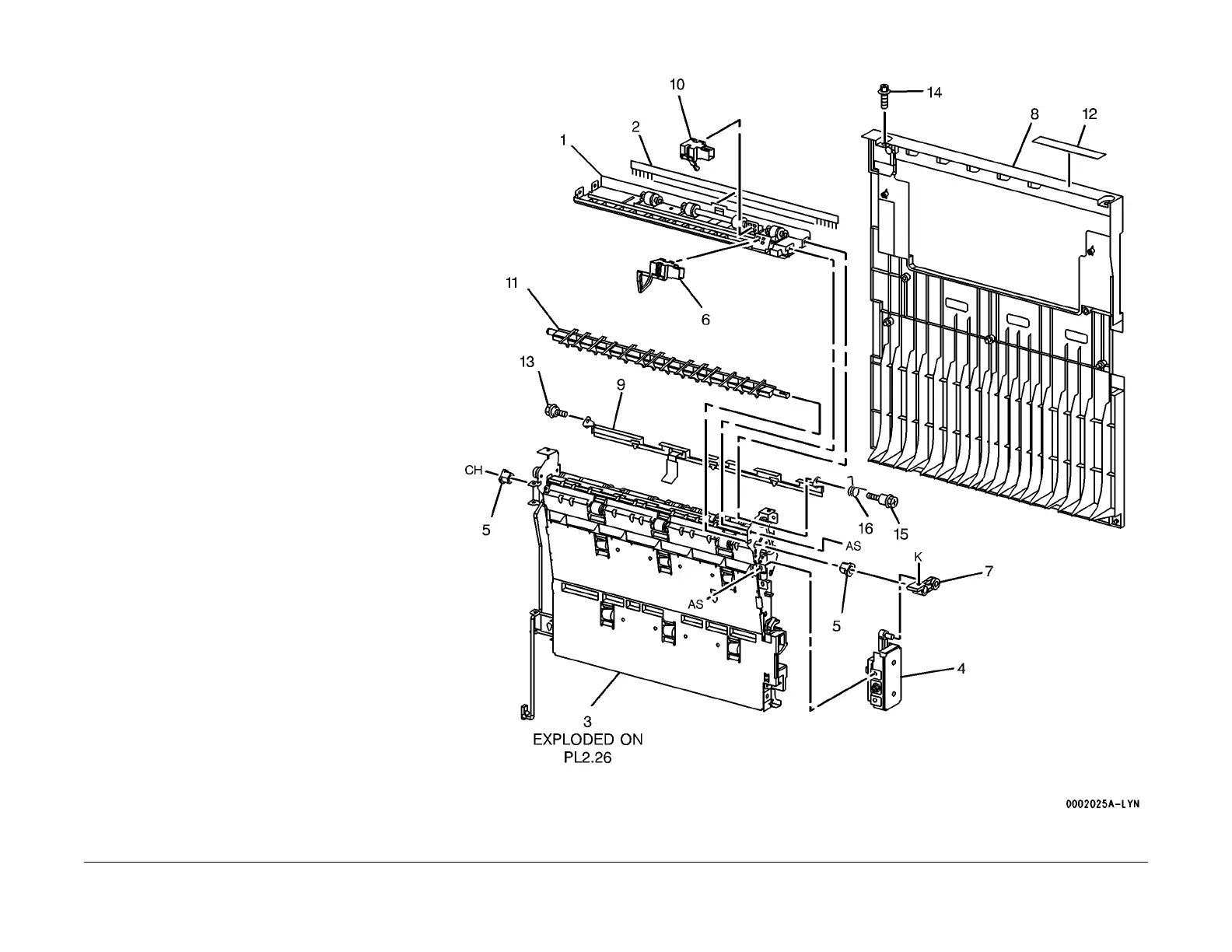

PL 2.25 Inverter 2 Component (Part 1
of 2)
Item Part Description
1 054K10317 Inverter 2 Upper Chute
2 105E98690 Eliminator
3 – Inverter 2 Transport (P/O PL 2.23
It
em
2)
4 121K16383 Inverter Gate Solenoid
5 – Bearing (P/O PL 2.23 Item 2)
6 130K59660 Exit Path Sensor
7 – Gate 1 Link (P/O PL 2.23 Item 2)
8 802E30660 Inverter 2 Cover
9 054K14675 Exit Chute
10 130K57820 M/C Exit Sensor
11 050K36851 Gate 1
12 891E82991 Label
13 – Screw (P/O PL 2.23 Item 2)
14 – Screw (P/O PL 2.23 Item 2)
15 – Screw (P/O PL 2.23 Item 2)
16 – Spring (P/O PL 2.23 Item 2)
