DocuColor 12/DCCS50
REP 11.1.1
Repairs and Adjustments
Reissue
REP 11.1.1 Platen Cushion
Parts List on PL 11.1
Removal
WARNING
Turn power off and disconnect the power plug.
NOTE: The Platen Cushion is fixed in place by double-sided tape.
1. Peel off the Platen Cushion (Figur
e 1).
1. Open the Platen Cover.
2. Peel off the Platen Cushion.

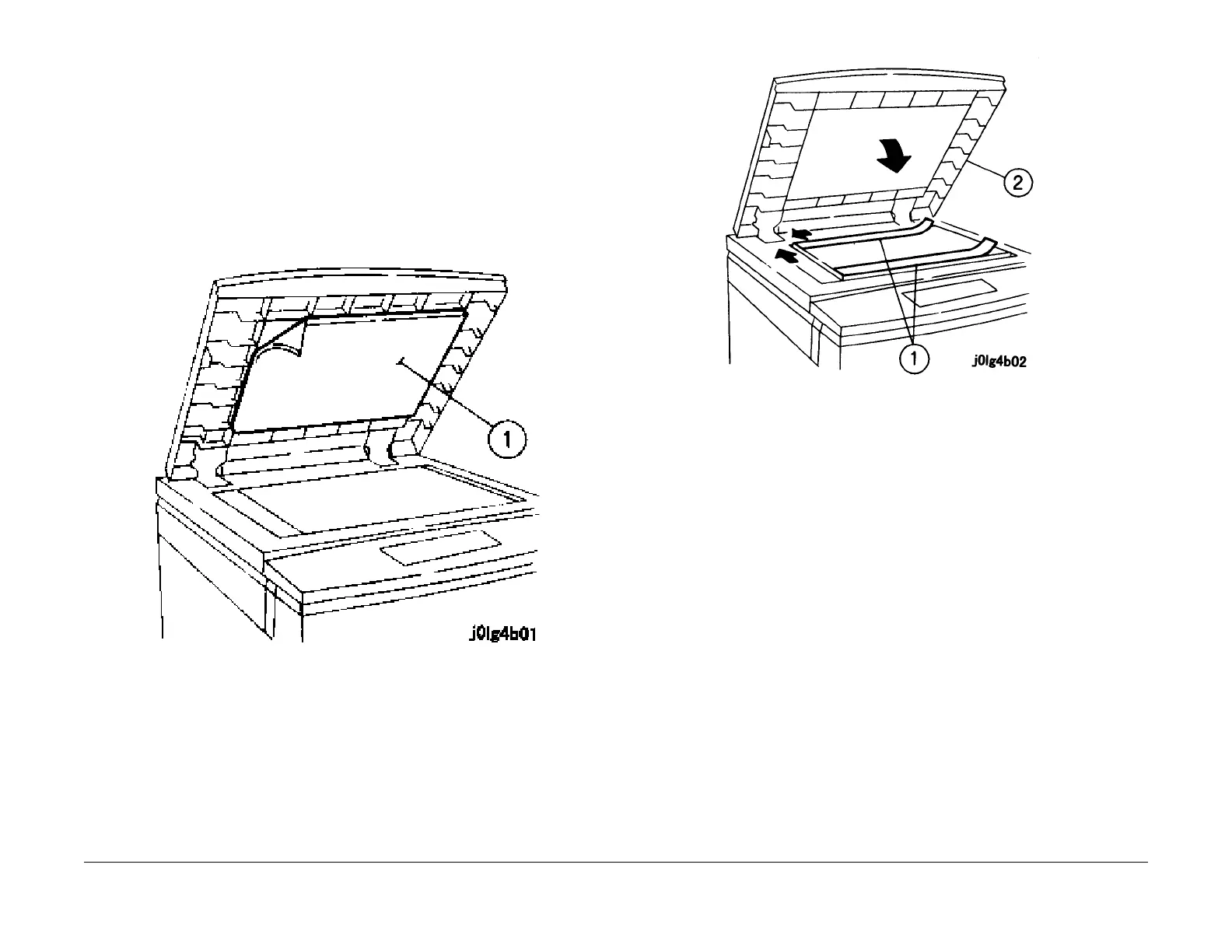

Figure 1 Remove the Platen Cushion
Installation
NOTE: After peeling off the Platen Cushion, completely remove the tape from the Platen
Cover.
1. Install the Platen Cushion (Figure 2).
1.
Remove the seal.
2. Push the Platen Cushion in the direction of the arrow.
3. Slowly lower the Platen Cover and push it onto the Platen Cushion.
Figure 2 Install the Platen Cushion
