Xerox DocuColor 12/DCCS50 User Manual

1/05
10-18
DocuColor 12/DCCS50
Switched DC Power
Reissue
Principles of Operation

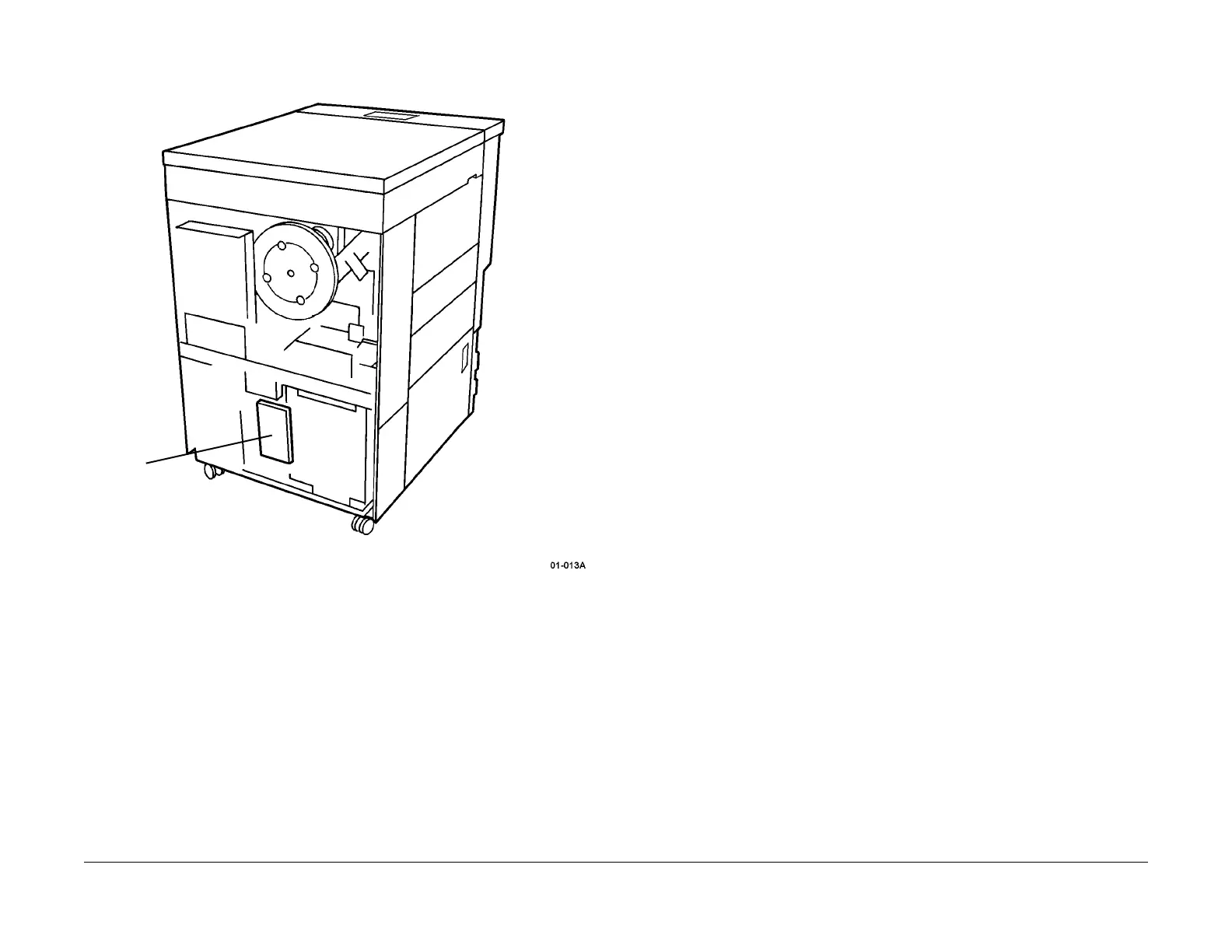

Figure 2 IDFE LVPS Location
IOT Low Voltage Power Supply (IOT LVPS)
The IOT LPVS has four outputs:
• +5 VDC at 11 amps
• +12 VDC at 1.8 amps
• -12 VDC at 1.0 amps
• +24.5 VDC at 17 amps
Figure 3 and Fi
gu
re 4 show the assemblies supplied by the IOT LVPS. Figure 5 shows the
location of the IOT LVPS, Distribution PWBA and IOT Drive PWBA.
IDFE LVPS
(Behind AC
Driver PWBA)
