1/05
4-5
DocuColor 12/DCCS50
REP 1.3.1, REP 1.4.1
Repairs and Adjustments
Reissue

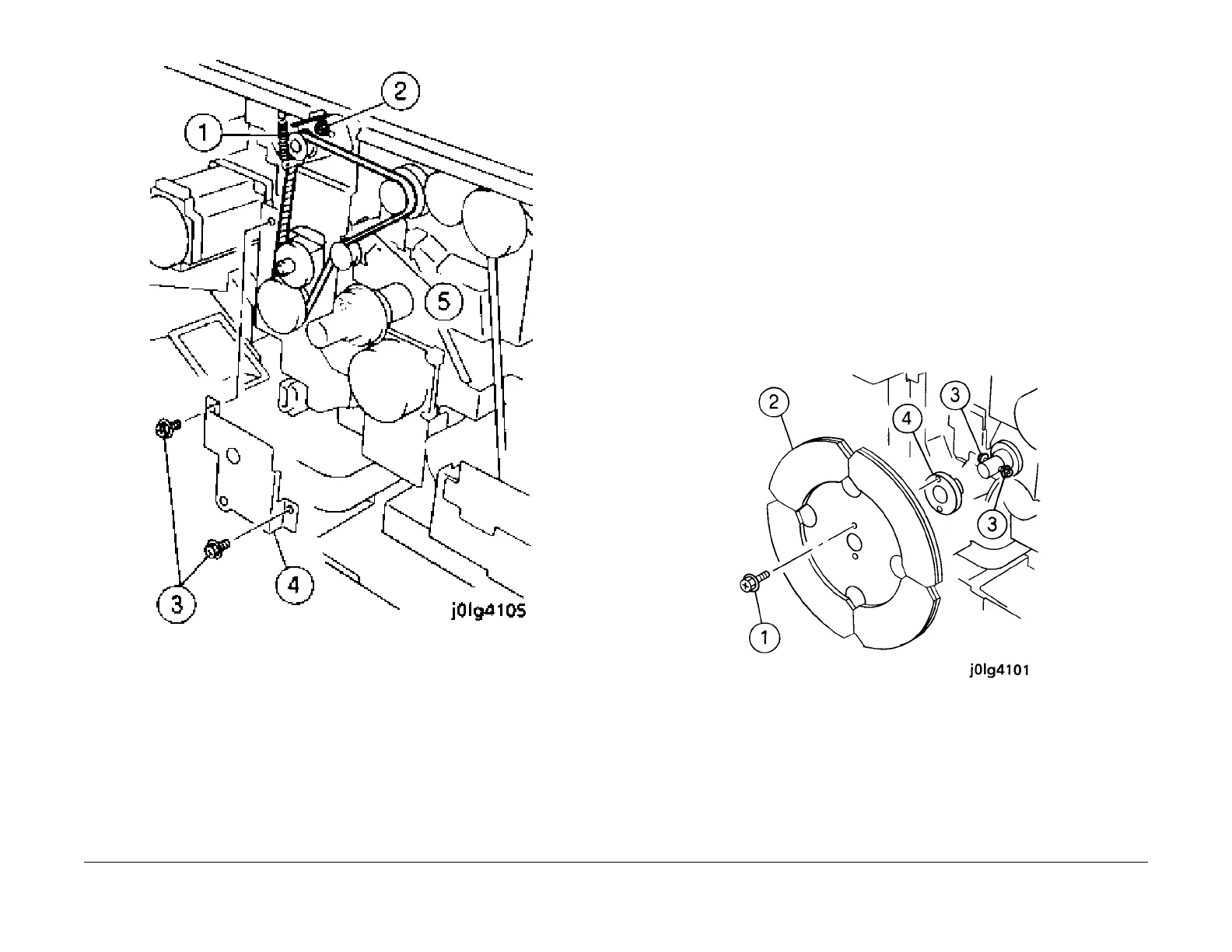

Figure 5 Removing the Belt
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 1.4.1 Belt (2nd BTR, Auger)
Parts List on PL 1.4
Removal
WARNING
Turn the power off and disconnect the power plug.
1. Remove the IOT Rear Cover (PL 11
.3 Item 7)
2. Remove the Toner Waste Bottle.
3. Open the IOT Control PWB Chassis (REP 9.2.
1).
4. Remove the Flywheel and flange (Figu
re 1).
1. Remove the screws (2).
2. Remove the Flywheel.
3. Loosen the screws (2).
4. Remove the flange.
Figure 1 Removing the Waster Toner Auger
5. Remove the Waster Toner Auger (REP 5.
5.1).
6. Remove the Main Motor (Figure 2
).
1. Disconnect the connectors (2).
2. Remove the screws (4).
To Next Page
