1/05
4-184
DocuColor 12/DCCS50
REP 13.13.2, REP 13.14.1
Reissue
Repairs and Adjustments

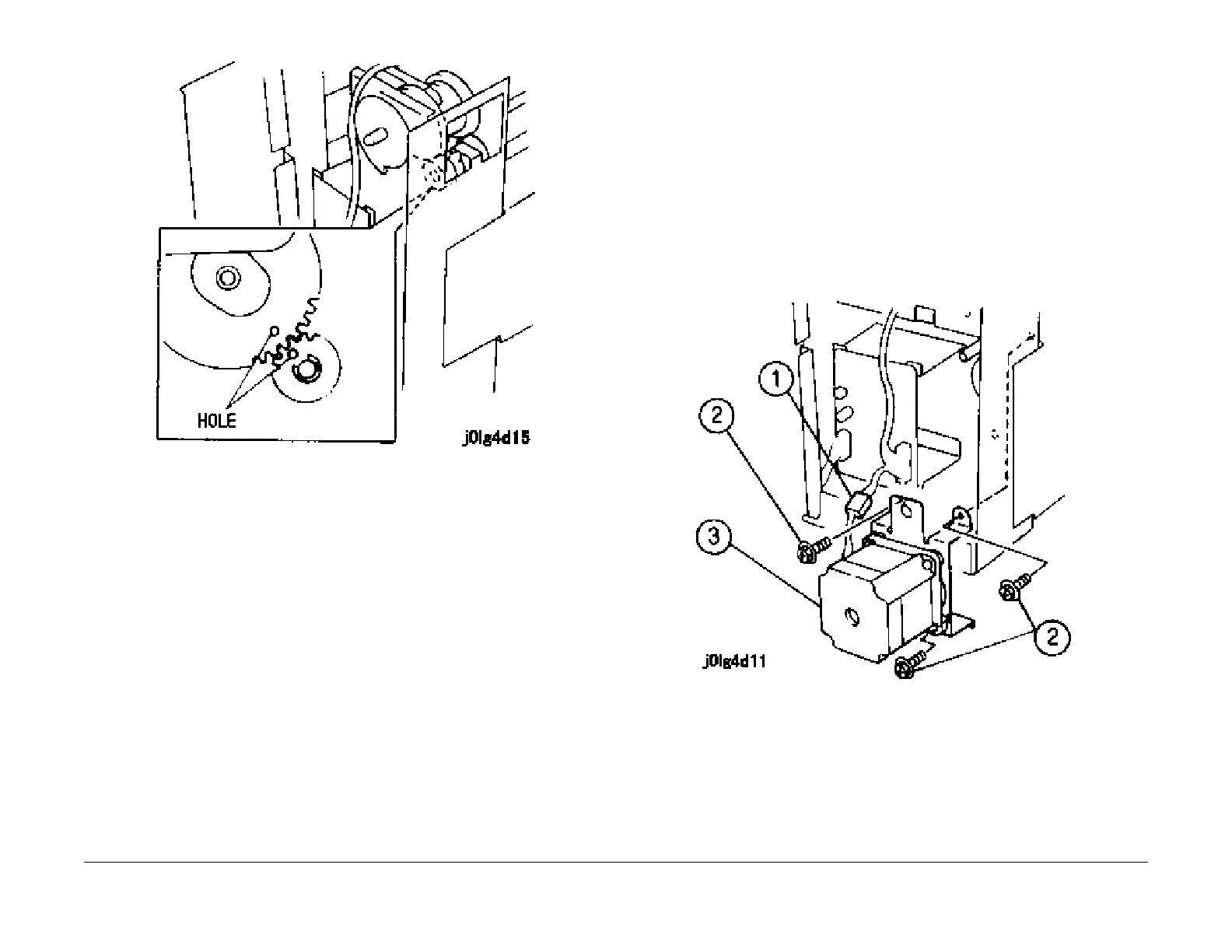

Figure 4 Install the Cam and Gear
2. Reinstall the remaining parts in the reverse order of disassembly.
REP 13.14.1 Decurler Stepping Motor
Parts List on PL 13.14
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the following parts:
a. Decurler rear cover (PL 13.11
)
b. Decurler top cover (PL 13.11
)
2. Remove the Decurler Stepping Motor (Figure 1
).
1. Disconnect the connector.
2. Remove the screws (3).
3. Remove the decurler stepping motor.
Figure 1 Decurler Stepping Motor
Installation
1. Reinstall the parts in the reverse order of disassembly.
