1/05
4-133
DocuColor 12/DCCS50
REP 8.8.1
Repairs and Adjustments
Reissue
REP 8.8.1 External H/R Heater Rod
Parts List on PL 8.8
Removal
WARNING
Turn power off and disconnect the power plug.
CAUTION
Since the Fuser is very hot, wait until the Fuser becomes sufficiently cold.
CAUTION
Do not touch the glass surface of the Heater Rod.
I
f the glass surface is accidentally touched,
wipe it with a dry cloth.
1. Open the Front Door.
2. Remove the Fuser Unit (REP 8.1.
1).
3. Remove the following parts:
a. Front Cover (PL 8.
1)
b. Top Cover (PL 8.
2)

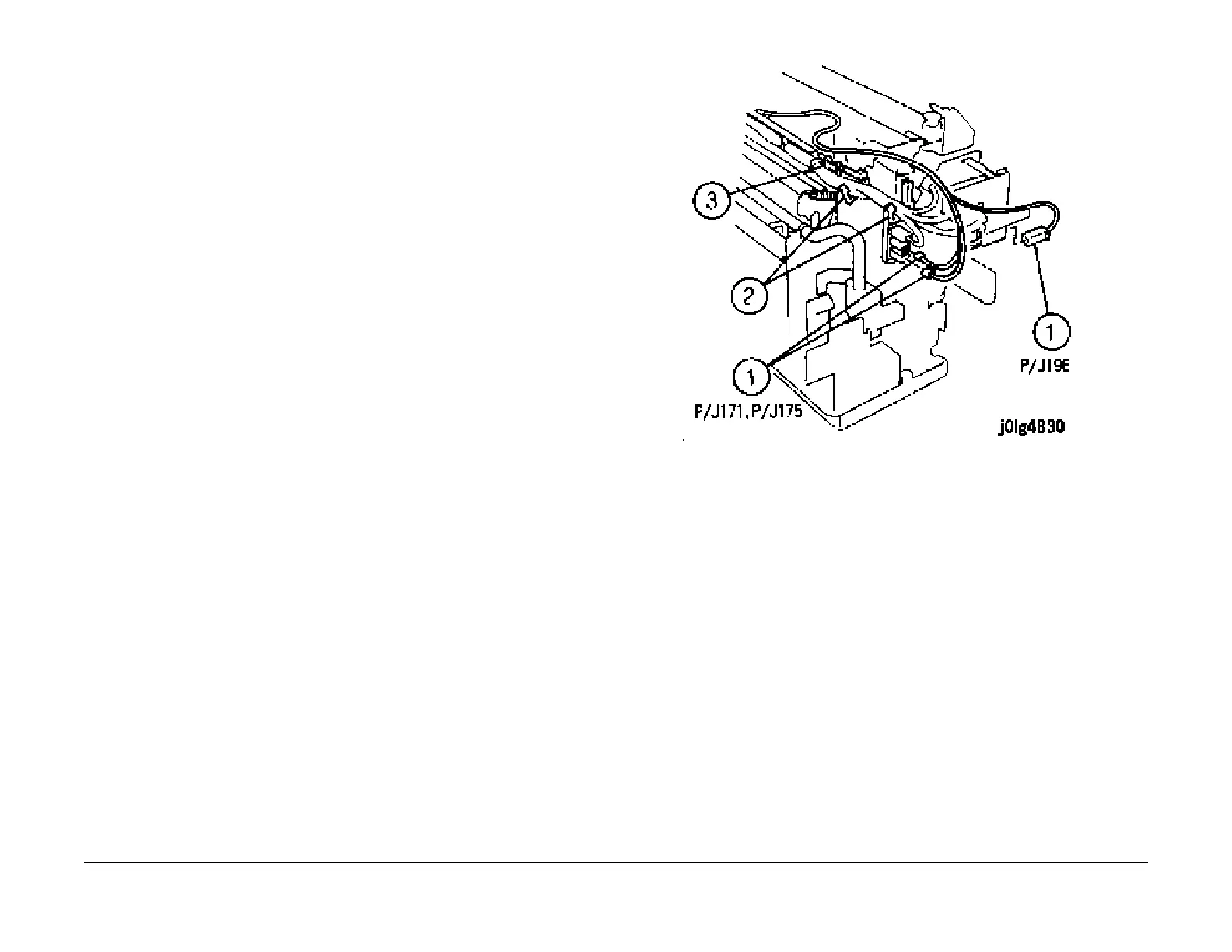

4. Disconnect the connectors (Figure 1).
1.
Disconnect the connectors (3).
2. Release the clamps (2) and remove the wire.
3. Remove the wire from the saddle edge.
Figure 1 Disconnect the Connectors (Front of Fuser)
5. Disconnect the connectors (Figur
e 2).
1. Disconnect the connectors (2).
2. Release the clamp and remove the wire.
3. Remove the wire from the saddle edge.
To Next Page
