1/05
4-134
DocuColor 12/DCCS50
REP 8.8.1
Reissue
Repairs and Adjustments

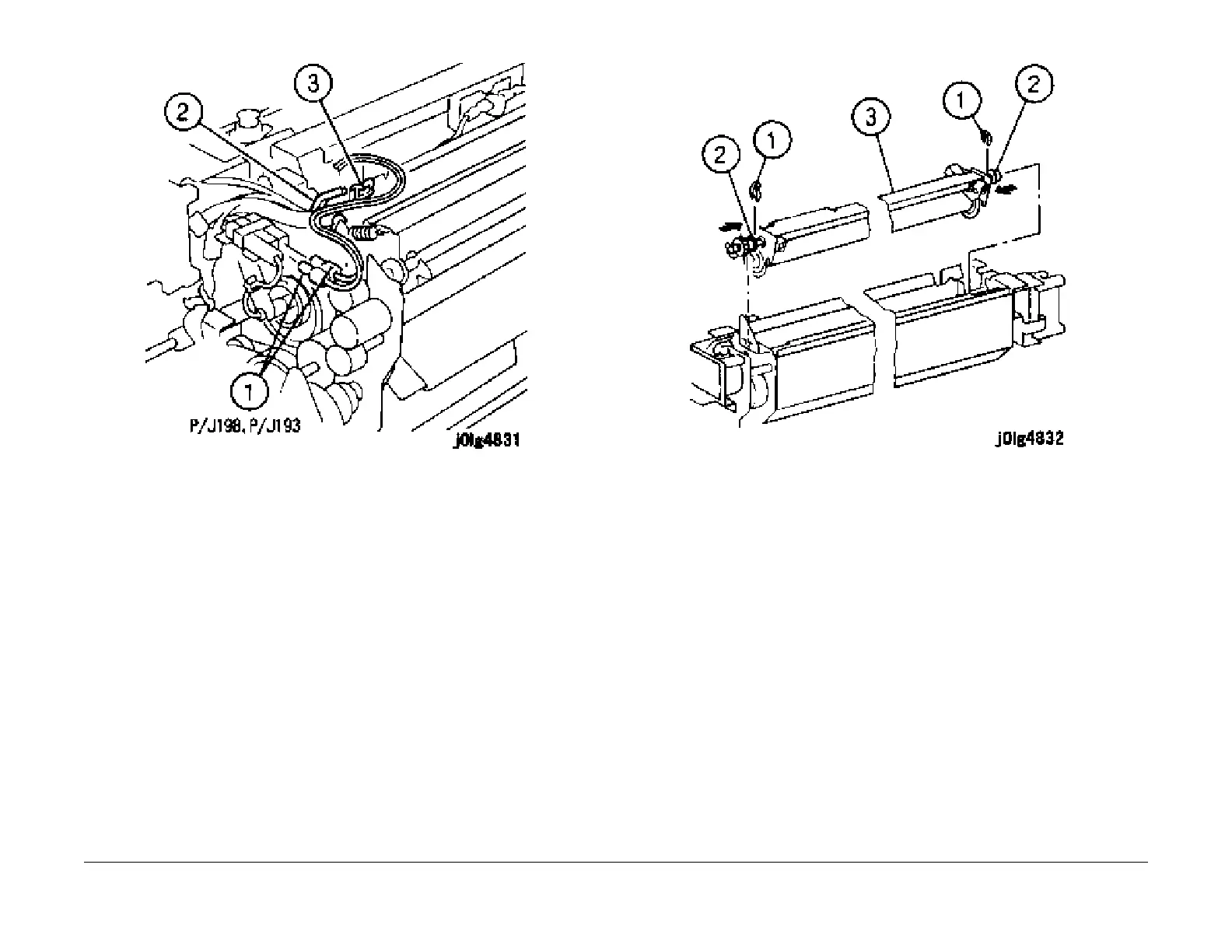

Figure 2 Disconnect the Connectors - Rear of Fuser
6. Remove the External Heat Roll Assembly (Figure 3).
1.
Remove the KL-clips (2).
2. Move the bearing in the direction of the arrow.
3. Remove the External Heat Roll Assembly.
Figure 3 Remove the External Heat Roll Assembly
7. Remove the brackets (F
igure 4).
1. Release the clamps (2) and remove the wire.
2. Remove the screws (2).
3. Remove the brackets (2).
4. Clean the External Heat Roll Assembly.
