Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-76
DocuColor 12/DCCS50
REP 15.1.20, REP 15.1.21
Reissue
Finisher/Sorter
REP 15.1.20 SCT Pinch Roll
Parts List on PL 18.13
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Rear Upper Cover (REP 15.3.
7).
2. Remove the SCT Pinch Roll (Figu
re 1).
1. Remove the SCT Exit Cover.
2. Remove the Mailbox Rear Lower Cover.
3. Remove the four screws securing the SCT Exit Upper Chute, in order to provide
access to
the Pinch Rolls.
4. Remove the appropriate Pinch Roll(s).

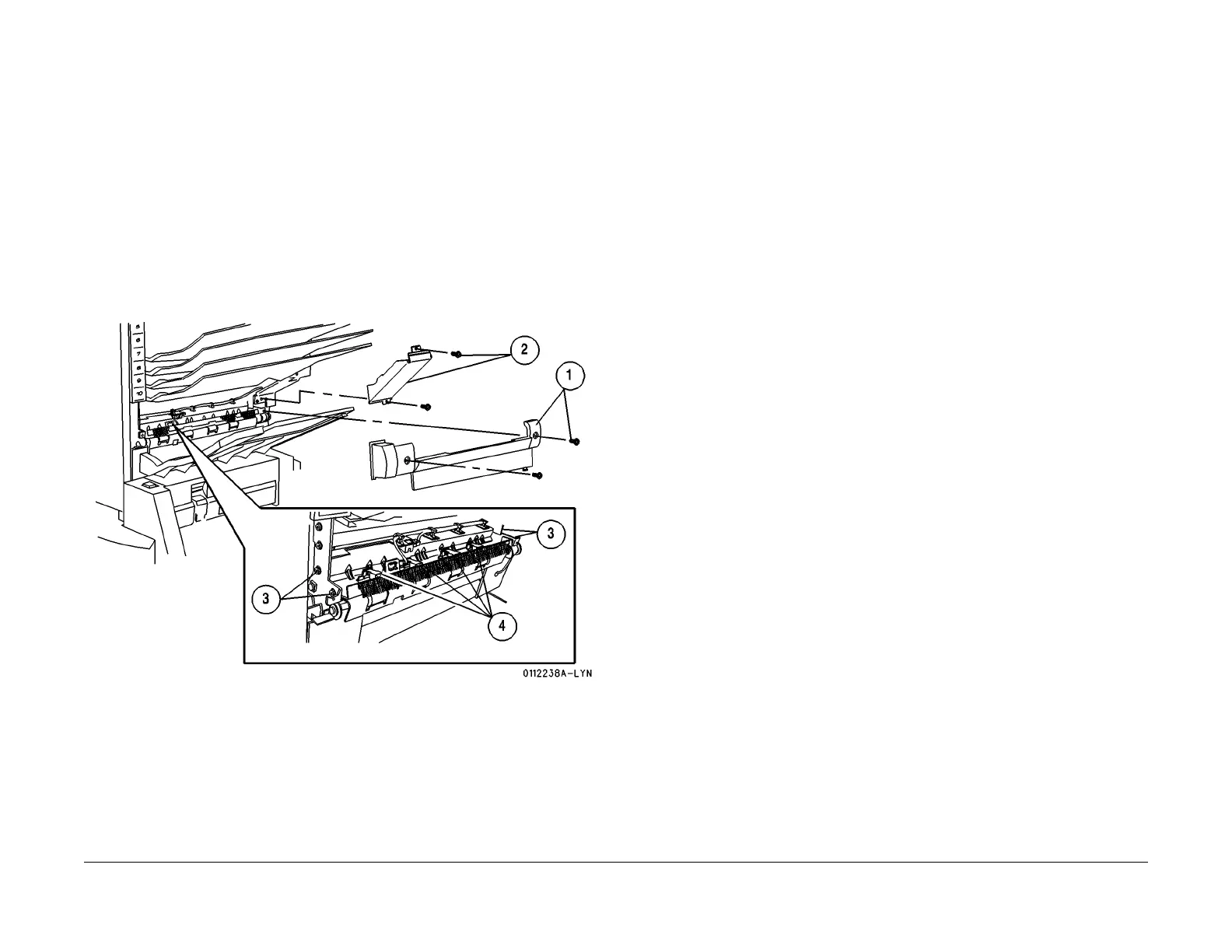

Figure 1 Remove the SCT Pinch Roll
Replacement
Reinstall the SCT Pinch Roll in the reverse order of disassembly.
REP 15.1.21 Finisher Transport Roll 1
Parts List on PL 18.9
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Rear Upper Cover (REP 1
5.3.7).
2. Remove the Rear Lower Cover (REP 1
5.3.15).
3. Remove the Mailbox Door Assembly (REP 15.3.
5).
4. Remove the Stapler Door Assembly (REP 15.3.
2).
5. Remove the wire harness from the Finisher Transport Motor Bracket (PL 18.9 item
10).
6. Remove the Finisher Transport Motor Bracket from the Finisher (3 screws).
7. Remove the Transport Roll 1 (Figur
e 1).
1. On the rear of the Finisher Transport Roll shaft 1, remove the E ring, Stopper Collar,
Frict
ion Clutch, Pulley and the Bearing.
2. On the front of the Finisher Transport Roll shaft 1, remove the E ring and Bearing.
3. Remove the Finisher Transport Roll from the front of the Finisher.
Replacement
1. Install the Finisher Transport Roll 1 into the frame in reverse order of removal.
