Xerox DocuColor 12/DCCS50

1/05
8d-64
DocuColor 12/DCCS50
REP 15.1.5
Reissue
Finisher/Sorter
REP 15.1.5 Entrance Lower Chute and Pinch Roll
Parts List on PL 18.6
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Decurler Door Assembly (REP 15.
3.4).
2. Remove the Decurler Rear Cover (REP 15.
3.13).
3. Remove the Decurler Top Cover (REP 15.
3.12).
4. Remove the Decurler Inner Cover (REP 15.3.
14).
5. Remove the Entrance Lower Chute (Figure 1
).
1. Remove screws (4).
2. Disconnect P/J
664 and P/J665.
3. Remove the Entrance Lower Chute.

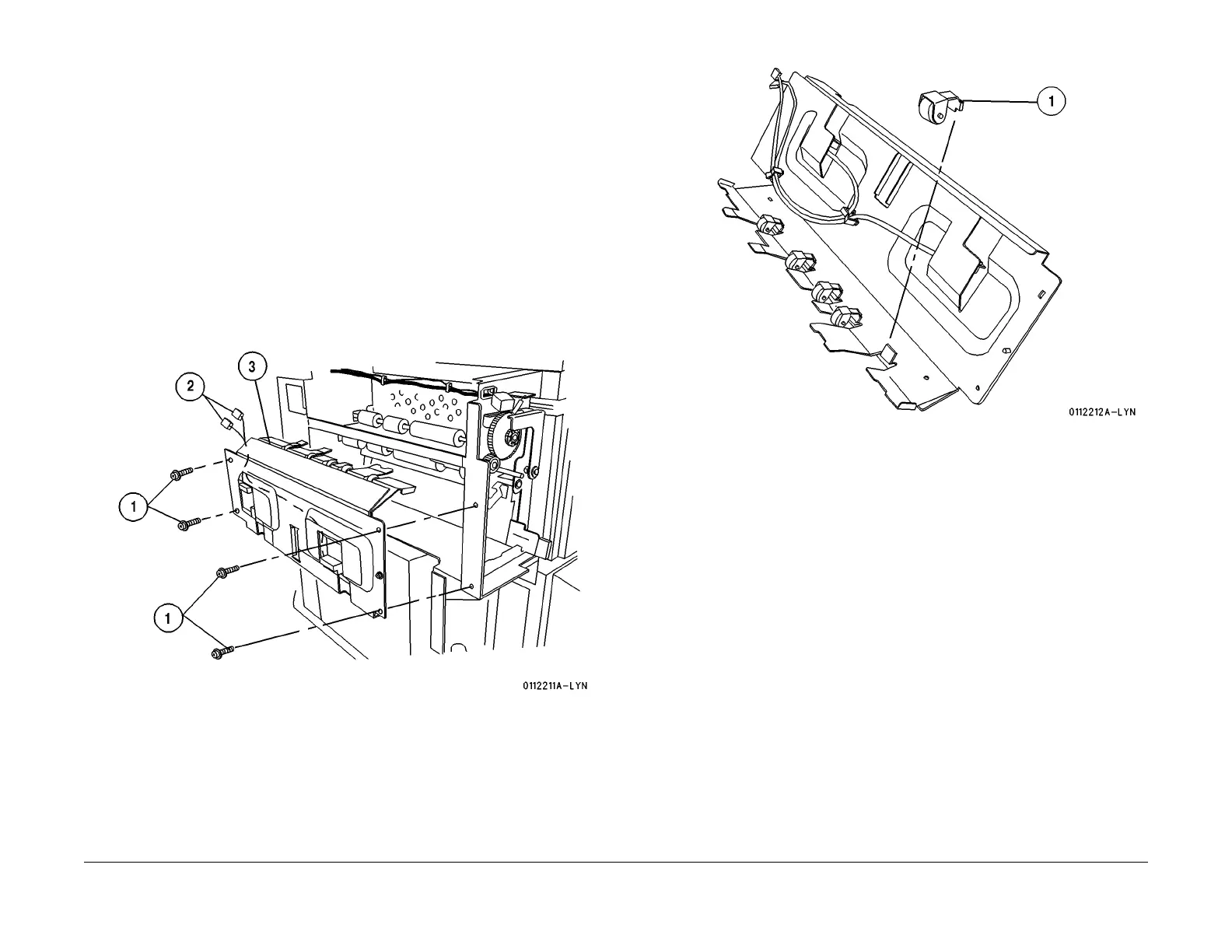

Figure 1 Remove the Entrance Lower Chute
6. Remove the Pinch Rolls (Figu
re 2).
1. Remove Pinch Rolls (5) from the Entrance Lower Chute.
Figure 2 Remove the Pinch Rolls
Replacement
Reinstall the Entrance Lower Chute and Pinch Roll in the reverse order of disassembly.
