1/05
4-122
DocuColor 12/DCCS50
REP 8.3.2, REP 8.3.3
Reissue
Repairs and Adjustments

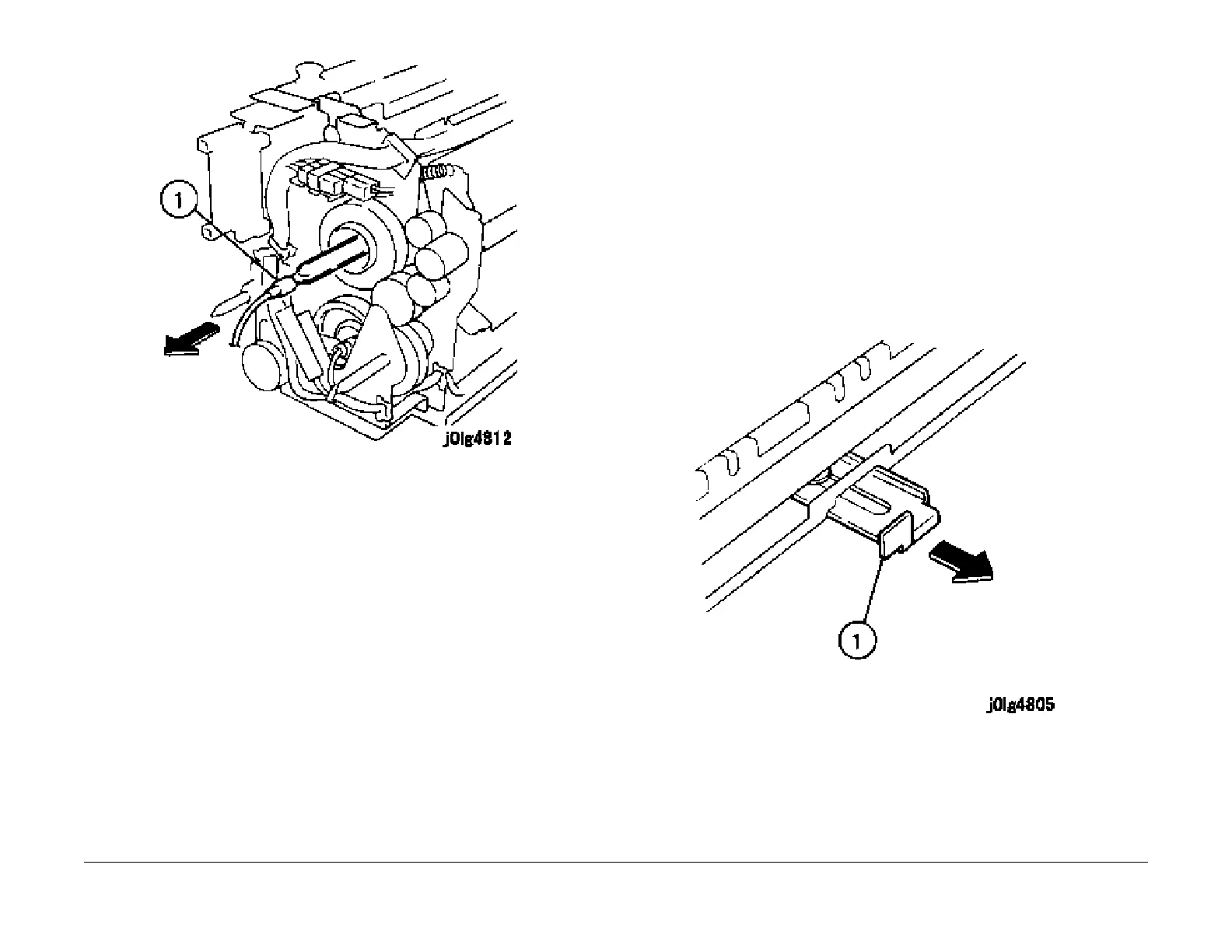

Figure 3 Remove the Heat Roll Heater Rod
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 8.3.3 Pressure Roll
Parts List on PL 8.3
Removal
NOTE: After replacing the Pressure Roll, reset the HFSI counter. Enter the dC135 HFSI
Counter List Diag. Screen (010-802).
WARNING
Turn power off and disconnect the power plug.
CAUTION
Since the Fuser is very hot, wait until the Fuser becomes sufficiently cold.
1. Open the Front Door.
2. Remove the Pressure Roll Heater Rod (R
EP 8.3.
4).
3. Pull out the Stand Plate (Figur
e 1).
1. Pull out the Stand Plate.
Figure 1 Pull out the Stand Plate
4. Remove the Fuser Top Cover (PL 8.2).
manuals4you.commanuals4you.com
To Next Page
