Xerox DocuColor 12/DCCS50 User Manual

1/05
4-121
DocuColor 12/DCCS50
REP 8.3.2
Repairs and Adjustments
Reissue

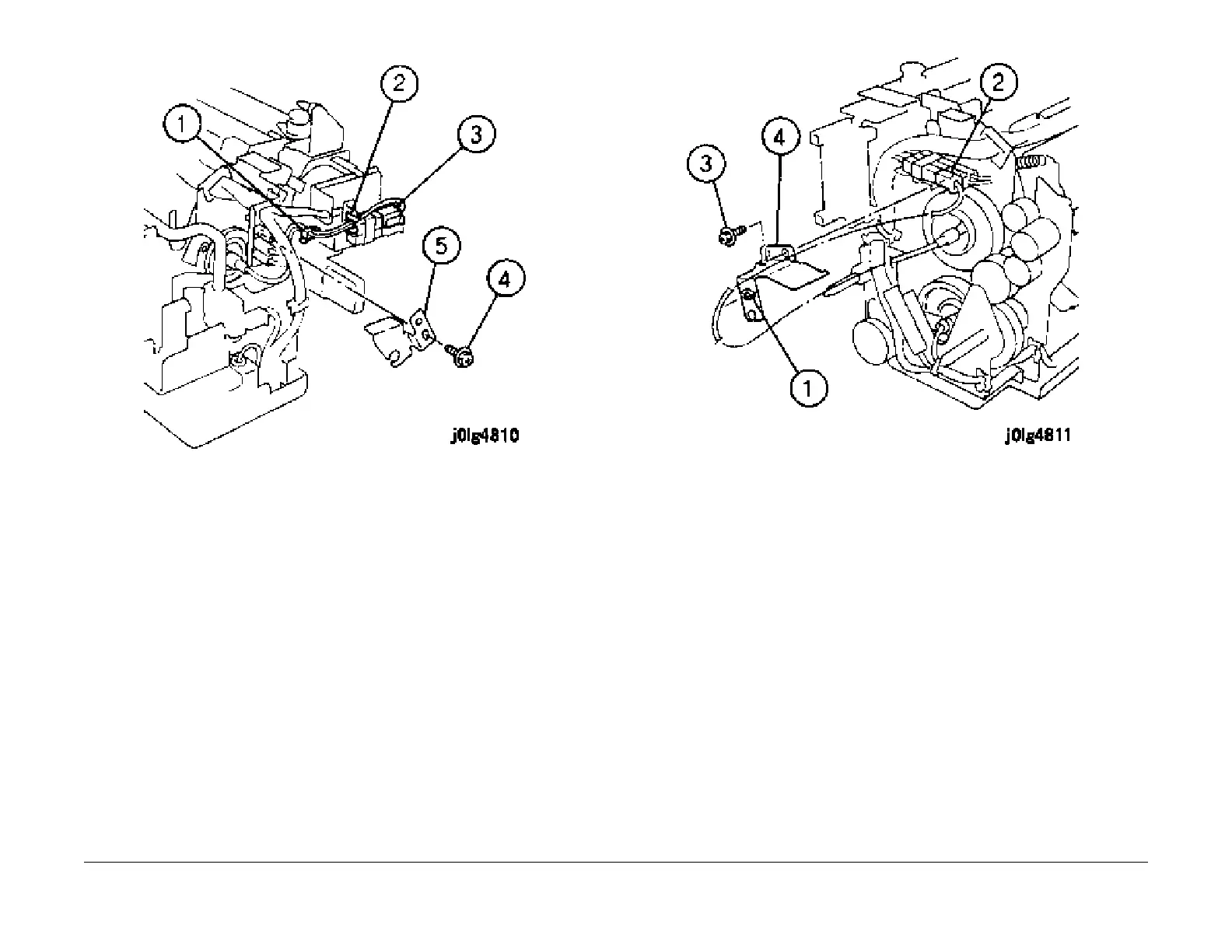

Figure 1 Remove the Bracket (Front of Fuser)
5. Disconnect the connector (Figu
re 2).
1. Release the clamp and remove the wire.
2. Disconnect the connector.
3. Remove the screw.
4. Remove the bracket.
Figure 2 Disconnect the Connector (Rear of Fuser)
6. Remove the Heat Roll Heater Rod (F
igure 3).
1. Remove the Heat Roll Heater Rod.
