DocuColor 12/DCCS50
REP 20.1
Electronic Pre-Collation (EPC)
Reissue
REP 20.1 EPC PWB
Parts List on PL 20.1
Removal
CAUTION
Use the ESD Kit and the established ESD procedures when replacing the EPC PWB. The EPC
PWB
can be damaged by electrostatic discharge.
1. For DCCS50:
• Switch Off the power. Wait 30 seconds, then unplug the power cord. Disconnect the
IDFE
DDI Cables.
For DC12 with attached Fiery or Splash DFE:
• Perform the correct power down procedure. Disconnect
the DFE DDI cables.
For DC12 without an attached DFE:
• Switch off the power and disconnect the power cord.
2. Access the EPC PWB (Figu
re 1).

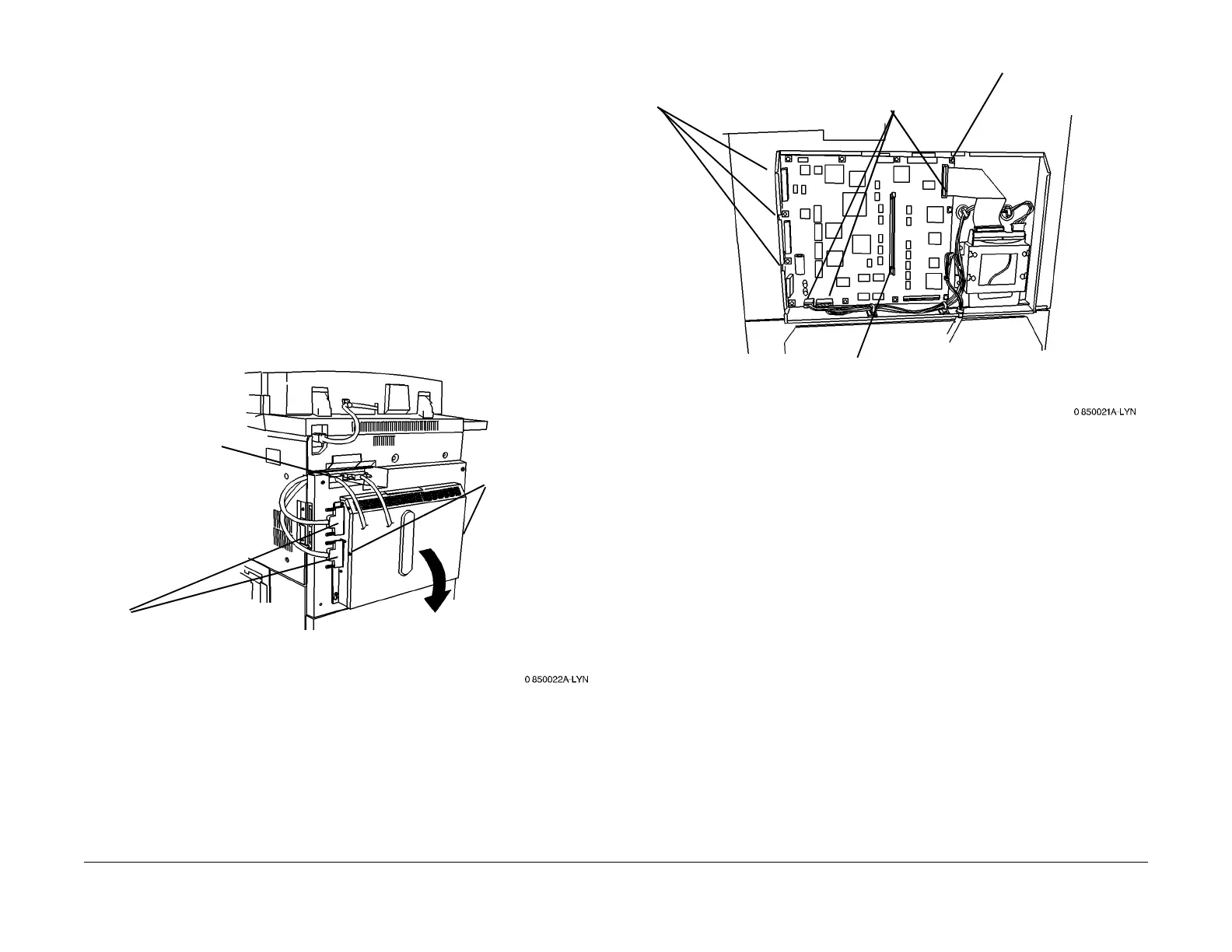

Figure 1 Accessing the EPC PWB
3. Remove the EPC PWB (Figure 2).
Figure 2 Removing the EPC PWB
Replacement
1. Reinstall the parts in the reverse order of disassembly.
2. Initialize the EPC (GP 1).
1
Disconnect the
Connectors (2)
2
Loosen the screws
(6)
3
Lower the Cover
1
Disconnect the
Connectors (3)
2
Remove the Mem-
ory PWB
3
Remove the
screws (12)
4
Remove the screws (3)
