1/05
8a-20
DocuColor 12/DCCS50
REP 2.7.9
Reissue
High Capacity Feeder
REP 2.7.9 HCF Control PWB
Parts List on PL 15.16
Removal
WARNING
To avoid electrical shock, switch-OFF the Main Power Switch and disconnect the Power
Cord.
1. Remove the HCF Rear Cover.
2. Remove the Control PWB (Figu
re 1).

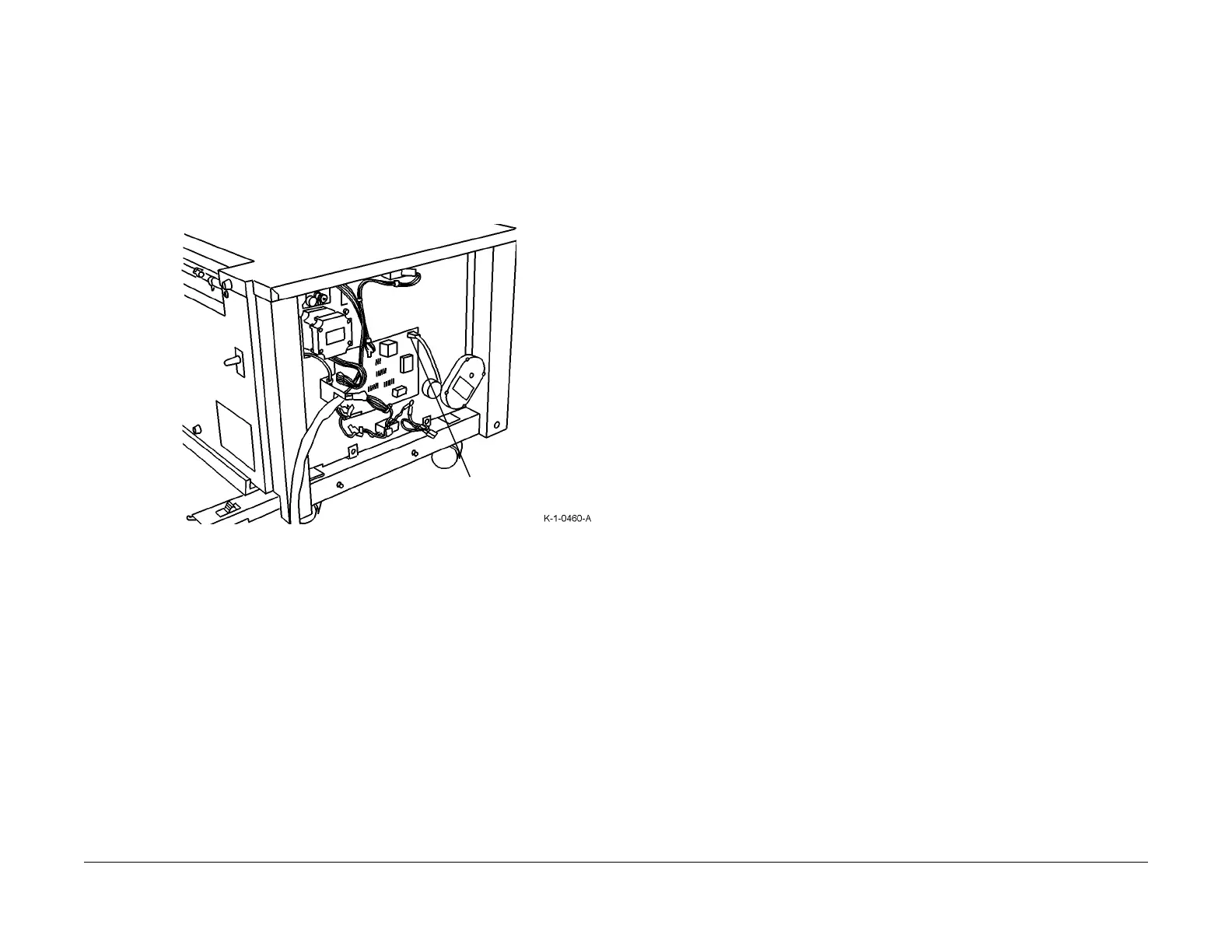

Figure 1 Removing the Control PWB
Replacement
1. Reverse the above procedures to replace the Feeder Control PWB.
Disconnect the P/Js
and remove the PWB
