1/05
4-158
DocuColor 12/DCCS50
REP 12.3.2
Reissue
Repairs and Adjustments
REP 12.3.2 DADF Control PWB
Parts List on PL 12.3
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Rear Cover (PL 12.1).
2. Remov
e the DADF Control PWB (Figu
re 1).
1. Disconnect the connectors (7).
2. Remove the DADF Control PWB from the PWB supports (3).

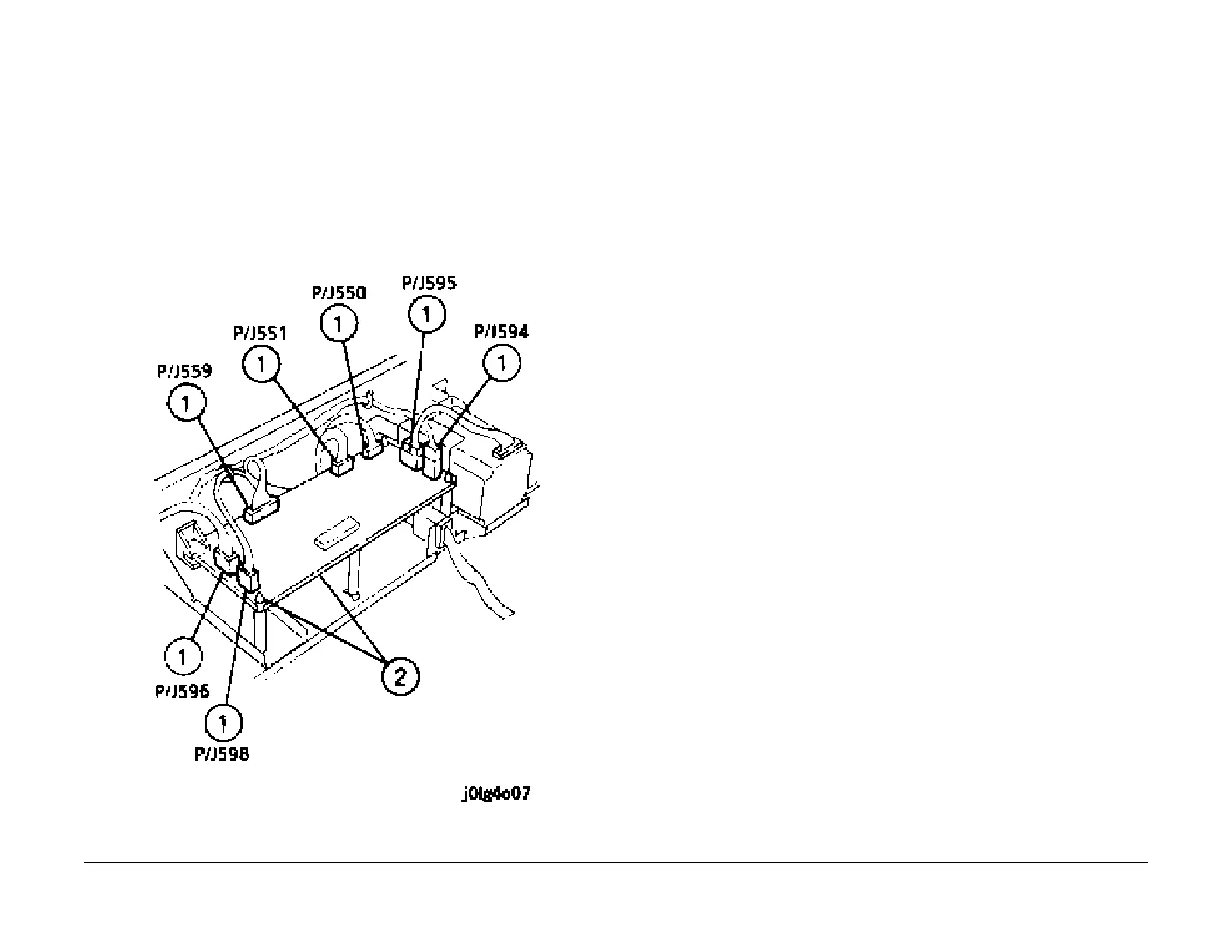

Figure 1 Remove the DADF Control PWB
Installation
1. Reinstall the parts in the reverse order of disassembly.
