1/05
8d-68
DocuColor 12/DCCS50
REP 15.1.10
Reissue
Finisher/Sorter
REP 15.1.10 Decurler Drive Roll 2
Parts List on PL 18.8
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Reflector and Cam (REP 15.1.
3).

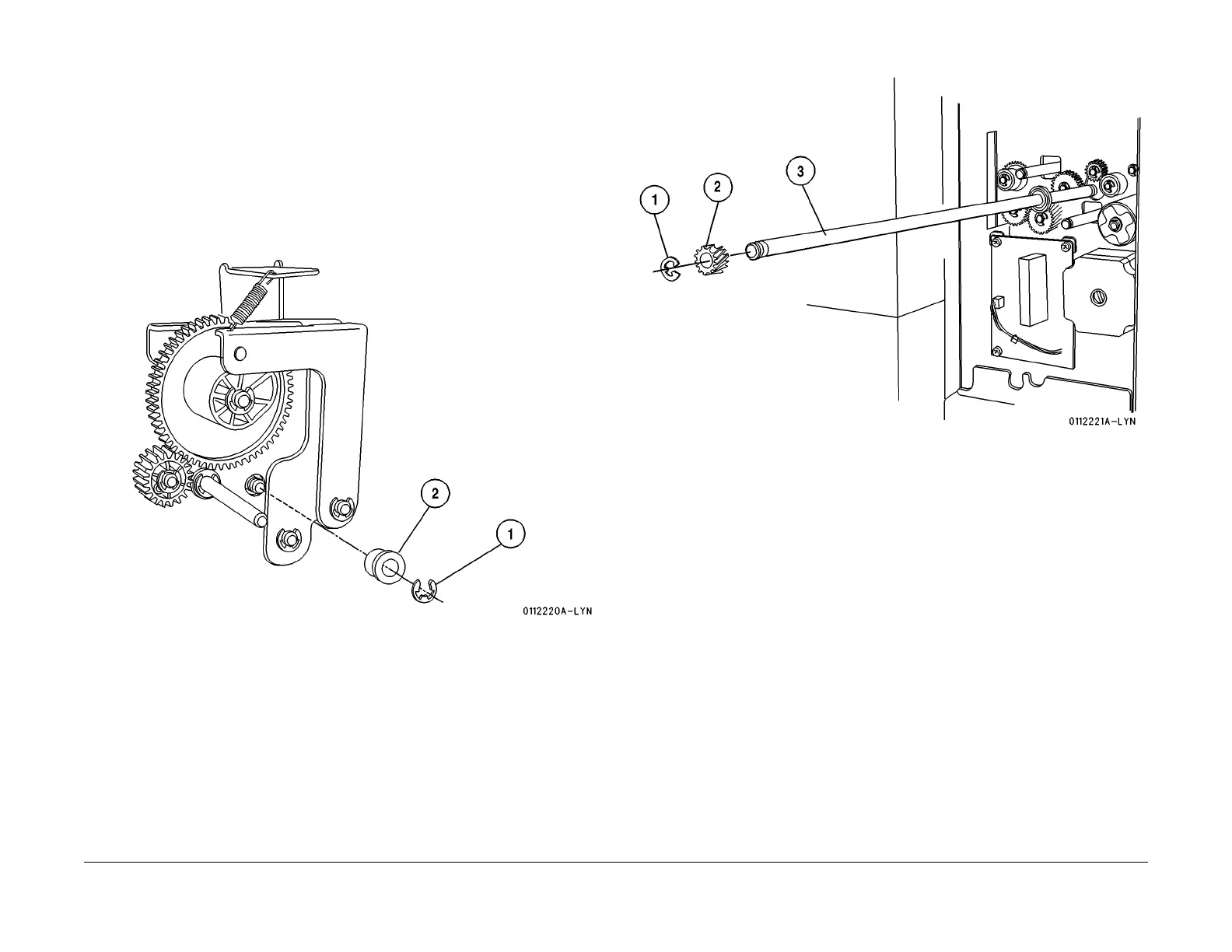

2. At the front of the Finisher, remove the Bearing (Figu
re 1).
1. Remove the E-Clip.
2. Remove the Bearing.
Figure 1 Remove the Bearing
3. At the rear of the Finisher, remove the Decurler Drive Roll 2 (Figure 2).
1.
Remove the E-Clip.
2. Remove the gear.
3. Remove the Bearing and Drive Roll from the rear of the Finisher.
Figure 2 Remove the Decurler Drive Roll 2
Replacement
1. Install the Bearing at the gear end of the shaft, into the frame, prior to installing the Drive
Roll.
2. Reinstall the remaining components in the reverse order of disassembly.
