DocuColor 12/DCCS50
PL 12.6
Parts Lists
Reissue

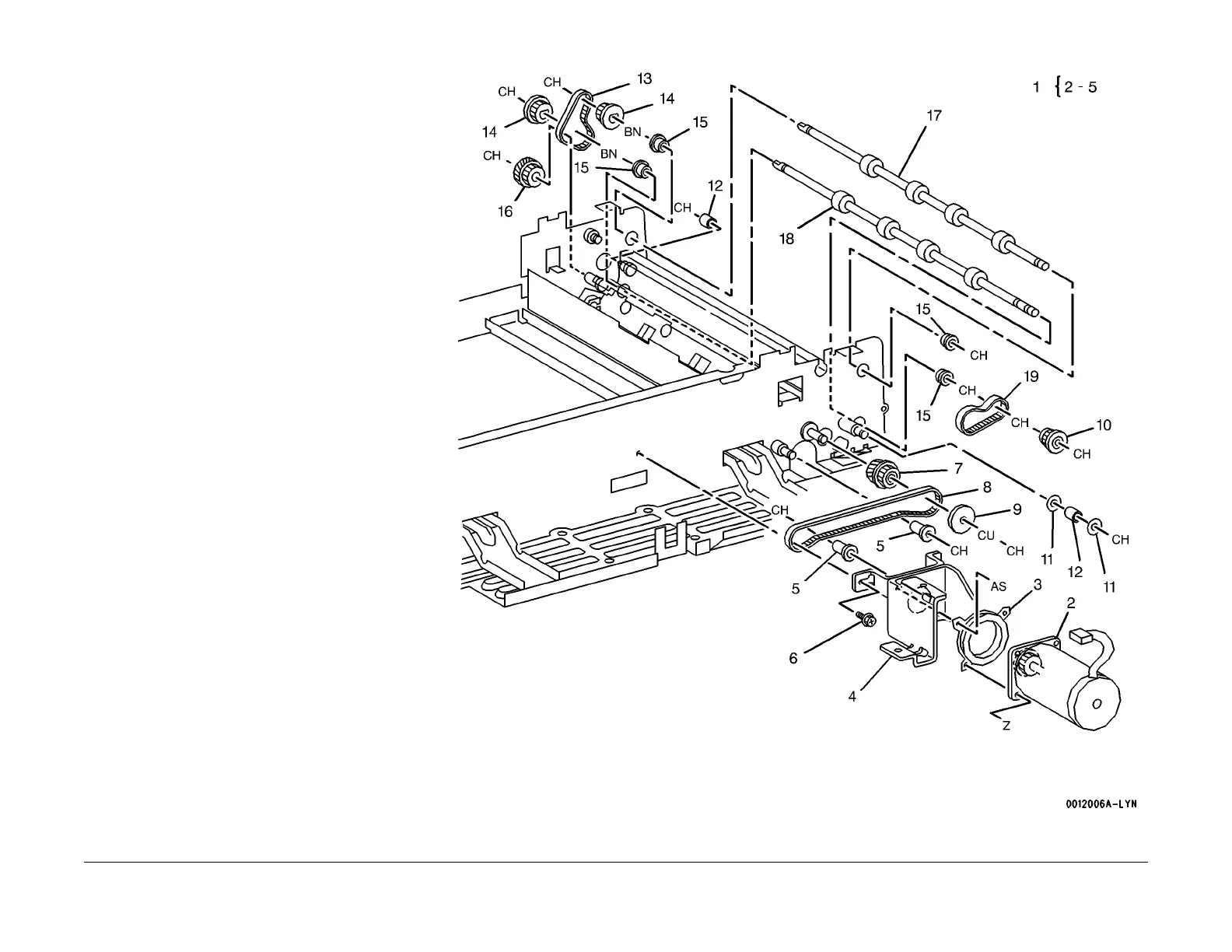

PL 12.6 DADF Belt Motor, Duplex Roll
Item Part Description
1 127K83520 DADF Belt Motor Assembly (REP
12.6.1 )
2 – D
ADF Belt Motor (P/O PL 12.6
It
em
1)
3 – Damper (P/O PL 12.6 Item 1)
4 – Bracket (P/O PL 12.6 Item 1)
5 013P60566 Tension Roll
6 – Screw (Not Spared)
7 007K91871 Gear Pulley
8 023E92341 Belt
9 – Spacer (Not Spared)
10 020K91230 Pulley
11 – Spacer (Not Spared)
12 022E93660 Tension Roll
13 023E94140 Belt
14 020E21050 Pulley
15 – Bearing (Not Spared)
16 007E83260 Gear Pulley
17 022K37080 Duplex Roll (Upper)
18 022K37070 Duplex Roll (Lower)
19 023E12230 Belt
To Next Page
