1/05

5-243

DocuColor 12/DCCS50

PL 2.10

Parts Lists

Reissue

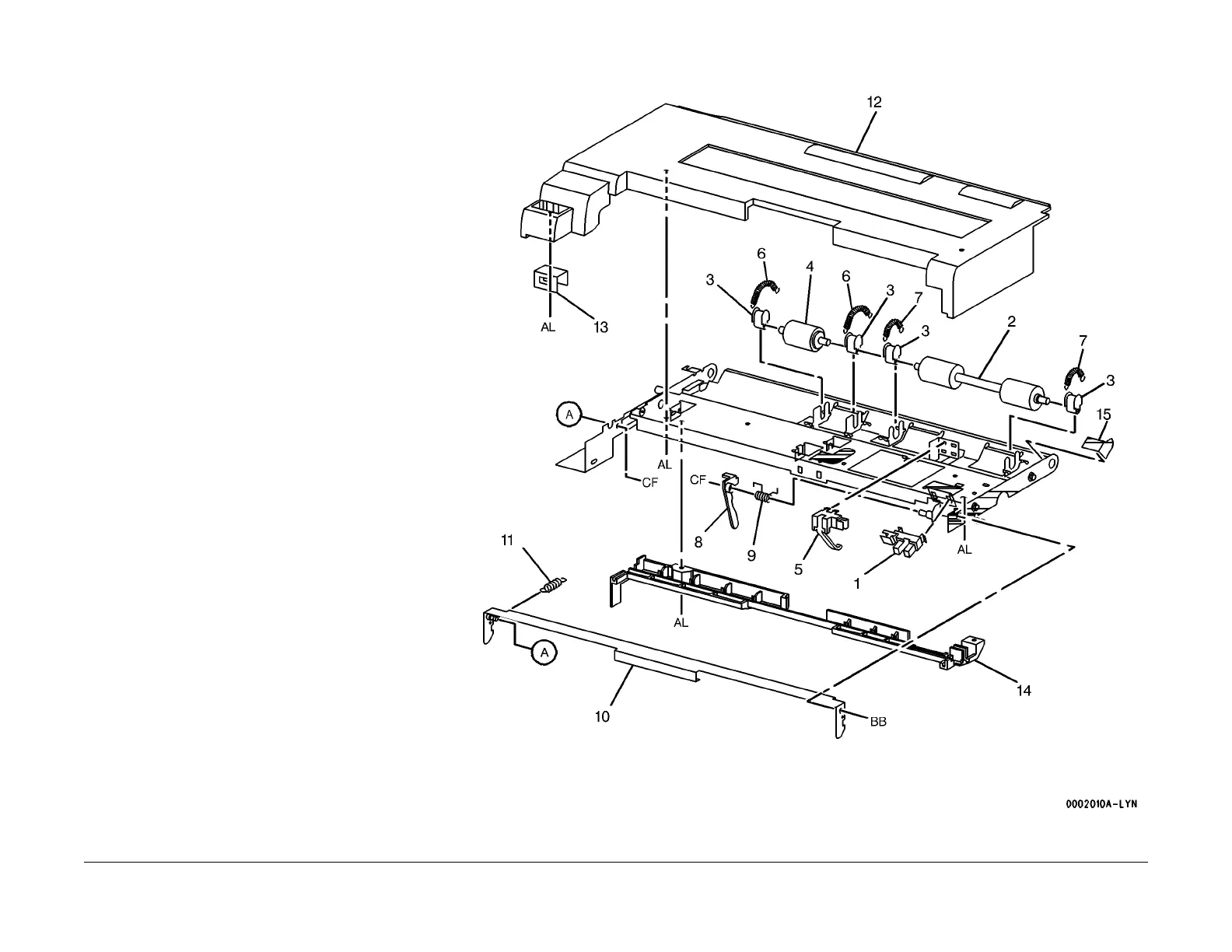

PL 2.10 Tray 5 Upper (Part 1 of 2)

Item Part Description

1 130E82190 Tray 5 Paper Sensor

2 059K08831 Pinch Roll

3 – Bearing (P/O PL 2.9 Item 14)

4 059E90770 Take Away Pinch Roll (P/O PL 2.9

tem 14)

5 130K580

70 Tray 5 Feed Sensor

6 009E56020 Spring

7 009E56030 Spring

8 120E13100 Actuator

9 809E09470 Spring

10 – Latch Lever (P/O PL 2.9 Item 14)

11 809E09410 Spring

12 – Upper Cover (P/O PL 2.9 Item 14)

13 – Latch Bracket (P/O PL 2.9 Item 14)

14 – Inner Cover (P/O PL 2.9 Item 14)

15 – Paper Guide (P/O PL 2.9 Item 14)
