Xerox DocuColor 12/DCCS50 User Manual

1/05
4-69
DocuColor 12/DCCS50
REP 5.3.3
Repairs and Adjustments
Reissue
REP 5.3.3 Cleaning Brush
Parts List on PL 5.3
Removal
WARNING
Turn power off and disconnect the power plug.
NOTE: When removing the Drum Unit, do not expose the Drum to direct sunlight or strong
light.
NOT
E: Do not touch the Drum surface.
1. Open the Front Door.
2. Remove the Drum (REP 5.
3.1).
3. Remove the gear (Figu
re 1).
1. Remove the gear.

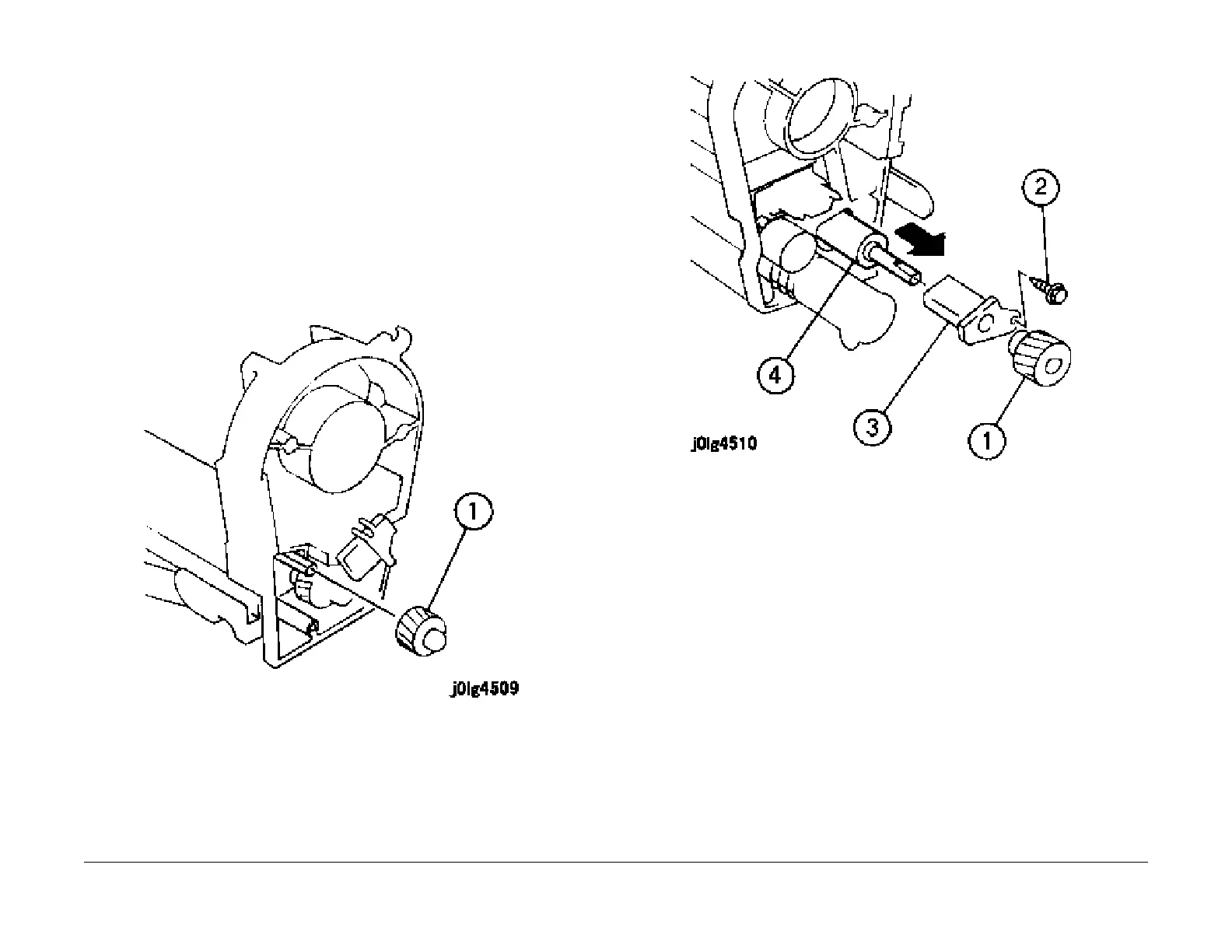

Figure 1 Remove the Gear
4. Remove the Cleaning Brush (Figur
e 2).
1. Remove the gear.
2. Remove the screw.
3. Remove the bearing.
4. Remove the Cleaning Brush.
Figure 2 Remove the Cleaning Brush
