Xerox DocuColor 12/DCCS50 User Manual

1/05
4-84
DocuColor 12/DCCS50
REP 6.3.1
Reissue
Repairs and Adjustments
REP 6.3.1 Toner Cartridge Housing (Cyan, Magenta,
Yellow, Black)
Parts List on PL 6.3
Removal
WARNING
Turn power off and disconnect the power plug.
NOTE: This page describes how to disassemble the Black Toner Cartridge Housing.
NOTE: Protect the floor by placing a sheet of paper on the floor.
1. Remove the Toner Cartridge Unit (R
EP 6.2.
1).
2. Remove the Toner Cartridge (Yellow/Black) (PL 6.2 It
em 1).

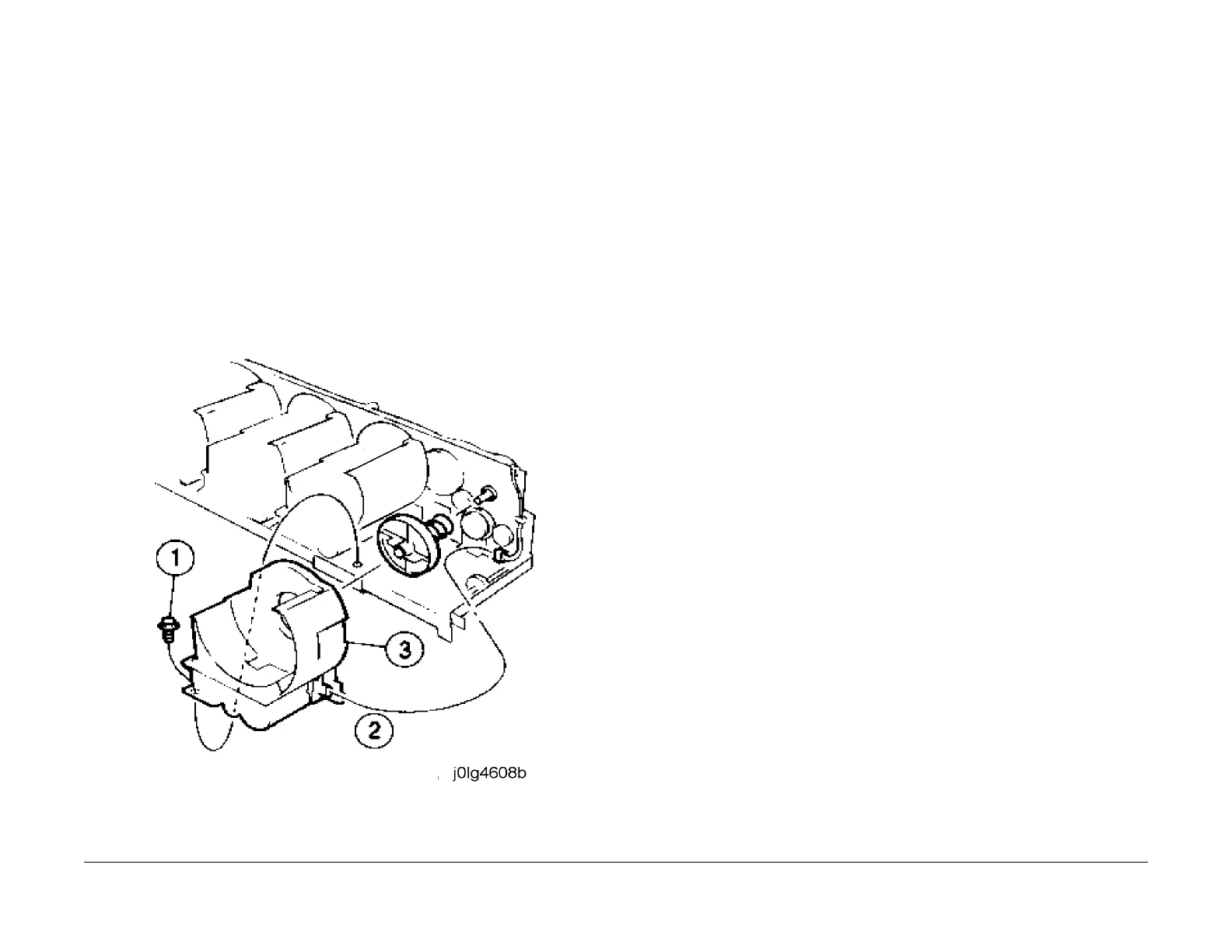

3. Remove the Toner Cartridge Housing (Figu
re 1).
1. Remove the screw.
2. Disconnect the connector.
3. Remove the Toner Cartridge Housing.
Figure 1 Remove the Toner Cartridge Housing
Installation
1. Reinstall the parts in the reverse order of disassembly.
