1/05
5-255
DocuColor 12/DCCS50
PL 2.22
Parts Lists
Reissue

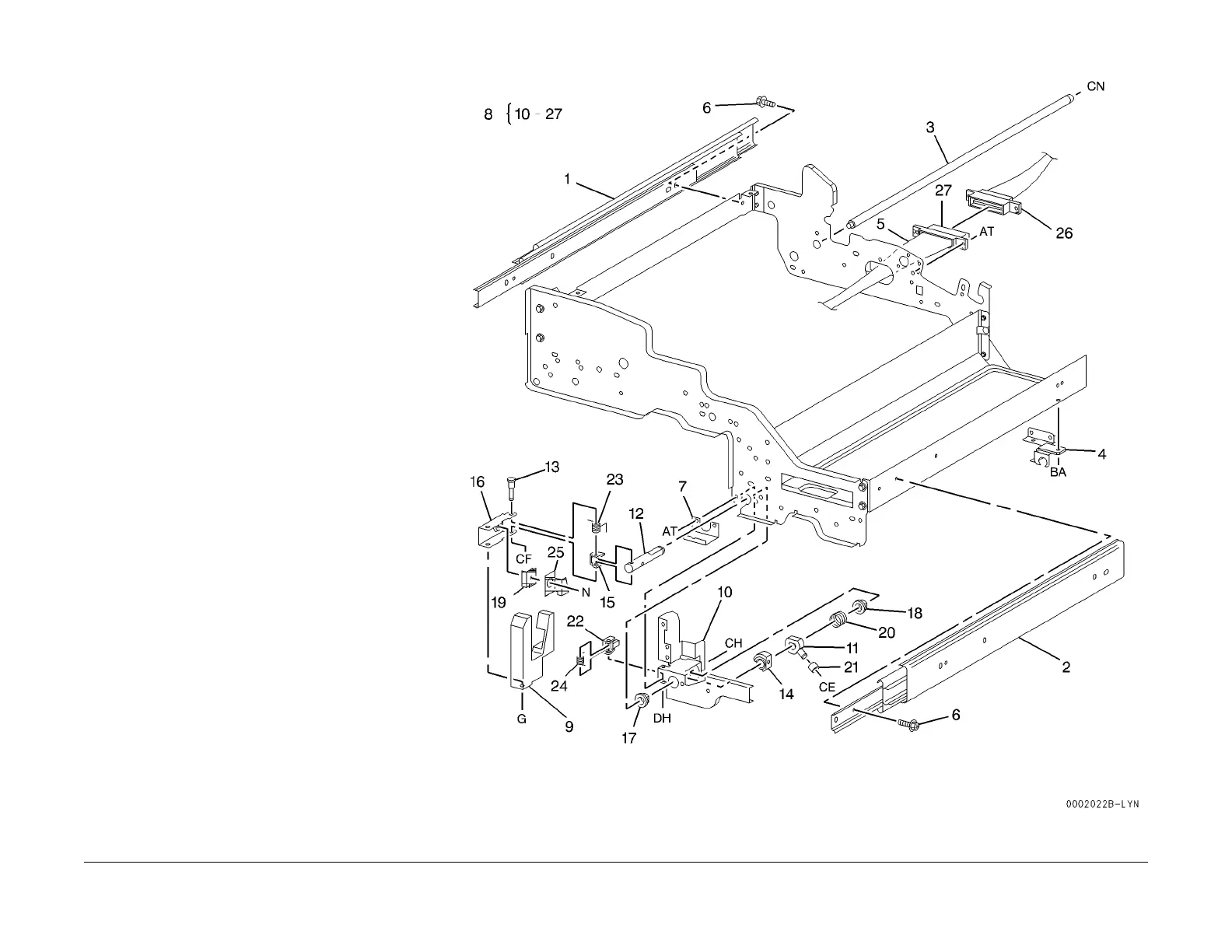

PL 2.22 Drawer Frame Component
Item Part Description
1 001E50590 Rail (Left)
2 001E46411 Rail (Right)
3 – Shaft (P/O PL 2.19 Item 14)
4 – Bracket (P/O PL 2.19 Item 14)
5 – Wire Harness (P/O PL 2.19 Item
14)
6 – Screw (P/O PL 2.19 Item 14)
7 – Stopper (P/O PL 2.19 Item 14)
8 003K85871 Latch Assembly
9 003K85851 Knob
10 – Bracket (P/O PL 2.22 Item 8)
11 003E37791 Latch
12 006E56620 Shaft
13 – Stud (P/O PL 2.22 Item 8)
14 008E93261 Cam
15 011E08111 Joint
16 – Handle (P/O PL 2.22 Item 8)
17 – Bearing (P/O PL 2.22 Item 8)
18 – Bearing (P/O PL 2.22 Item 8)
19 – Plate (P/O PL 2.22 Item 8)
20 809E09210 Spring
21 – Spacer (P/O PL 2.22 Item 8)
22 – Block (P/O PL 2.22 Item 8)
23 809E09171 Spring
24 809E09180 Spring
25 – Finger Guide (P/O PL 2.22 Item 8)
26 114E11390 Frame Connector
27 113E24020 Drawer Connector (P701)
To Next Page
