DocuColor 12/DCCS50
REP 2.8.43
High Capacity Feeder
Reissue
REP 2.8.43 HCF Tray Empty/Stack Height Sensors
Parts List on PL 15.12
Removal
WARNING
To avoid electrical shock, switch-OFF the Main Power Switch and disconnect the Power
Cord.
1. Remove the HCF (REP 2.7.
5).
2. Remove the Tray Empty/Stack Height Sensor (Figu
re 1).

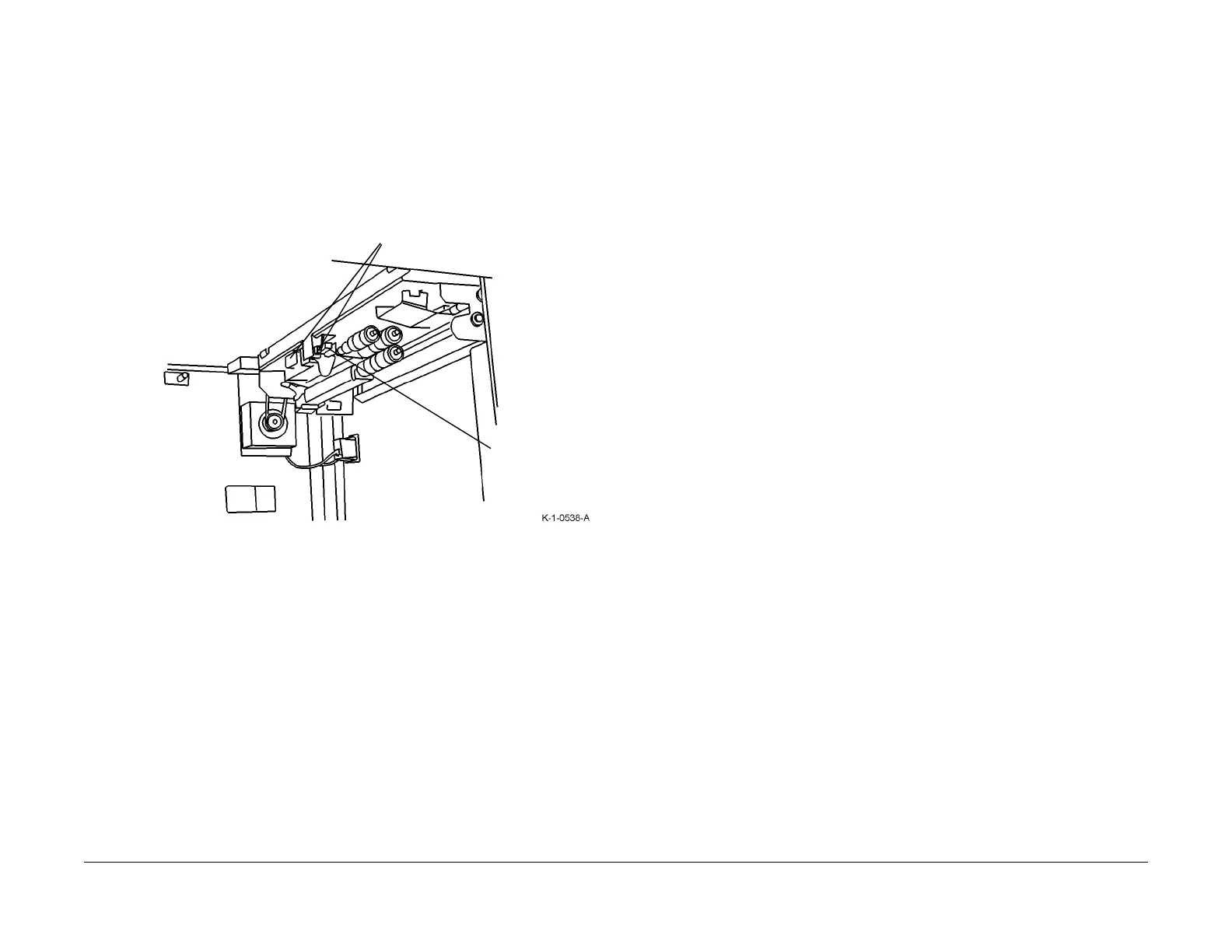

Figure 1 Removing the Sensor(s)
Replacement
1. Reverse the above procedures to replace the Sensor.
2. Remove the
Sensor (s)
1. Disconnect the connectors
