Xerox DocuColor 12/DCCS50 User Manual

1/05
5-300
DocuColor 12/DCCS50
PL 9.4
Reissue
Parts Lists

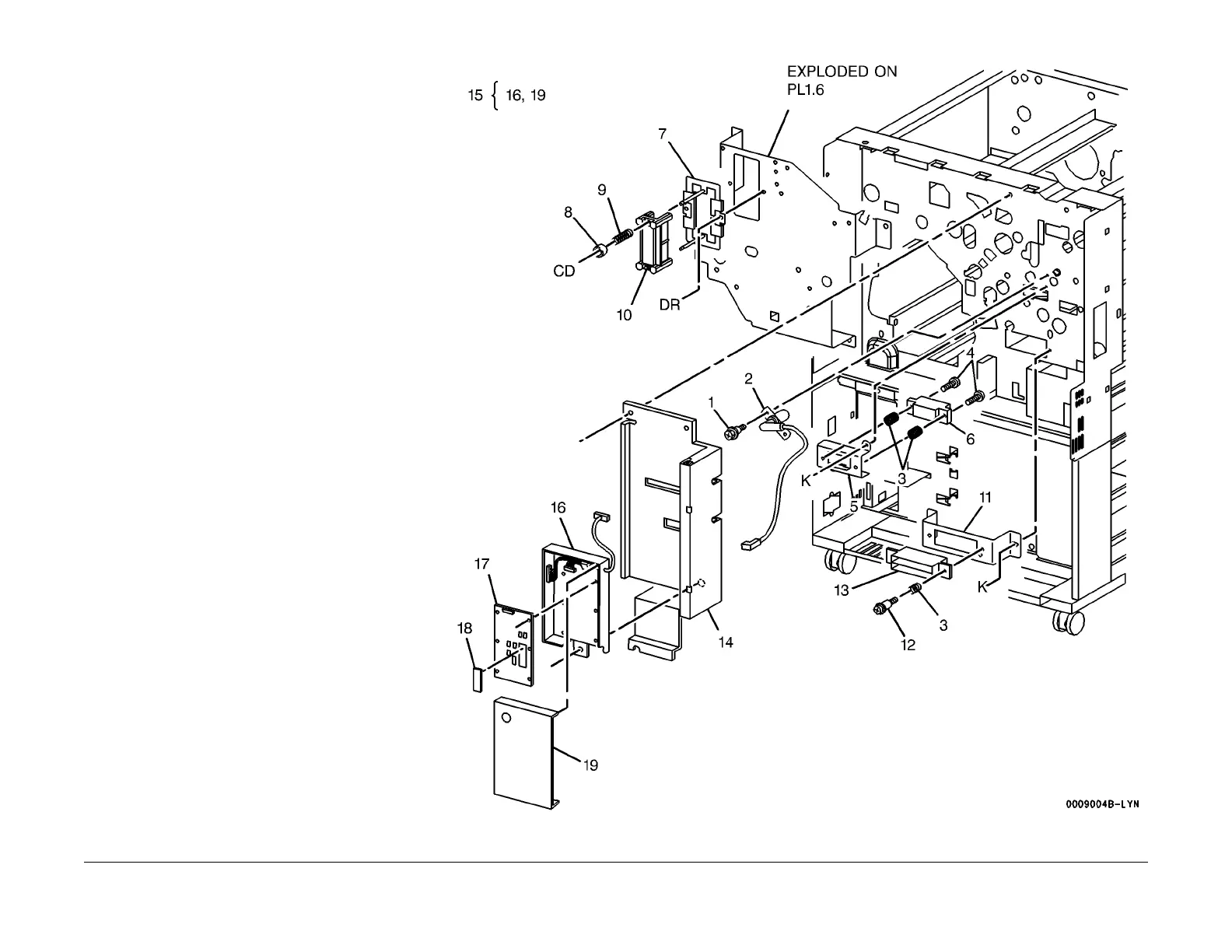

PL 9.4 Drawer Connectors
Item Part Description
1 – Screw (Not Spared)
2 – C/R Connector (Not Spared)
3 009E73310 Spring
4 – Screw (Not Spared)
5 – Connector Bracket (Not Spared)
6 – Connector Housing (P702 ) (Not
Sp
ar
ed)
7 – Connector Bracket (Not Spared)
8 – Collar (Not Spared)
9 009E81210 Spring
10 – Connector Housing (J700 ) (Not
Sp
ar
ed)
11 – Connector Bracket (Not Spared)
12 – Screw (Not Spared)
13 – Connector Housing (P701 ) (Not
Sp
ar
ed)
14 – Foreign Interface Bracket (Not
Sp
ar
ed)
15 101K24030 Foreign Interface Chassis Assem-
bly
16 – Foreign Interface Chassis (P/O PL
9.
4 It
em 15)
17 160K29150 A I/F PWB (Foreign Interface PWB)
– 160K80150 I/F PWB (Foreign Interface PWB)
18 537K49510 ROM (Coin Vend/Debit Card)
– 537K43720 ROM (External Auditron)
19 – Chassis Cover (P/O PL 9.4 Item
15)
