Xerox DocuColor 12/DCCS50 User Manual

1/05
4-164
DocuColor 12/DCCS50
REP 12.5.3
Reissue
Repairs and Adjustments
REP 12.5.3 Set Gate Solenoid
Parts List on PL 12.5
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Document Feed Lower Chute (REP 12.5.
1).
2. Remove the Set Gate Solenoid (Figure 1).
1.
Disconnect the connector.
2. Release the clamp and remove the wire.
3. Loosen the screws (2).
4. Remove the Set Gate Solenoid.

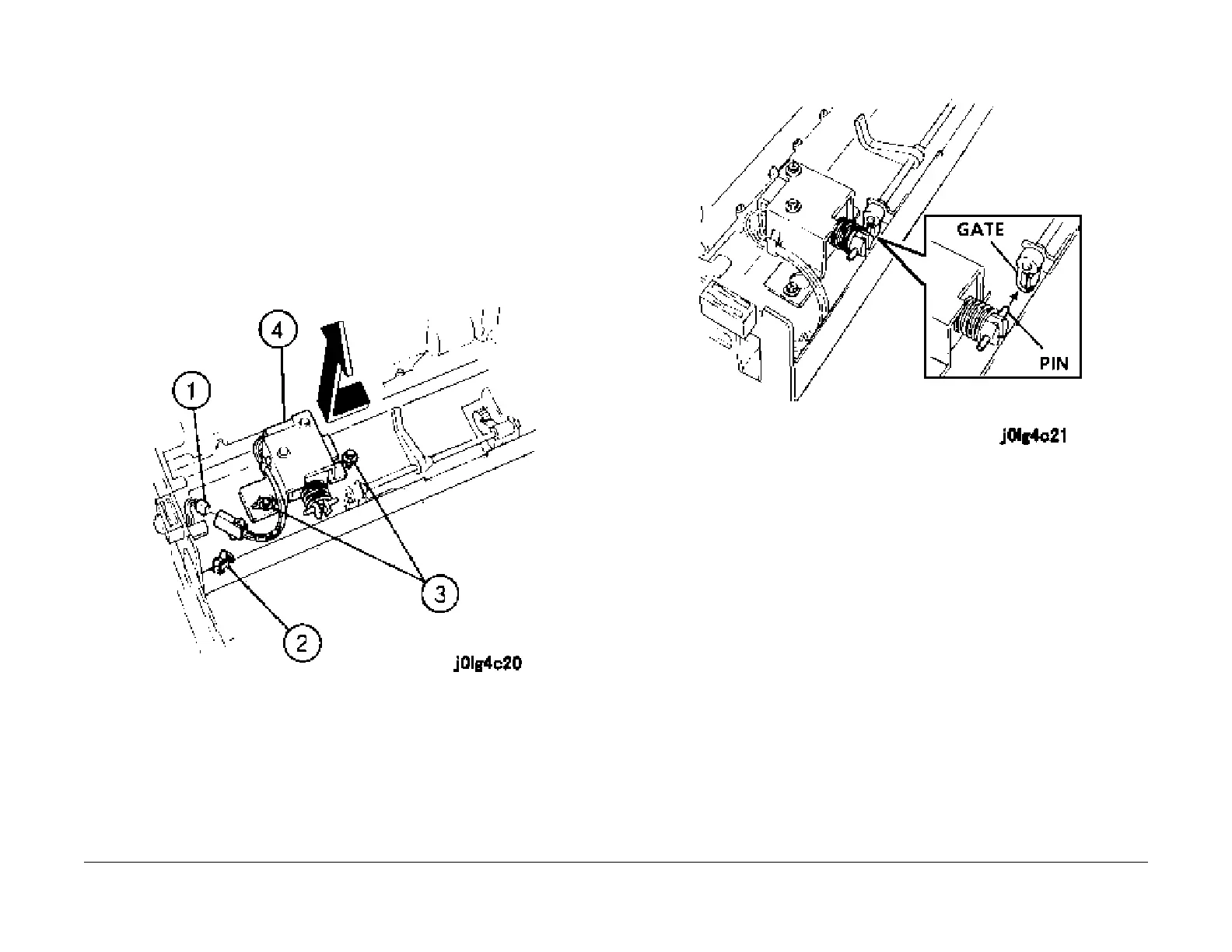

Figure 1 Remove the Set Gate Solenoid
Installation
1. Install the Set Gate Solenoid by inserting the pin into the gate (Figure 2).
Figure 2 Install the Set Gate Solenoid
2. Install and lock the Set Gate Solenoid by pressing it in the direction of the arrow (Fi
gu
re 3)
