1/05
5-251
DocuColor 12/DCCS50
PL 2.18
Parts Lists
Reissue

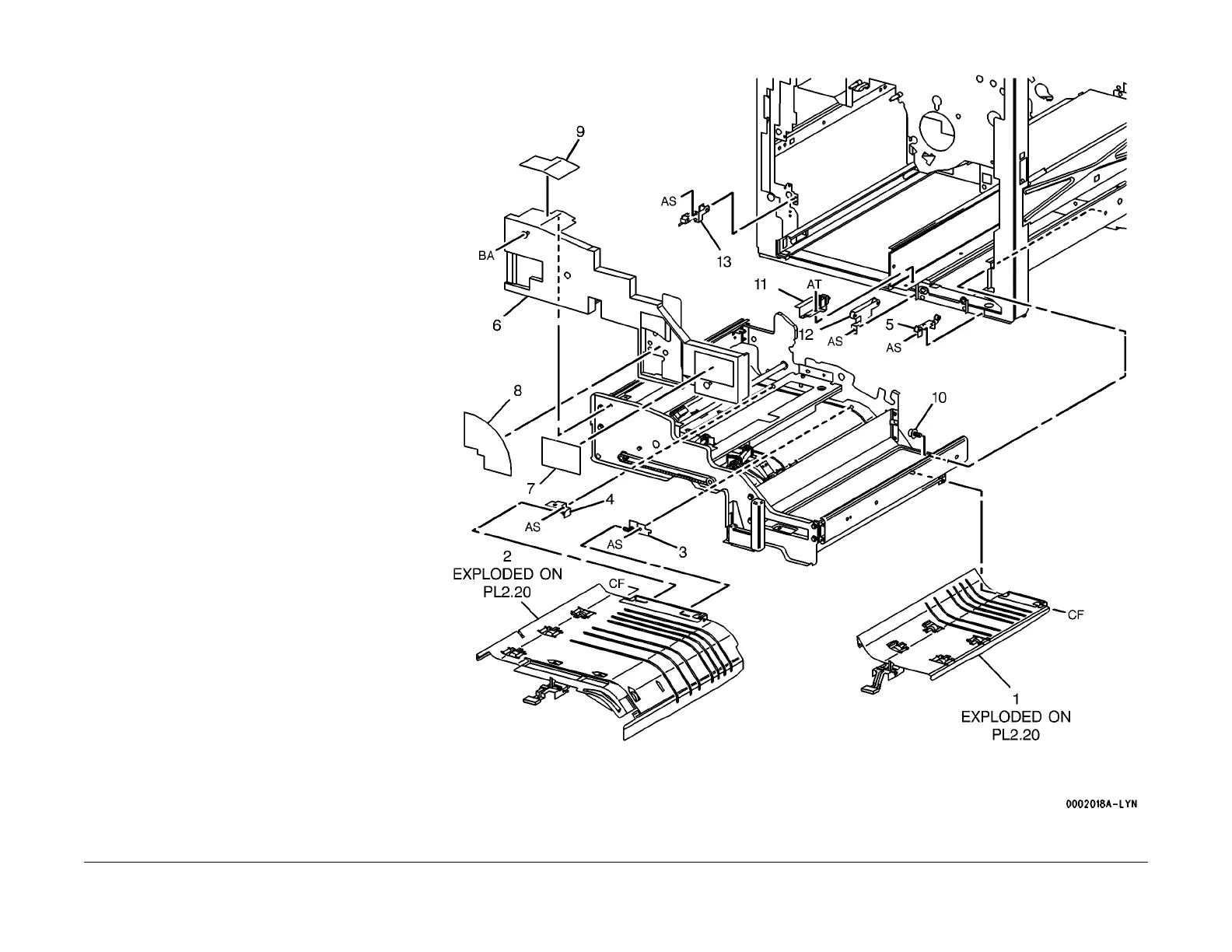

PL 2.18 Drawer Accessory, Duplex
Baffle
Item Part Description
1 054K11395 Duplex In Baffle Assembly
2 054K11416 Aligner Baffle Assembly (W/TAG
P3)
3 003K84760 Hinge
4 003K84750 Hinge
5 032K93621 Guide
6 – Drawer Cover (Not Spared)
7 891E51561 Label
8 891E51571 Label
9 891E74062 Label
10 – Screw (Not Spared)
11 015K33973 Drawer Interlock Switch
12 – Guide (Not Spared)
13 – Guide (Not Spared)
