Xerox DocuColor 12/DCCS50

1/05
5-326
DocuColor 12/DCCS50
PL 13.8
Reissue
Parts Lists

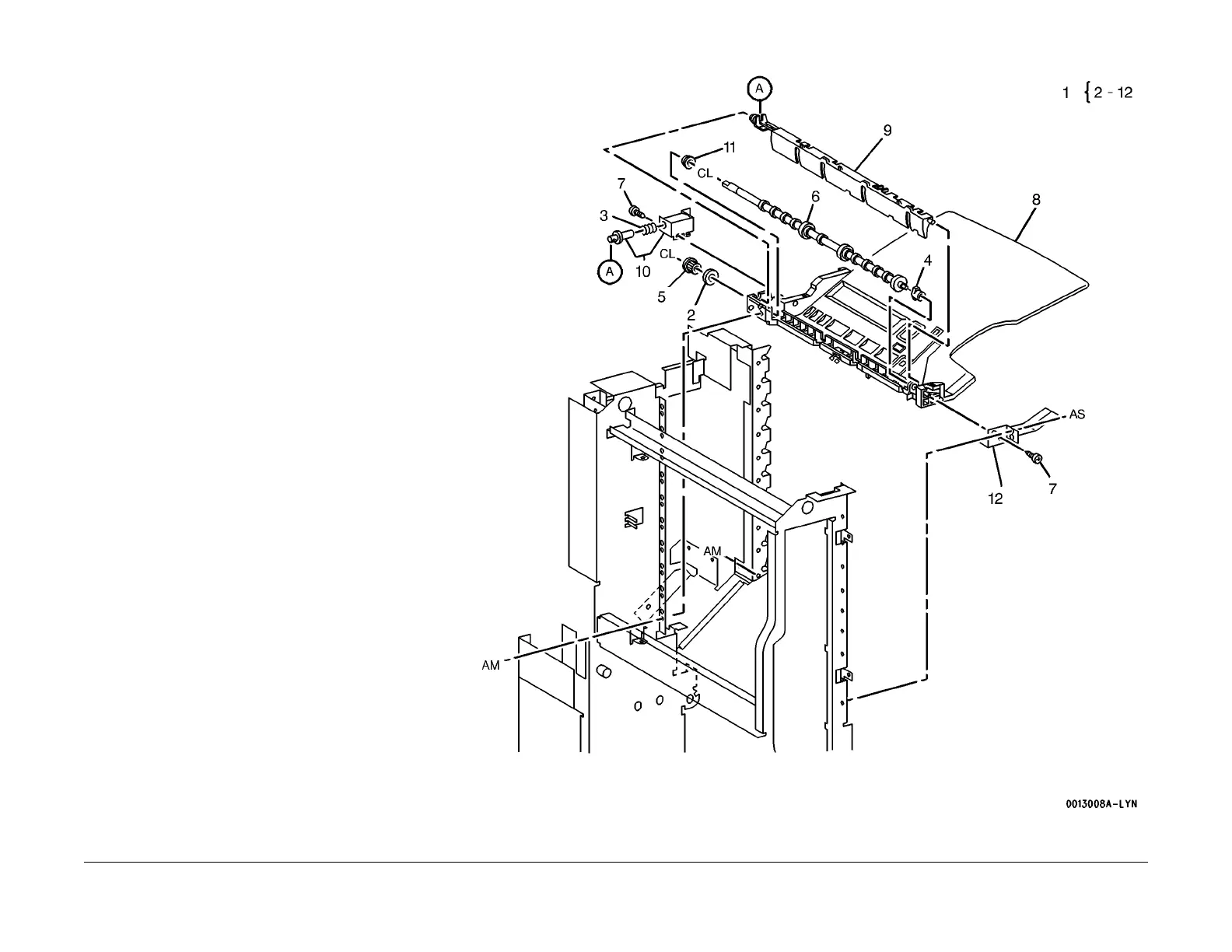

PL 13.8 Bin Tray 10
Item Part Description
1 050K36801 Bin Tray 10 Assembly (REP 13.6.1
)
2 005E83570 Collar
3 009E64140 Spring
4 013E89540 Bearing
5 020E21490 Pulley
6 022E83451 Roll
7 – Tapping Screw (M3 X 8) (P/O PL
13.
8 It
em 1)
8 050E88781 Bin Tray
9 050K33220 Gate
10 121E83120 Gate Solenoid
11 413W77559 Bearing
12 830E32600 Support
