Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-59
DocuColor 12/DCCS50
REP 15.1.1, REP 15.1.2
Finisher/Sorter
Reissue
REP 15.1.1 Decurler
Parts List on PL 18.4
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Decurler Door Assembly (REP 15.
3.4).
2. Remove the Decurler Rear Cover (REP 15.
3.13).
3. Remove the Decurler Inner Cover (REP 15.3.
14).
4. Remove the Decurler Top Cover (REP 15.
3.12).

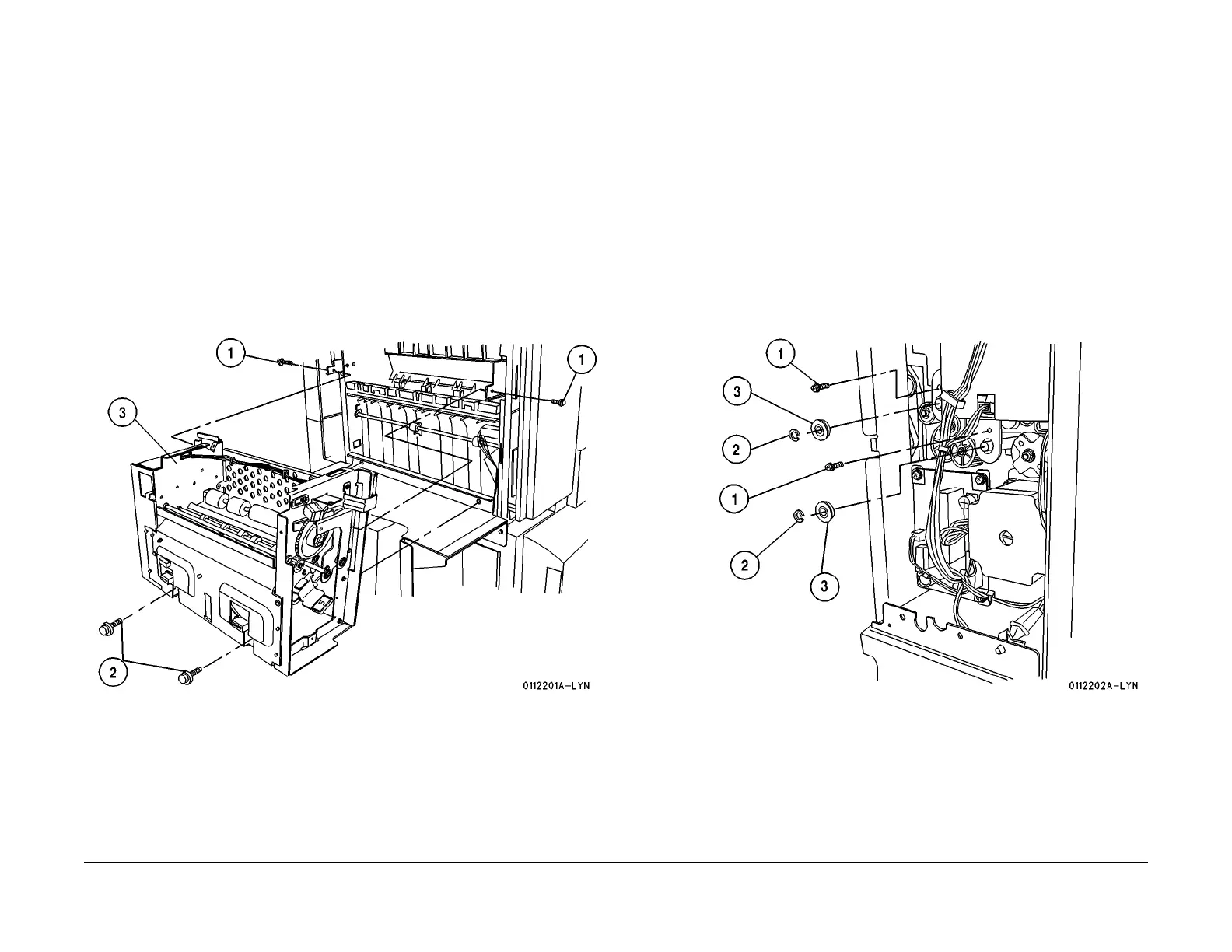

5. Remove the Decurler (Figu
re 1).
1. Remove the screws (2).
2. Remove the screws (2).
3. Remove the Decurler.
Figure 1 Remove the Decurler
Replacement
Reinstall the Decurler in the reverse order of disassembly.
REP 15.1.2 Decurler Rolls 1 and 2
Parts List on PL 18.7
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher Cable Connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Decurler Door Assembly (REP 15.3
.4).
2. Remove the Decurler Rear Cover (REP 15.3.
13).
3. Remove the Decurler Inner Cover (REP 15.3.
14).
4. Remove the Decurler Top Cover (REP 15.3.
12).
5. Remove the bearings (Figur
e 1).
1. Remove shouldered screws (2).
2. Remove the E-clips (2).
3. Remove the bearings (2).
Figure 1 Remove the Bearings
6. Remove the bearings (F
igur
e 2).
1. Remove the screws (2).
2. Remove the E-clips (2).
3. Remove the bearings (2).
