Xerox DocuColor 12/DCCS50

1/05
8d-60
DocuColor 12/DCCS50
REP 15.1.2
Reissue
Finisher/Sorter

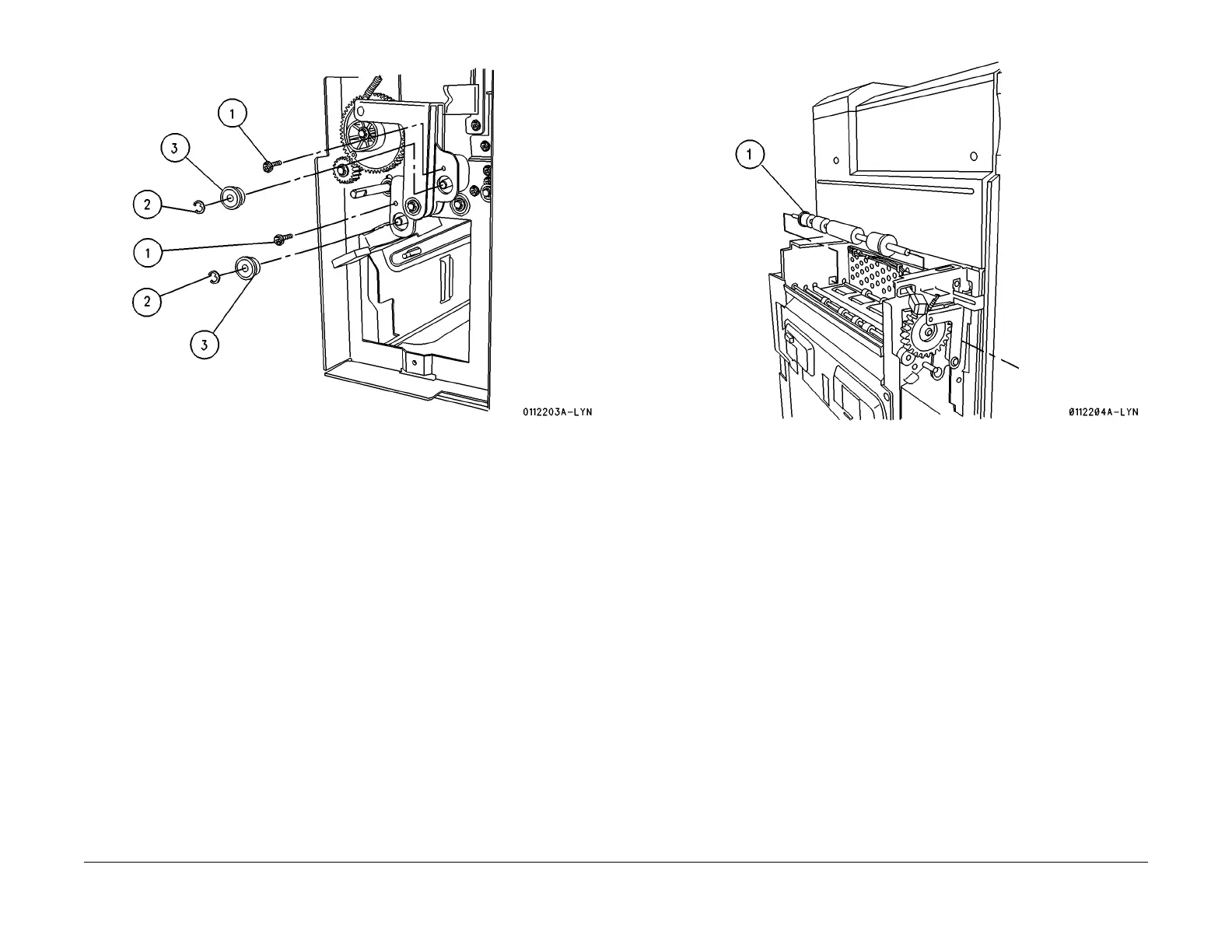

Figure 2 Remove the Bearings
7. Remove Decurler Roll 1 (Figure 3).
1.
Remove Decurler Roll 1.
Figure 3 Remove Decurler Roll 1
8. Remove Decurler Roll 2 (Figure 4).
1. Lower the baffle.
2. Remove Decurler Roll 2.
