Xerox DocuColor 12/DCCS50

1/05
8d-61
DocuColor 12/DCCS50
REP 15.1.2
Finisher/Sorter
Reissue

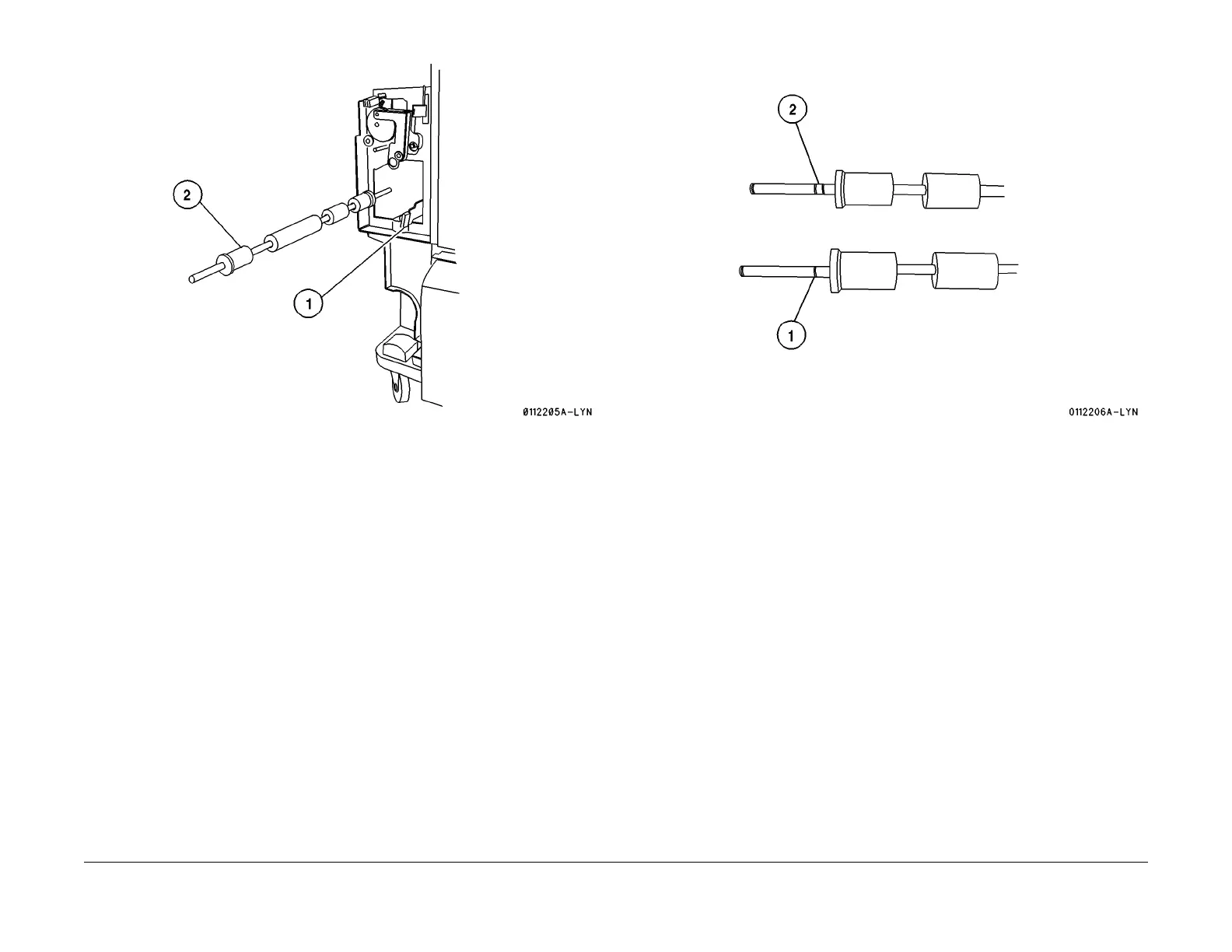

Figure 4 Remove Decurler Roll 2
Replacement
1. Install the Rolls with the marks towards the rear of the Finisher (Figure 5).
1. Roll 1 has one mark.
2. Roll 2 has two marks.
Figure 5 Install the Rolls
